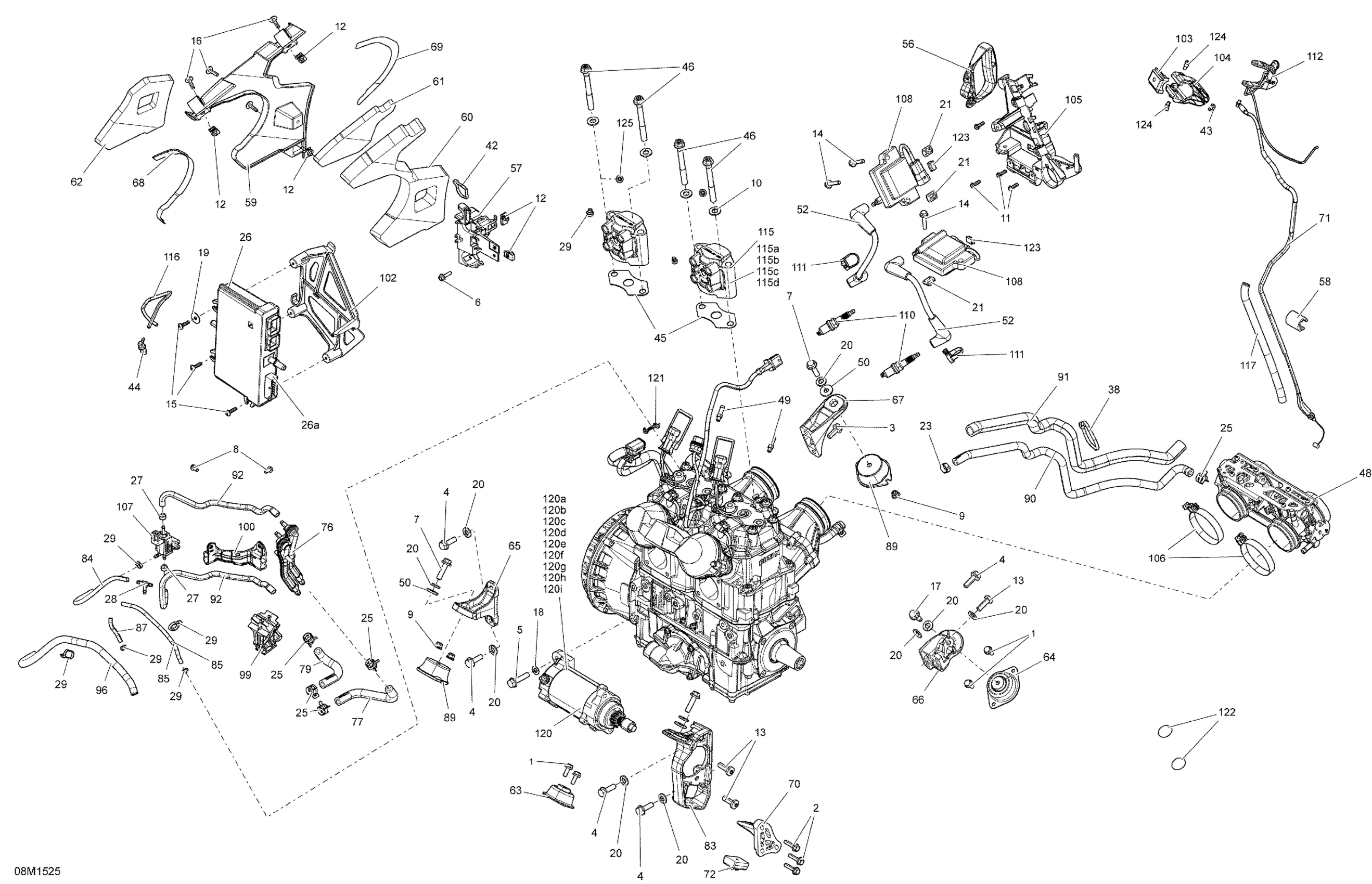

Ski-Doo GSX SE 800RETEC XR137, 2015 01- Engine _08M1525 Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

2

Hex. Flange Screw M6 X 25

207562544

$1.69

3

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

4

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

5

Hex Flange Screw M8 X 35, Scotch Grip

207583544

$4.44

6

Hex.Flange Screw M5 X 20

207652044

$1.90

7

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

8

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

Unavailable

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

10

Flat Washer 10 mm

234001410

$1.26

11

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

12

Panel Nut M5 X 0.8

250000958

$4.23

13

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.85

14

Hex. Flange Screw M6 X 1.0 X 30 | Not Shown

250000253

$2.22

15

Truss Head Torx Screw K50 X 20

250000297

$2.11

16

Torx Screw M5 X 20

250000528

$2.11

17

Hex. Flange Screw M8 X 1.25 X 25

250000796

$2.11

18

Flat Washer With Teflon 8 mm

250200008

$3.80

19

Flat Washer

250200040

$1.90

20

Conical Spring Washer M8

250200146

$1.01

21

Nut Welded, M6

293100003

$9.12

23

Oetiker Clamp

293650046

$2.89

25

Norma Spring Clamp

293650214

$15.89

26

Calibrated Module

512060756

$749.99

26a

Not Available As Spare Part - Friction Washer

Unavailable

27

Crimp Clamp

293650234

$5.39

28

T-Fitting

293710068

$8.29

29

Tie Wrap 94 mm | 4X4

293750001

$1.03

38

Tie Wrap 368 mm

293750008

$1.04

42

Tie-Rap 180 mm

414115200

$0.11

43

Circlip

414274500

$0.90

44

Male Connector

414814100

$2.22

45

Gasket

420430930

$4.99

46

Torx Flange Screw M10 X 90 -SW 13/T50

420441187

$19.99

48

Throttle Body

420889202

$1.00

49

Hose Nipple

420924724

$14.83

50

Yellow, Washer

503183200

$3.19

52

Ignition Cable, 177mm long

512061126

$28.49

56

Starter Grip

512060136

$14.83

57

Solenoid Support

512060298

$14.22

58

Protector

512060313

$10.33

59

NOISE SHIELD - Call your local BRP dealership

512060339

Unavailable

60

Interior Noise Foam

512060343

$20.99

61

Upper Exterior Noise Foam

512060344

$10.33

62

LOWER EXTERIOR NOISE FOAM - Call your local BRP dealership

512060362

Unavailable

63

Rubber Mount

512060387

$46.99

64

Rubber Mount

512060448

$51.99

65

Front Support, MAG

512060469

$31.99

66

Rear Support, PTO

512060478

$31.99

67

Rear Support, MAG

512060559

$31.99

68

Heat Shield

512060574

$7.79

69

Heat Shield

512060575

$8.59

70

Stopper Support

512060576

$29.49

71

Throttle Cable

512060611

$110.99

72

Stopper

512060627

$10.33

76

Manifold

512060692

$45.99

77

RH Formed Hose

512060694

$8.29

79

LH Formed Hose

512060695

$8.29

83

Front Support, PTO

512060714

$90.99

84

Was 420660574 Pressure Hose 280 mm

219704352

$224.99

85

Was 420660574 Pressure Hose 280 mm

219704352

$224.99

87

Was 420660574 Pressure Hose 280 mm

219704352

$224.99

89

Rubber Mount

512060729

$65.99

90

Formed Hose, Output

512060740

$31.99

91

Tubing 16 Mm 1000Mm Long

219704408

$7.49

92

Polyurethane Hose 10000Mm Long

219704410

$56.99

96

Was 409901700 Tubing (9 mm)

219704399

$84.99

99

Manifold Support

512060822

$11.60

100

Hose Support

512060827

$2.11

102

Calibrated Module Support

512060858

$14.22

103

Upper Housing

512060859

$8.89

104

Lower Housing

512060860

$17.53

105

Ignition Coils Support

512060888

$11.60

106

Gemi Clamp

512060943

$10.33

107

Solenoid Valve

270600005

$116.49

108

Ignition Coil

512060953

$132.49

110

Spark Plug NGK PFR7AB | 800-TEC This part replaces 512060553.

415129484

$30.49

111

Clamp

512060993

$5.39

112

Handle Ass'y

512061250

$124.99

115

Fuel Injector | Includes 13 to 16

512061054

$339.99

115a

Crush Ring

415129497

$7.99

115b

O-Ring

415129498

$13.49

115c

O-Ring

415129499

$7.39

115d

Fuel Injector Cover

415129942

$38.99

116

Was 415080100 Fuel Line Primer 3,2mm

219704409

$79.49

117

Was 409901700 Tubing (9 mm)

219704399

$84.99

120

Starter

515178473

$319.49

120a

Clutch Kit

415129441

$109.99

120b

Brush Kit

415129333

$62.99

120c

FLAT WASHER - Call your local BRP dealership

410204500

Unavailable

120d

Brush Kit

415129333

$62.99

120e

Brush Kit

410212100

$33.99

120f

Starter Bolt

415129341

$15.80

120g

O-Ring Kit This part replaces 278000696.

415129342

$14.24

120h

O-Ring Kit This part replaces 278000696.

415129342

$14.24

120i

O-Ring

278000695

$14.24

121

Locker

515177770

$2.21

122

Adhesive Patch

518325560

$4.69

123

Clip

710000992

$4.29

124

Flange Screw

732601143

$4.12

125

Push Nut

732610072

$2.19
