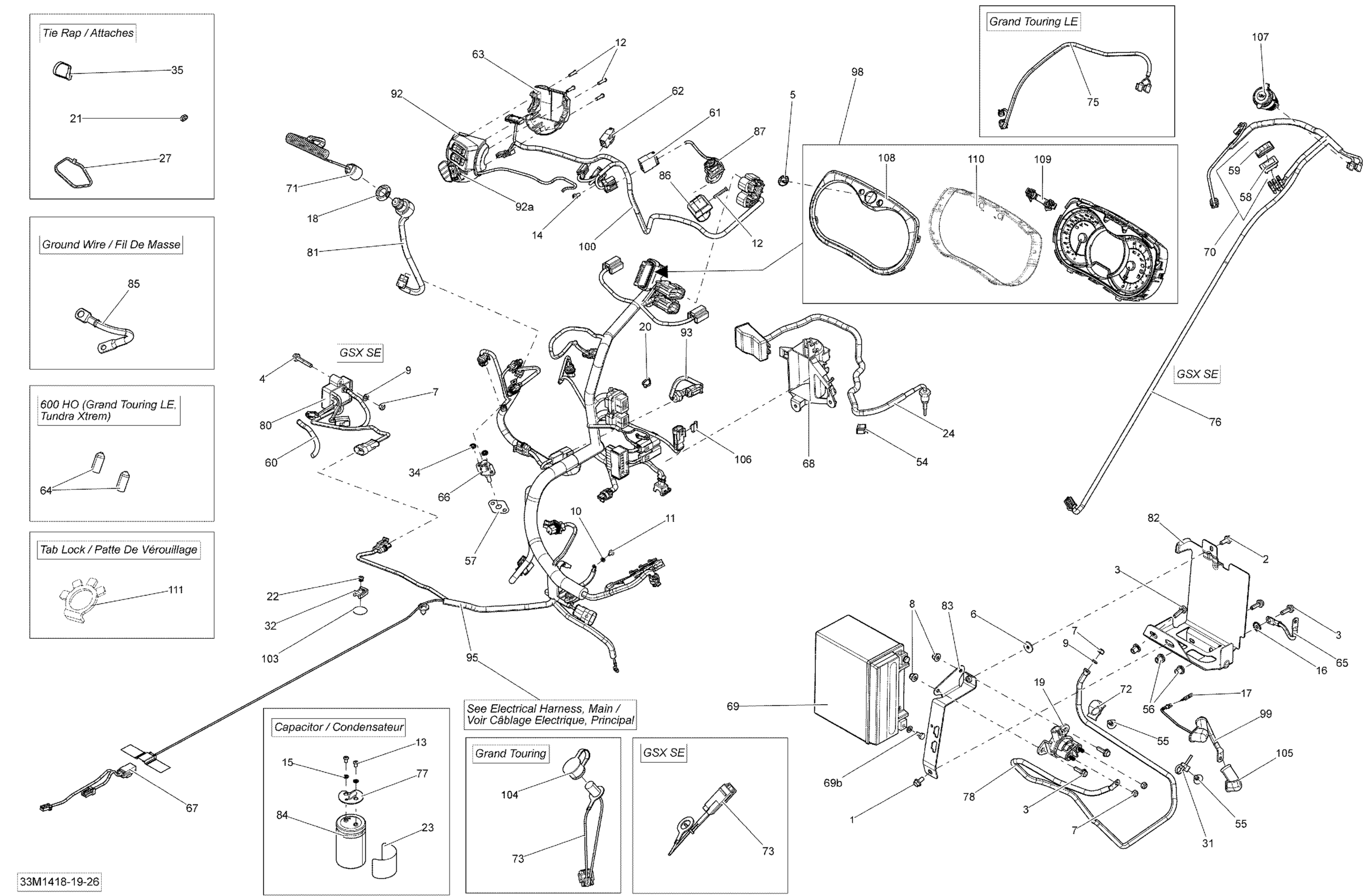

Ski-Doo GSX SE 800RE XR, 2014 10- Electrical System 800RETEC Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 12

207661244

$2.11

2

Hex. Flange Screw M6 X 16

207661644

$0.74

3

Hex. Flange Screw M6 X 20

207662044

$2.00

4

Hex. Flange Screw M6 X 35

207663544

$0.90

5

BRP Logo 20MM x 2MM | XTP

516006224

$13.99

6

Flat Washer

224061201

$1.37

7

Elastic Stop Nut M6

232561414

$0.55

8

Elastic Flange Nut M6 X 1.0

233261416

$2.11

9

Flat Washer 6 mm

234061410

$1.36

10

Lock Washer 4 mm

234141601

$1.15

11

Torx Screw M4 X 8

250000127

$1.15

12

Torx Screw #8-18

250000263

$1.04

13

Socket Head Screw M10 X 32

250000462

$2.11

14

Pan Screw Forming, 7500C

250000690

$2.11

15

Lock washer | Quest XT 650.

250200026

$1.90

16

Lock Washer Serrated M6

250200041

$1.15

17

Fuse, 25 Amperes

278001443

$3.28

18

Safety Nut (DESS Switch)

278002963

$3.28

19

Starter Relay

278003012

$42.49

20

Tie Wrap 94 mm | 4X4

293750001

$1.03

21

Tie Wrap 142 mm

293750002

$1.25

22

Avex Rivet

390909200

$0.30

23

Capacitor Decal

516006206

$1.19

24

Kit Module *Egts Module Kit Sing This part replaces 515177759.

415130000

$174.99

27

Tie Wrap 368 mm

293750008

$1.04

31

Tie-Rap 173 mm

293750009

$1.04

32

Tie Rap Mount (screwable)

515176795

$5.39

34

Push Nut

389804300

$0.53

35

Tie-Rap 180 mm

414115200

$0.11

54

Clip

414227300

$1.67

55

Black, Dart

414644300

$0.98

56

Insert

293450275

$12.99

57

Seal

508000769

$6.39

58

Rocker Switch

510004413

$8.79

59

Switch Protector

510004414

$7.99

60

Tubing 6 Mm 3000Mm Long

219704425

$13.75

61

Male Terminal Housing, 6 Circuits

515175662

$8.79

62

Male Terminal Housing, 4 Circuits

515175846

$8.79

63

Switch Housing Plate

515175926

$20.99

64

Not Available As Spare Parts

XXX

Unavailable

65

Ground Wire

515176358

$27.99

66

Air Temperature Sensor

515176366

$19.99

67

Not Available As Spare Parts

XXX

Unavailable

68

Capacitor Support

515176607

$20.99

69

Lead Battery 18 Amperes | Includes 4327 to 4327a

415129898

$164.99

69b

Battery Bolt Kit

250000282

$7.29

70

ROCKER SWITCH ASS'Y - Call your local BRP dealership | Includes 950 to 950,002

515176844

Unavailable

71

DESS

515178284

$84.99

72

Clip

515177066

$4.29

73

Visor Harness

515177837

$33.99

75

Not Available As Spare Parts

XXX

Unavailable

76

SEAT HARNESS - Call your local BRP dealership

515177189

Unavailable

77

Cap

515177193

$4.69

78

Battery/Starter Wire

515177208

$30.99

80

Compressor Module

515177234

$409.99

81

DESS Switch

515177249

$114.99

82

Battery Support

515177264

$31.99

83

Battery Strip

515177266

$19.99

84

Capacitor

515177272

$90.99

85

Ground Wire

515177289

$26.99

86

Emergency Stop Switch Support

515177310

$9.19

87

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

92

LH Switch Housing | Includes 86a

515177417

$249.99

92a

Start/RER Button

515176088

$20.99

93

Temperature Sensor This part replaces 420664508.

420664509

$149.99

95

WIRING HARNESS MAIN - Call your local BRP dealership

515177546

Unavailable

98

Speedometer | Includes 10 to 10c

515177910

$659.99

99

Fuse Battery Wire

515177576

$16.63

100

COMMODO HARNESS - Call your local BRP dealership

515177610

Unavailable

103

Not Available As Spare Parts

XXX

Unavailable

104

Cap

572103300

$10.49

105

Protector Cap

710000495

$10.99

106

Clip

710001038

$5.39

107

DC Outlet

710001248

$37.99

108

Gauge Ring

415129348

$13.99

109

Speedometer Button | XTP

415129355

$15.80

110

Lens | XTP

415129349

$24.49

111

Tab Lock

514055100

$8.45
