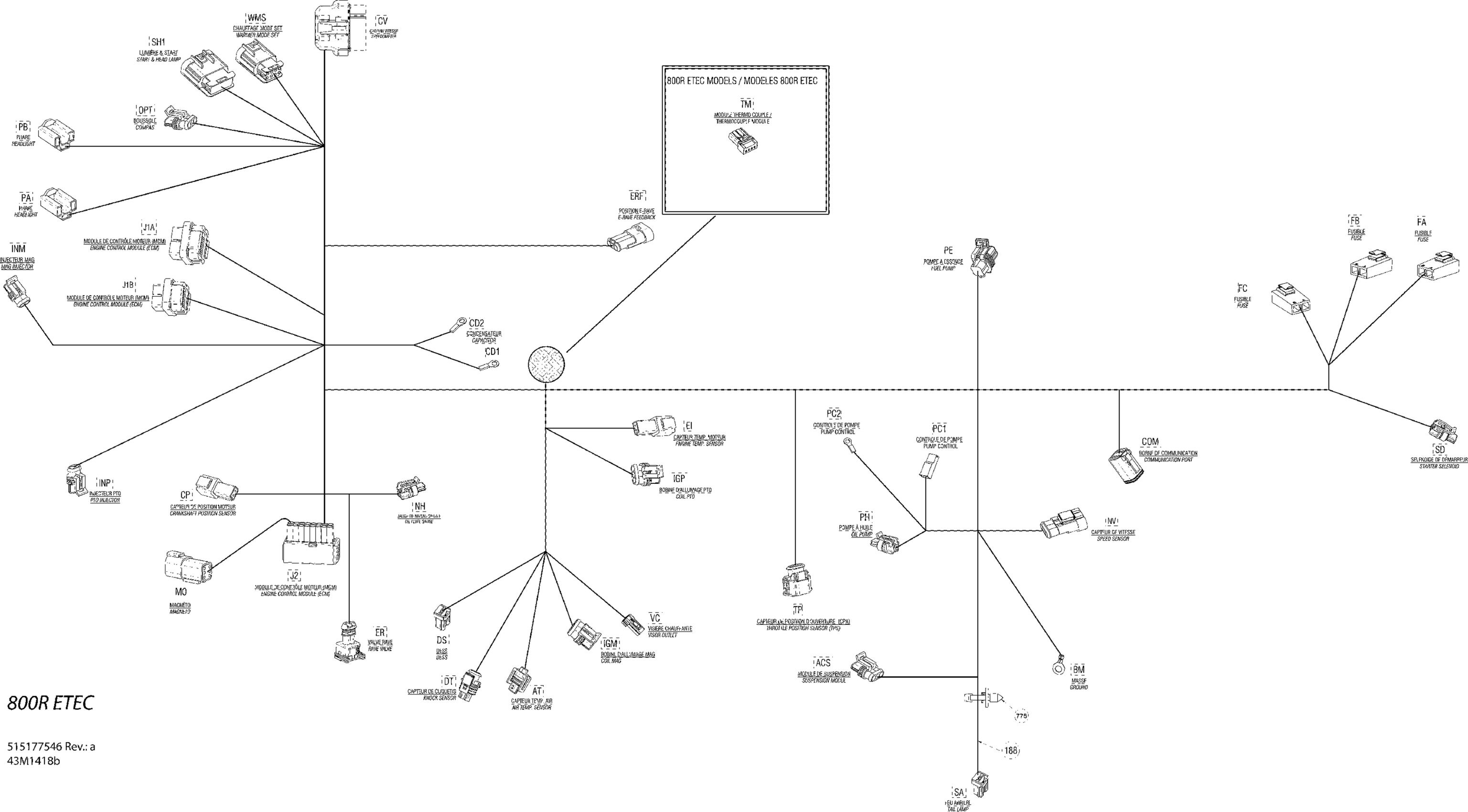

Ski-Doo GSX SE 800RE XR, 2014 10- Electrical Harness 800R ETEC Diagram

#

Description
Price

1

WIRING HARNESS MAIN - Call your local BRP dealership

515177546

Unavailable

188

Tubing 12 mm

409902000

Unavailable

775

Mount Dart

293730040

$1.04

ACS

Female Housing, 3 Circuits

409209600

$35.99

ACS

Wire Seal

278001013

$3.28

ACS

Wire Seal

515176621

$7.49

ACS

Female Terminal

710001340

$5.89

ACS

Female Terminal

278001014

$3.28

AT

Female Terminal Housing

515176890

$12.99

AT

Wire Seal

710001163

$7.69

AT

Female Terminal

710001164

$8.89

BM

Open Barrel

278000992

$2.21

CD1

Shrink Tubing, 6 mm

515177246

$1.04

CD1

Ring Terminal

515175504

$9.12

CD2

Shrink Tubing, 6 mm

515177246

$1.04

CD2

Ring Terminal

515175504

$9.12

COM

Housing, 6 Circuits

278002896

$14.99

COM

Male Wedge, 6 Circuits

515175678

$5.39

COM

Sealing Cap

293000052

$3.19

COM

Female Terminal

278001665

$4.55

CP

Male Housing, 2 Circuits

278002381

Unavailable

CP

Male Lock, 2 Circuits

409207500

$3.19

CP

Male Terminal

710001348

$12.99

CV

Female Housing, 24 Circuits

515175801

$9.59

CV

Retainer Block

515175802

$11.49

CV

Plug

515175812

$2.19

CV

Female Housing

710000399

$16.49

CV

Wire Seal

515175803

$2.99

CV

Female Terminal

515175806

$0.99

CV

Female Terminal

710001131

$8.89

DS

Female Housing, 3 Circuits

515175495

$16.18

DS

Female Terminal

515175231

$4.39

DT

Female Terminal Housing, 2 Circuits

278002520

$9.49

DT

Seal

415128501

$1.89

DT

Female Terminal

278000998

$4.39

EI

Male Housing, 2 Circuits

278002381

Unavailable

EI

Male Lock, 2 Circuits

409207500

$3.19

EI

Male Terminal

710001348

$12.99

ER

Female Terminal Housing, 2 Circuits

415128500

$7.62

ER

Seal

415128501

$1.89

ER

Female Terminal

278000998

$4.39

ERF

Housing

710000568

$11.12

ERF

Wire Seal

515176621

$7.49

ERF

Male Terminal

515176164

$7.16

FA

Clip

710000992

$4.29

FA

Fuse Holder

409004000

$8.09

FA

Female Terminal

409004200

$4.55

FB

Clip

710000992

$4.29

FB

Fuse, 5 Amperes | CE

278000344

$3.28

FB

Fuse Holder

409004000

$8.09

FB

Female Terminal

409004200

$4.55

FB

Female Terminal

409011600

$5.39

FC

Clip

710000992

$4.29

FC

Fuse, 15 Amperes

278000343

$3.28

FC

Fuse Holder

409004000

$8.09

FC

Female Terminal

409004200

$4.55

IGM

Female Housing, 3 Circuits

409209600

$35.99

IGM

Wire Seal

278001013

$3.28

IGM

Wire Seal

515176621

$7.49

IGM

Female Terminal

278001014

$3.28

IGM

Female Terminal

710001340

$5.89

IGP

Female Housing, 3 Circuits

409209600

$35.99

IGP

Wire Seal

278001013

$3.28

IGP

Wire Seal

515176621

$7.49

IGP

Female Terminal

278001014

$3.28

IGP

Female Terminal

710001340

$5.89

INM

Female Housing, 2 Circuits

409209500

$15.27

INM

Wire Seal

278001013

$3.28

INM

Female Terminal

278001014

$3.28

INP

Female Housing, 2 Circuits

409209500

$15.27

INP

Wire Seal

278001013

$3.28

INP

Female Terminal

278001014

$3.28

J1A

Female Terminal Housing, 34 Circuits

515176342

$21.99

J1A

Plug

515175812

$2.19

J1A

Female Terminal

515176541

$4.55

J1A

Female Terminal

515176348

$6.99

J1B

Female Terminal Housing, 26 Circuits

515176341

$29.49

J1B

Plug

515175812

$2.19

J1B

Female Terminal

515176348

$6.99

J1B

Female Terminal

515176541

$4.55

J2

Female Terminal Housing, 16 Circuits

515176340

$15.80

J2

Seal

415128501

$1.89

J2

Wire Seal

278000999

$3.19

J2

Female Terminal

278000998

$4.39

MO

Male Terminal Housing, 6 Circuits

515175668

$16.49

MO

Female Lock, 6 Circuits

278000735

$3.19

MO

Male Terminal

278000631

$4.39

NH

Female Housing, 2 Circuits

515177192

$9.12

NH

Wire Seal

710001163

$7.69

NH

Female Terminal

710001164

$8.89

NV

Clip

710000992

$4.29

NV

Housing

710000568

$11.12

NV

Wire Seal

515176621

$7.49

NV

Male Terminal

515176164

$7.16

OPT

Female Housing, 3 Circuits

409209600

$35.99

OPT

Wire Seal

515176621

$7.49

OPT

Female Terminal

710001340

$5.89

PA

Female Housing

515176908

$13.99

PA

Terminal

515176909

$2.21

PB

Female Housing

515176908

$13.99

PB

Terminal

515176909

$2.21

PC1

Female Terminal Housing, 1 Circuit

409010400

$7.62

PC1

Female Terminal

409010100

$5.61

PC2

Shrink Tubing, 6 mm

515177246

$1.04

PC2

Ring Terminal

515175504

$9.12

PE

Housing

710001132

$9.85

PE

Lock

710001133

$4.39

PE

Seal

278001482

$3.19

PE

Female Terminal

278001481

$3.49

PH

Female Housing, 2 Circuits

515177192

$9.12

PH

Seal Wire

710001332

$3.28

PH

Terminal

710000925

$3.19

SA

Female Housing, 3 Circuits

515175495

$16.18

SA

Female Terminal

515175231

$4.39

SD

Female Housing, 2 Circuits

515177192

$9.12

SD

Seal Wire

710001332

$3.28

SD

Terminal

710000925

$3.19

SH1

Housing, Packard

710001929

$11.12

SH1

Seal Wire

710001332

$3.28

SH1

Seal

710001233

$3.19

SH1

Terminal

710001224

$3.19

SH1

Terminal

710001223

$3.19

TM

Female Terminal Housing, 4 Circuit

515177048

$10.99

TM

Lock, 4 Circuits

515177051

$10.49

TM

Seal

515177050

$7.86

TM

Female Terminal

515177049

$5.61

TP

Female Terminal Housing, 3 Circuits

278002521

$9.85

TP

Seal

415128501

$1.89

TP

Female Terminal

278000998

$4.39

VC

Female Housing, 2 Circuits

515175658

$16.18

VC

Female Terminal

515175231

$4.39

WMS

Housing

710001927

$8.79

WMS

Seal

710001233

$3.19

WMS

Seal Wire

710001332

$3.28

WMS

Terminal

710001224

$3.19

WMS

Terminal

710001223

$3.19
