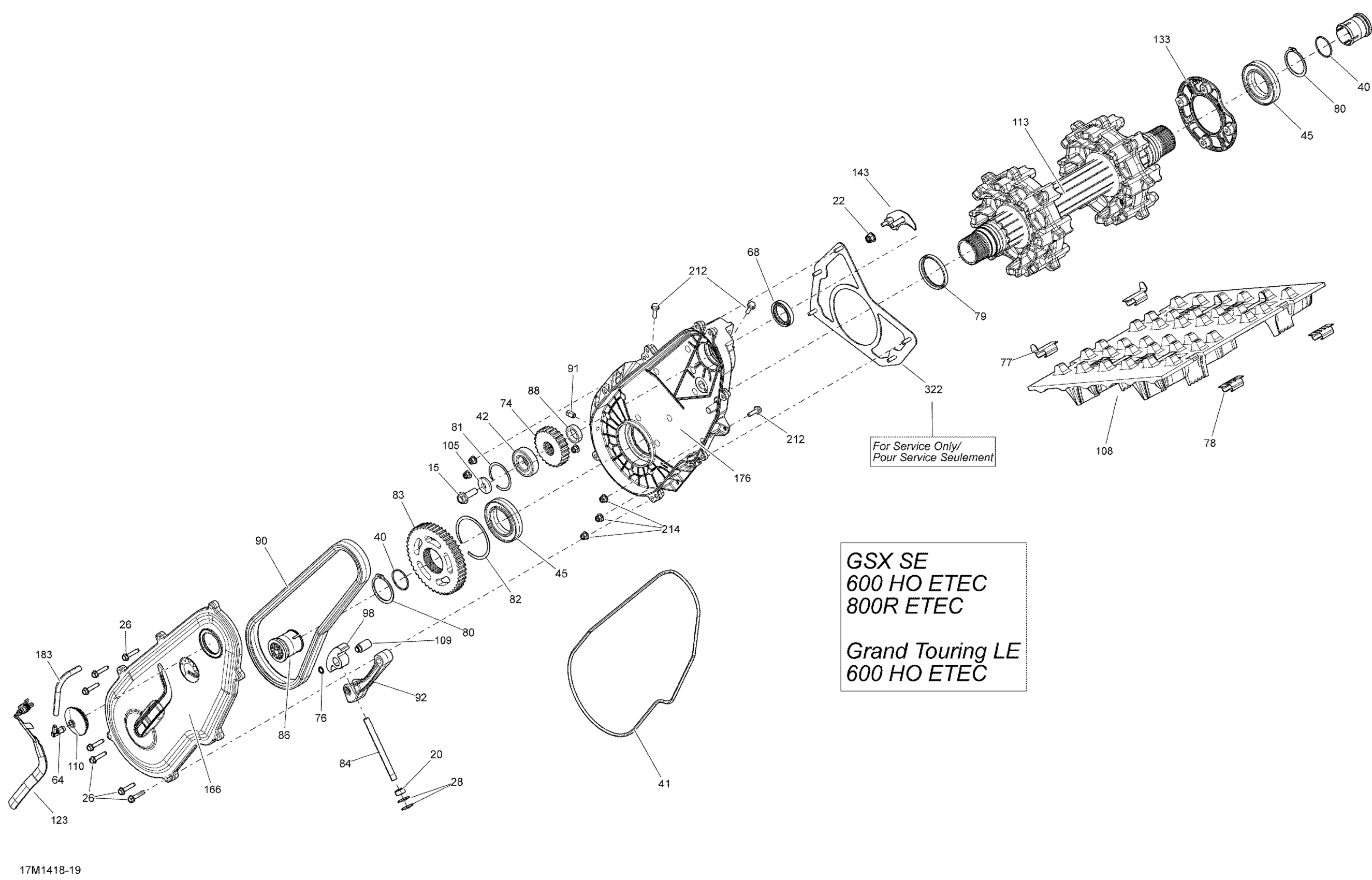

Ski-Doo GSX SE 800RE XR, 2014 Drive System 800R ETEC Diagram

#

Description
Price

15

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.82

20

Hex. Nut M10 X 1.5

232006414

$1.27

22

Hex. Flange Elastic Nut M8

233281414

$1.31

26

Hex. Flange Screw M6 X 30 | International

210263050

$1.87

28

Bonded Washer

250200100

$2.00

40

O-Ring

293300122

$2.00

41

Tight Seal

293300130

$7.09

42

Ball Bearing

293350115

$10.82

45

Ball Bearing

293350059

$29.82

64

Male Connector

414580700

$3.88

68

Oil Seal

293200158

$12.15

74

Sprocket 27 Teeth

504153913

$45.49

76

Circlip

504152282

$3.01

77

Track Guide | Track Width 16''

415129528

$3.03

78

Cleat

504152651

$7.97

79

Oil Seal

293200159

$12.73

80

Circlip

504152572

$6.07

81

Circlip

504152576

$8.45

82

Circlip

504152582

$8.45

83

Kit Sprocket This part replaces 504152593.

861805538

$148.48

84

Adjustment Screw

504152602

$9.33

86

Magnetic Cap

504152619

$22.36

87

Magnetic Cap

504152619

$22.36

88

Shim

504152628

$8.15

90

Drive Chain, 106 Links

504152630

$168.63

91

Magnetic Plug 1/8 - 27 NPTF

504152854

$8.69

92

Tensioner chain

504153429

$13.36

98

Slider Chain

504152739

$65.64

105

Spring Washer M10

504152784

$6.07

108

Track Ass'Y 15X137X1.2 | Includes 3200 to 3200b

504152905

$929.99

109

Tensioner Axle

504152841

$14.21

110

Cap

504152860

$18.63

113

Drive Axle Ass'y

504154054

$492.51

123

Rotation Sensor

504152896

$34.30

133

Retaining Ring

504153886

$17.88

143

Bearing Housing Ass'y | Includes 2500 to 2500a

504153418

$16.39

166

Chaincase Cover Ass'y | Includes 1700 to 1700c

504153410

$314.90

176

Chaincase | Includes 10 to 10a

504153405

$311.91

183

Polyurethane Hose 10000Mm Long

219704410

$52.96

212

Hex. Flange Screw M6 X 20

207662034

$2.00

214

Flange Elastic Nut M6

233261434

$4.15

322

Plate | Not Shown

518325816

$71.61
