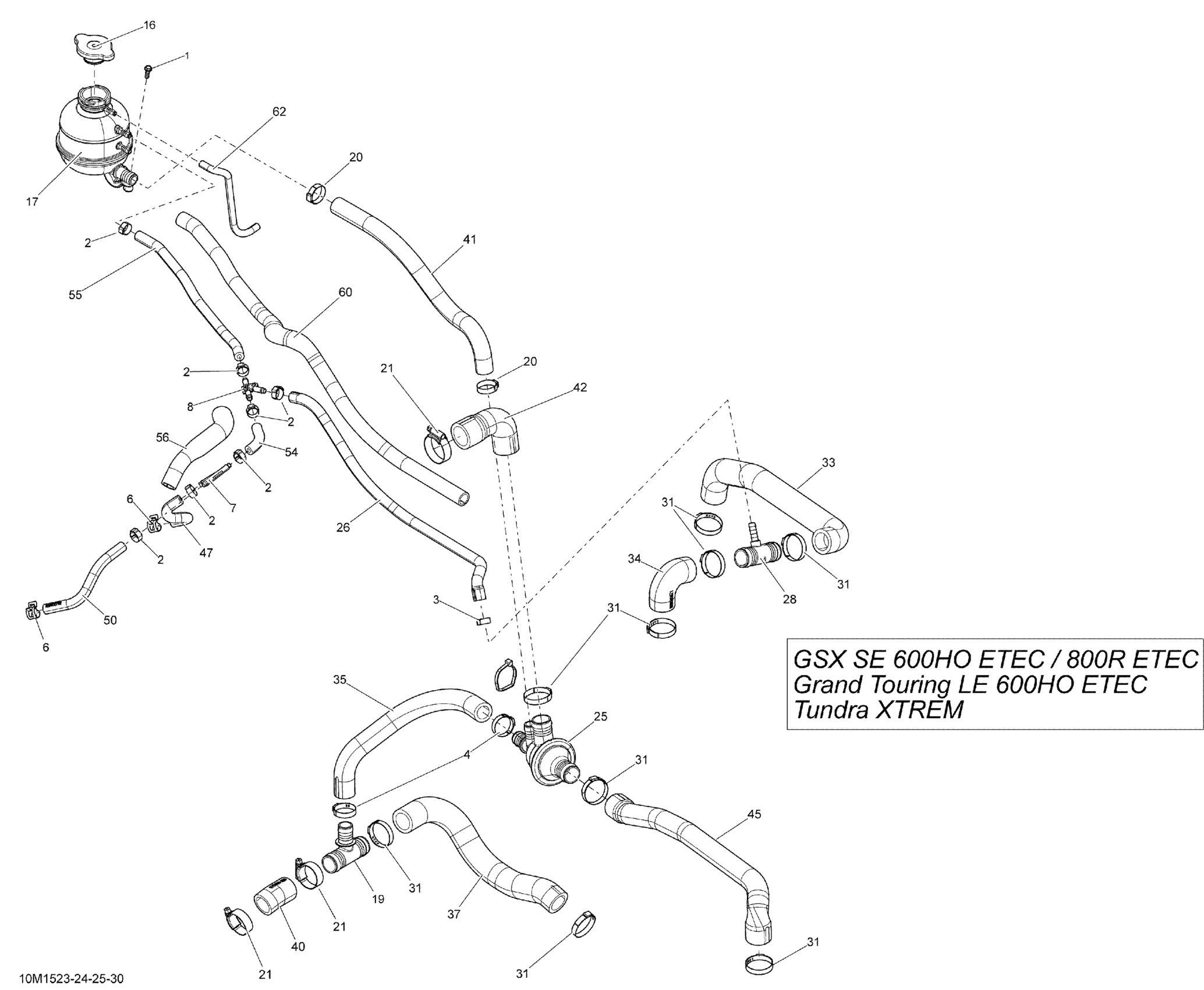

Ski-Doo GSX SE 600HOETEC XR137, 2015 Cooling System _10M1523 Diagram

#

Description
Price

1

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

2

Oetiker Clamp

293650046

$2.33

3

Crimp Clamp, 15.3-706R

293650047

$2.64

4

Crimp Clamp

293650099

$3.55

6

Spring Clamp

293650210

$5.22

7

Y-Fitting

293710059

$8.19

8

Y-Fitting

293710140

$7.31

16

Radiator Pressure Cap

509000180

$11.69

17

Coolant Tank

509000368

$86.89

19

T-Fitting

509000372

$7.87

20

Oeticker Gear Clamp, 25.6-706R

509000442

$4.12

21

Aba Gear Clamp, 26-38 MM

509000443

$5.68

25

Thermostat Housing

509000499

$39.97

26

Bleeder Hose

509000502

$23.82

28

T-Fitting

509000510

$11.52

31

Oetiker Gear Clamp, 36.5-706R

509000529

$8.20

33

Radiator Hose

509000670

$34.58

34

Radiator Hose This part replaces 509000671.

509001066

$18.43

35

Bypass Hose

509000672

$24.58

37

Radiator Hose

509000673

$22.28

40

Engine Inlet Hose This part replaces 509000675.

509001067

$16.89

41

Filling Hose

509000676

$23.82

42

Engine Outlet Hose

509000678

$18.43

45

Thermostat Outlet Hose

509000679

$25.35

47

Bleeder Hose

509000768

$9.86

50

Bleeder Hose

509000769

$10.78

54

Was 415129508 Bleeder Hose

219704416

$11.83

55

Was 415129508 Bleeder Hose

219704416

$11.83

56

Protector Tube, 16 mm

513033231

$11.12

60

Tubing 16 Mm 1000Mm Long

219704408

$6.23

62

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$117.66
