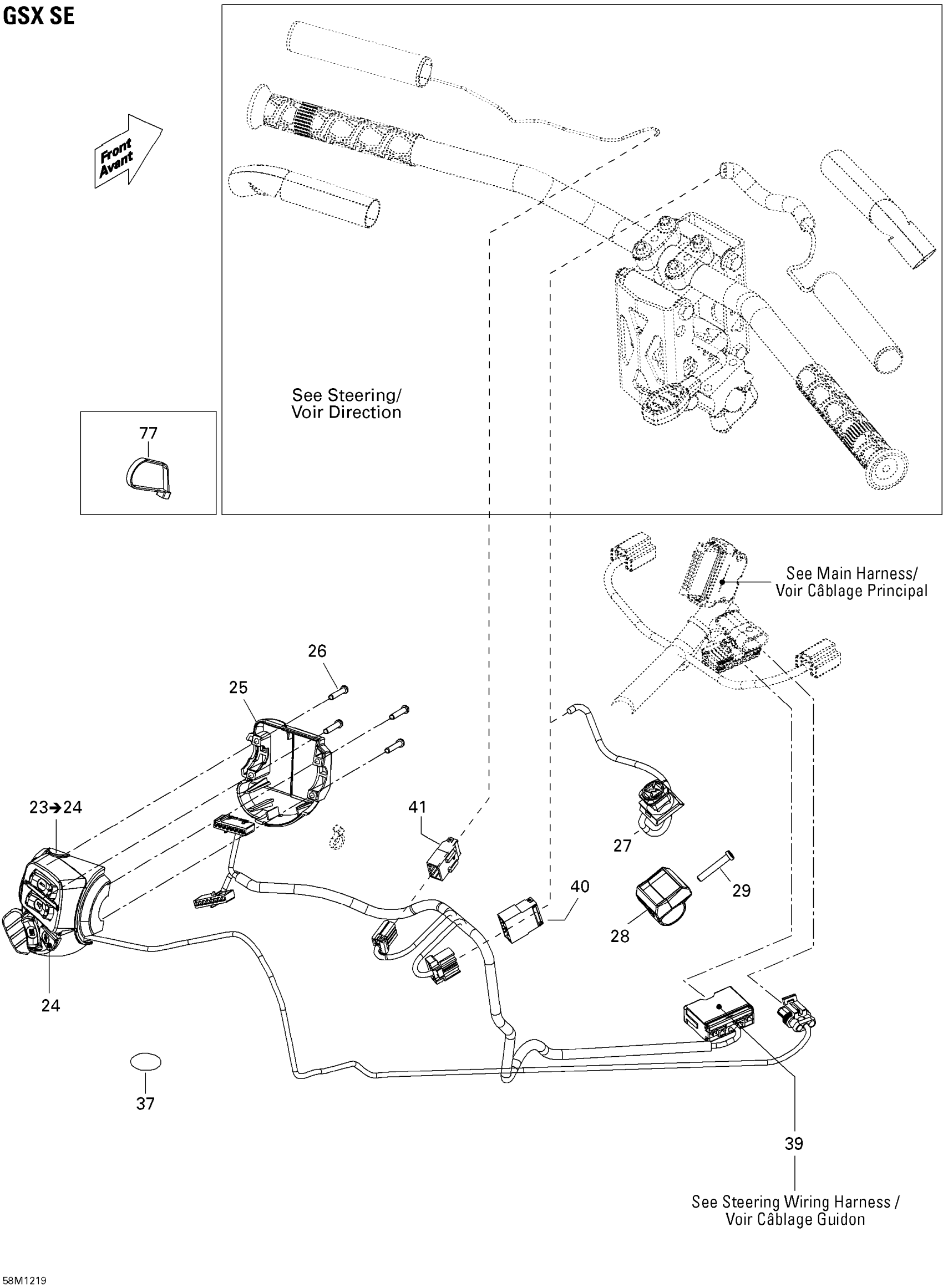

Ski-Doo GSX SE 600HOETEC, 2012 Electrical Accessories, Steering Diagram

#

Description

Price

23

LH Switch Housing | Includes 1 to 2

515177509

$241.76

24

Start/RER Button

515176088

$17.88

25

Switch Housing Plate

515175926

$17.13

26

Torx Screw #8-18

250000263

$0.99

27

Emergency Stop Switch | Includes 91 to 91a

515177362

$82.06

28

Kill Switch Support

515176825

$8.34

29

Torx Screw #8-18

250000263

$0.99

37

Not Available As Spare Parts

XXX

Unavailable

39

STEERING WIRING HARNESS ASS'Y - Call your local BRP dealership

515176868

Unavailable

40

Male Terminal Housing, 6 Circuits

515175662

$8.31

41

Male Terminal Housing, 4 Circuits

515175846

$8.31

77

Tie-Rap 180 mm

414115200

$0.10

77

Tie Wrap 142 mm

293750002

$1.01

77

Tie Wrap 368 mm

293750008

$0.97

77

Tie-Rap 173 mm

293750009

$0.97
