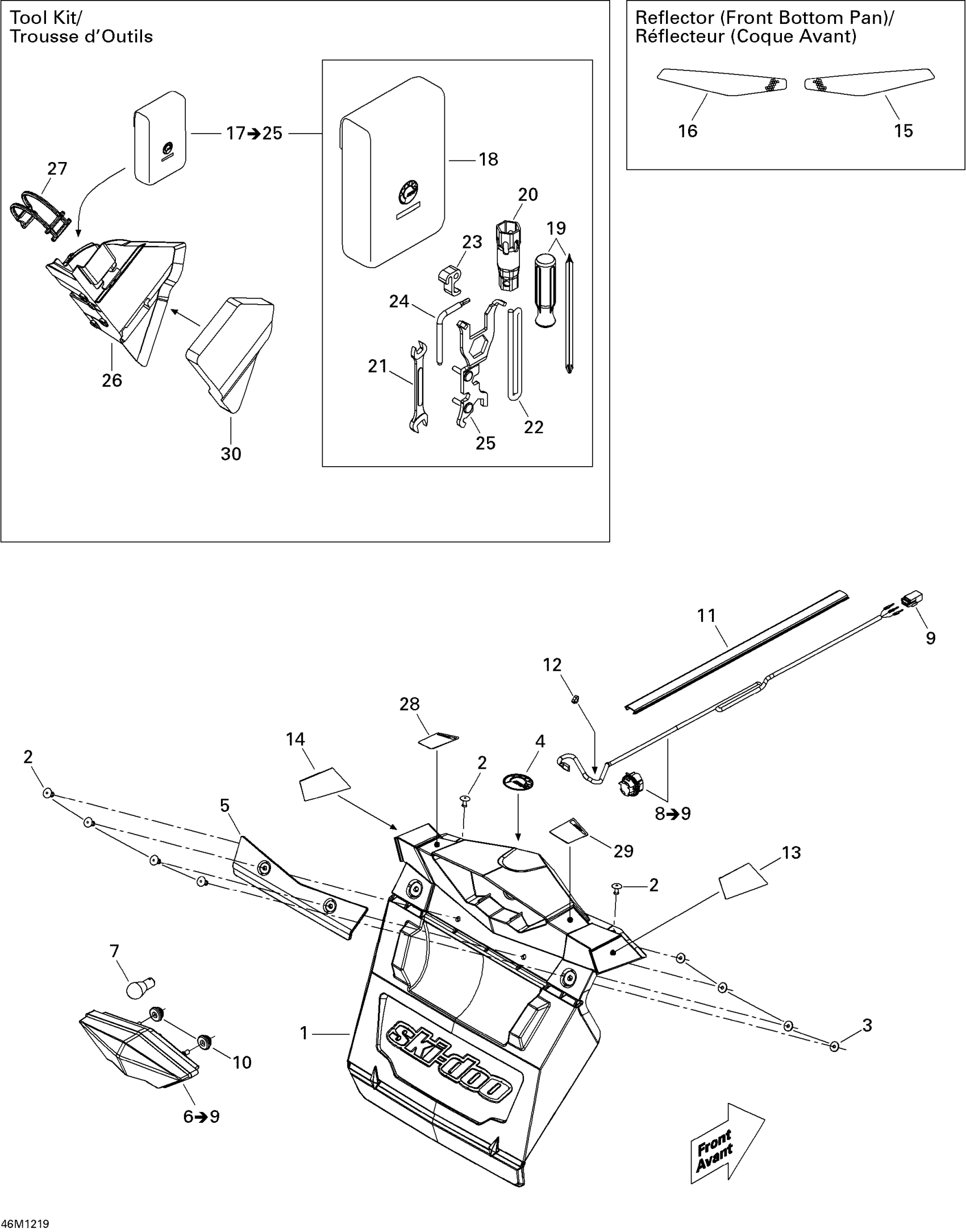

Ski-Doo GSX SE 600HOETEC, 2012 Utilities Diagram

#

Description
Price

1

SNOW GUARD - Call your local BRP dealership | GSX SE

520001034

Unavailable

1

SNOW GUARD - Call your local BRP dealership | Red-Red Model

520001035

Unavailable

2

Pop Rivet 3/16”

293150108

$1.19

3

Washer

517124300

$0.18

4

BRP Logo 48 mm

219903305

$16.39

5

Reinforcement

520000751

$17.13

6

Rear Light Ass'y

520000679

$100.72

7

Bulb

520000758

$8.60

8

WIRING HARNESS ASS'Y - Call your local BRP dealership

520000680

Unavailable

9

Male Housing, 3 Circuits

515175494

$14.90

10

Stopper Rubber

705014429

$6.09

11

Radiator Trim

520000829

$20.12

12

Tie Wrap 142 mm

293750002

$1.01

13

Red, RH Rear Reflector

520001162

$15.64

14

Red, LH Rear Reflector

520001161

$15.64

15

RH FRONT REFLECTOR - Call your local BRP dealership

520000759

Unavailable

16

LH FRONT REFLECTOR - Call your local BRP dealership

520000760

Unavailable

17

Tool Kit | Includes 20 To 28

529000065

$57.99

18

Not Available As Spare Part - Friction Washer

Unavailable

19

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

FORK WRENCH, 10/13 MM - Call your local BRP dealership

529000002

Unavailable

22

Was 412500100 Rope-Starter

219704403

$9.85

23

Starter Grip

529000060

$11.06

24

Spacing Tool

520001142

$10.99

25

WRENCH SUSPENSION - Call your local BRP dealership

520000988

Unavailable

26

TOOL KIT RACK - Call your local BRP dealership | Model-LE & SE

520000720

Unavailable

27

Latch

520000528

$6.40

28

WARNING DECAL, SAFETY - Call your local BRP dealership

516005057

Unavailable

29

Warning Decal, Safety

516005058

Unavailable

30

FOAM - Call your local BRP dealership

520001060

Unavailable
