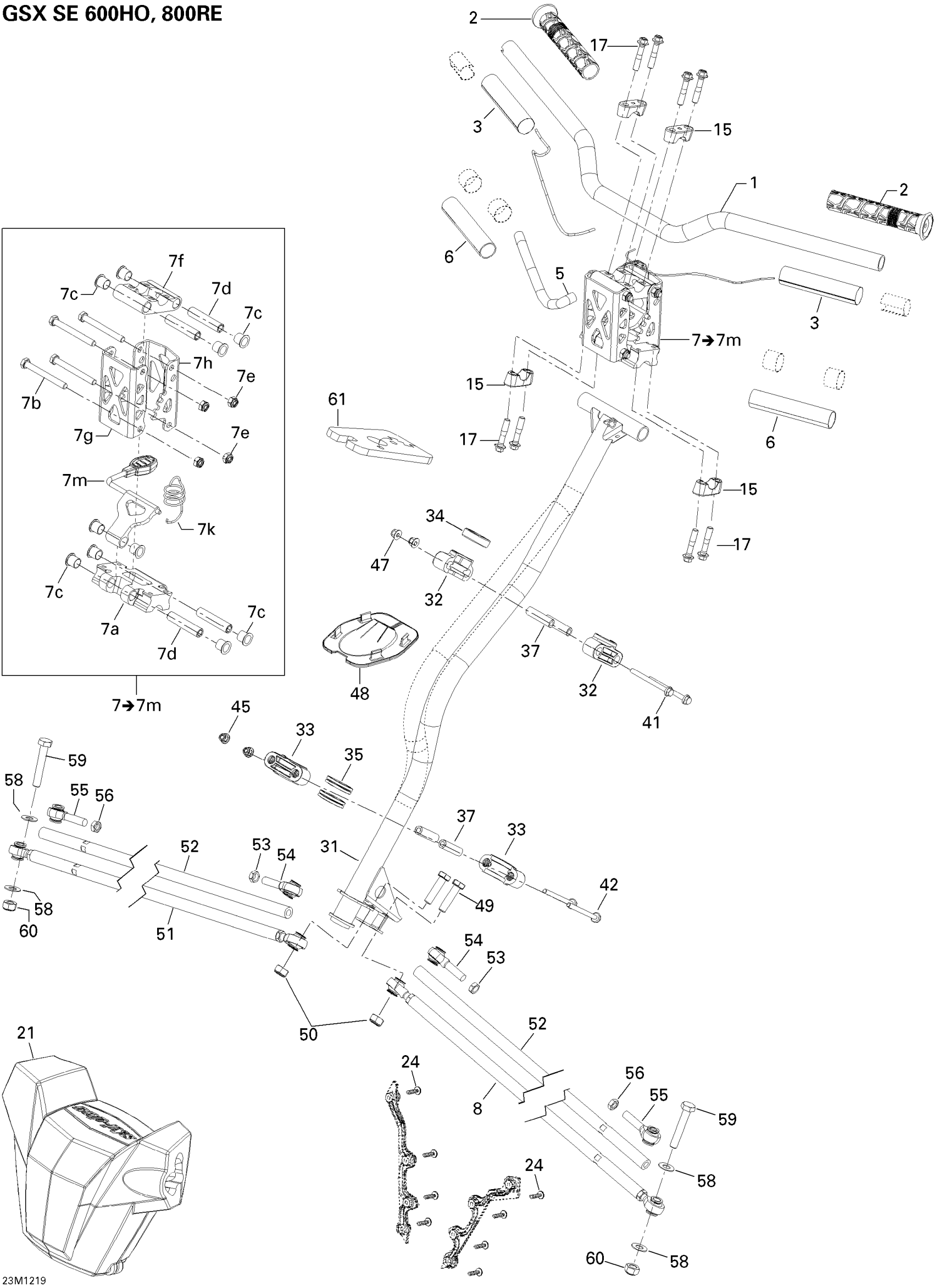

Ski-Doo GSX SE 600HOETEC, 2012 Steering Diagram

#

Description
Price

1

HANDLE BAR - Call your local BRP dealership

506152304

Unavailable

2

Grip

506152501

$9.88

3

Heating Element

506152422

$99.22

5

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

6

Insulant

506153178

$9.93

7

ADJUSTABLE HANDLEBAR - Call your local BRP dealership

506152197

Unavailable

7a

Not Available As Spare Part - Friction Washer

Unavailable

7b

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

Unavailable

7c

Cushion

506152520

$12.00

7d

Not Available As Spare Part - Friction Washer

Unavailable

7e

Hex. Flange Elastic Nut M8

233281414

$1.31

7f

Not Available As Spare Part - Friction Washer

Unavailable

7g

Not Available As Spare Part - Friction Washer

Unavailable

7h

Not Available As Spare Part - Friction Washer

Unavailable

7k

Spring | Package SE

506152184

$8.48

7m

HANDLE ASM - Call your local BRP dealership

506152411

Unavailable

15

Steering Support | Includes 40 to 40a

506152751

$11.58

17

Hex. Flange Screw M8 X 40

250000352

$3.16

21

Steering Pad (Adjustable)

506152330

$93.25

24

Screw PT Type K-50 X 16

250000959

$2.00

31

Steering Column

506152964

$183.55

31

Steering Column

506152962

$183.55

32

Upper Half-Housing

506152508

$7.18

33

Lower Half-Housing

506152217

$5.40

34

Upper Anti-Vibration Gasket

506152509

$4.39

37

Housing Bushing

506152297

$9.93

41

Hex. Flange Screw M6 X 70

207667056

$4.15

42

Hex. Flange Screw M6 X 70

207667044

$0.81

45

Elastic Flange Nut M6 X 1.0

233261416

$2.00

47

Elastic Flange Nut M6 X 1.0

233261416

$2.00

48

Plate

506152163

$9.93

49

Hex. Screw M10 X 1.5 X 40

207004034

$2.00

50

Elastic Stop Nut M10

232500416

$1.79

51

Not Available As Spare Part - Friction Washer

Unavailable

52

Tie-Rod Ass'y

506152496

$58.18

53

LH Thread Ball Joint

506152081

$38.78

54

LH Threaded Hex. Jam Nut M10

250100016

$0.70

55

RH Threaded Ball Joint

506152019

$38.78

56

RH Threaded Hex. Jam Nut M10

732610010

$0.70

58

Washer

506152194

$4.28

59

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

60

Elastic Stop Nut M10

232500416

$1.79

61

Bushing

506152521

$13.19
