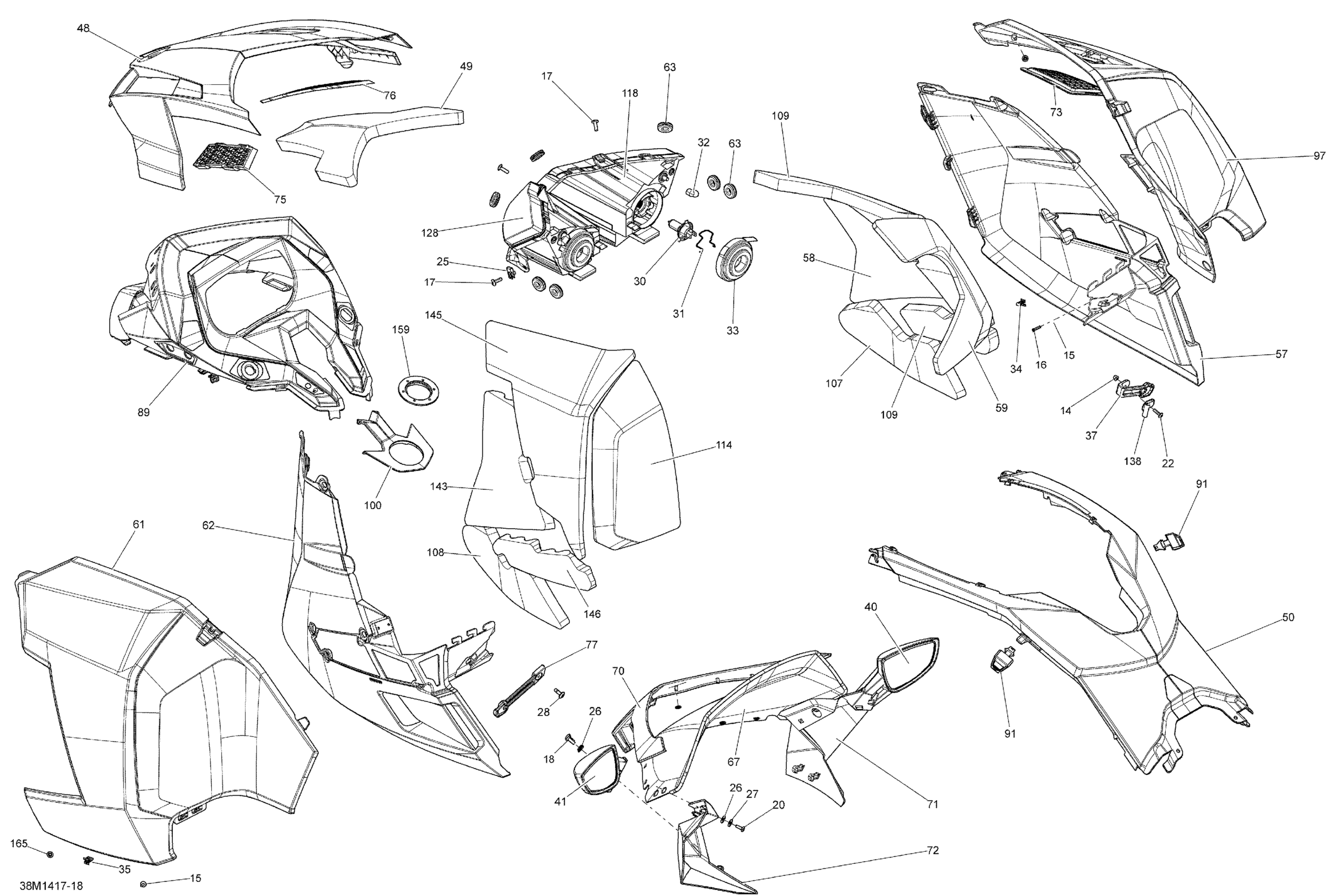

Ski-Doo GSX SE 600HOE XR, 2014 09- Hood, Windshield And Console Diagram

#

Description
Price

14

Hex. Flange Elastic Nut M5

233251414

$1.04

15

Flat Washer 4 mm, Stainless

234042600

$1.15

16

Hex. Flange Screw K40 X 16

241141660

$1.48

17

Torx Screw M6 X 20

250000722

$1.68

18

Torx Truss Screw M6 X 16

250000721

$1.69

19

Torx Screw K50 X 16

250000720

$1.69

22

Torx Screw M5 X 20

250000792

$2.11

25

Panel Nut M6 X 1.0

250100198

$2.11

26

Rubber Washer 5 mm

250200024

$2.19

27

Washer M5

250200025

$0.74

28

Pop Rivet 3/16”

293150108

$1.19

30

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Cap

515176498

$12.99

33

Rubber Cap Protector

219800280

$19.49

35

Edge Clip

517302785

$0.88

37

RH Panel Latch

517303612

$9.99

40

RH Mirror Ass'y

517305100

$52.99

41

LH Mirror Ass'y

517305101

$52.99

48

Black Hood | Model-Black-Black

517303739

$244.99

48

HOOD B-321 - Call your local BRP dealership | Model-GSX SE Magnesium-Magnesium

517305159

Unavailable

49

Hood Foam

517304893

$28.99

50

Black Console

517303741

$224.99

50

MAGNESIUM CONSOLE ASS'Y - Call your local BRP dealership | Model-GSX SE Magnesium-Magnesium

517305163

Unavailable

57

PANEL_BODY LWR R B-160 - Call your local BRP dealership

517304373

Unavailable

58

CENTRAL FOAM PANEL RH - Call your local BRP dealership

517304894

Unavailable

59

REAR PANEL FOAM RH - Call your local BRP dealership

517304895

Unavailable

61

Black LH Pannel | Model-Black-Black

517303753

$229.99

61

Magnesium LH Panel | Model-GSX SE Magnesium-Magnesium

517305174

$589.99

62

PANEL_BODY LWR L B-160 - Call your local BRP dealership

517304362

Unavailable

63

Grommet

517303756

$4.09

67

HIGHT WINDSHIELD (430) - Call your local BRP dealership

517303797

Unavailable

70

Medium Windshield Support

860200229

$31.99

71

RH CONSOLE AIR DEFLECTOR - Call your local BRP dealership

517303799

Unavailable

72

LH CONSOLE AIR DEFLECTOR - Call your local BRP dealership

517303800

Unavailable

73

PANEL GRILL - Call your local BRP dealership | Model-SE Black-Black

517304909

Unavailable

75

LH Hood Grille

517303804

$31.99

76

RH Hood Grille

517303805

$31.99

77

LH Panel Latch

517303808

$11.49

89

INDICATOR SUPPORT - Call your local BRP dealership

517303996

$80.99

91

Panel Latch

517305000

$13.49

97

Black RH Pannel

517304006

$349.99

97

Magnesium RH Panel | Model-GSX SE Magnesium-Magnesium

517305168

$589.99

100

Deep Black, Cap Console

517304027

$15.49

107

RH LOWER PANEL FOAM - Call your local BRP dealership

517304905

Unavailable

108

LH LOWER PANEL FOAM - Call your local BRP dealership

517304901

Unavailable

109

RH UPPER PANEL FOAM - Call your local BRP dealership

517304908

Unavailable

114

LH REAR PANEL FOAM - Call your local BRP dealership

517304904

Unavailable

118

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$149.99

128

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

$149.99

138

Latch Support

517304221

$9.19

143

LH CENTRAL PANEL FOAM - Call your local BRP dealership

517304899

Unavailable

145

LH UPPER PANEL FOAM - Call your local BRP dealership

517304902

$28.99

146

CENTRAL FOAM PANEL LH - Call your local BRP dealership

517304897

Unavailable

159

Console Nut

517304518

$15.29

165

Push Nut

732610072

$2.19
