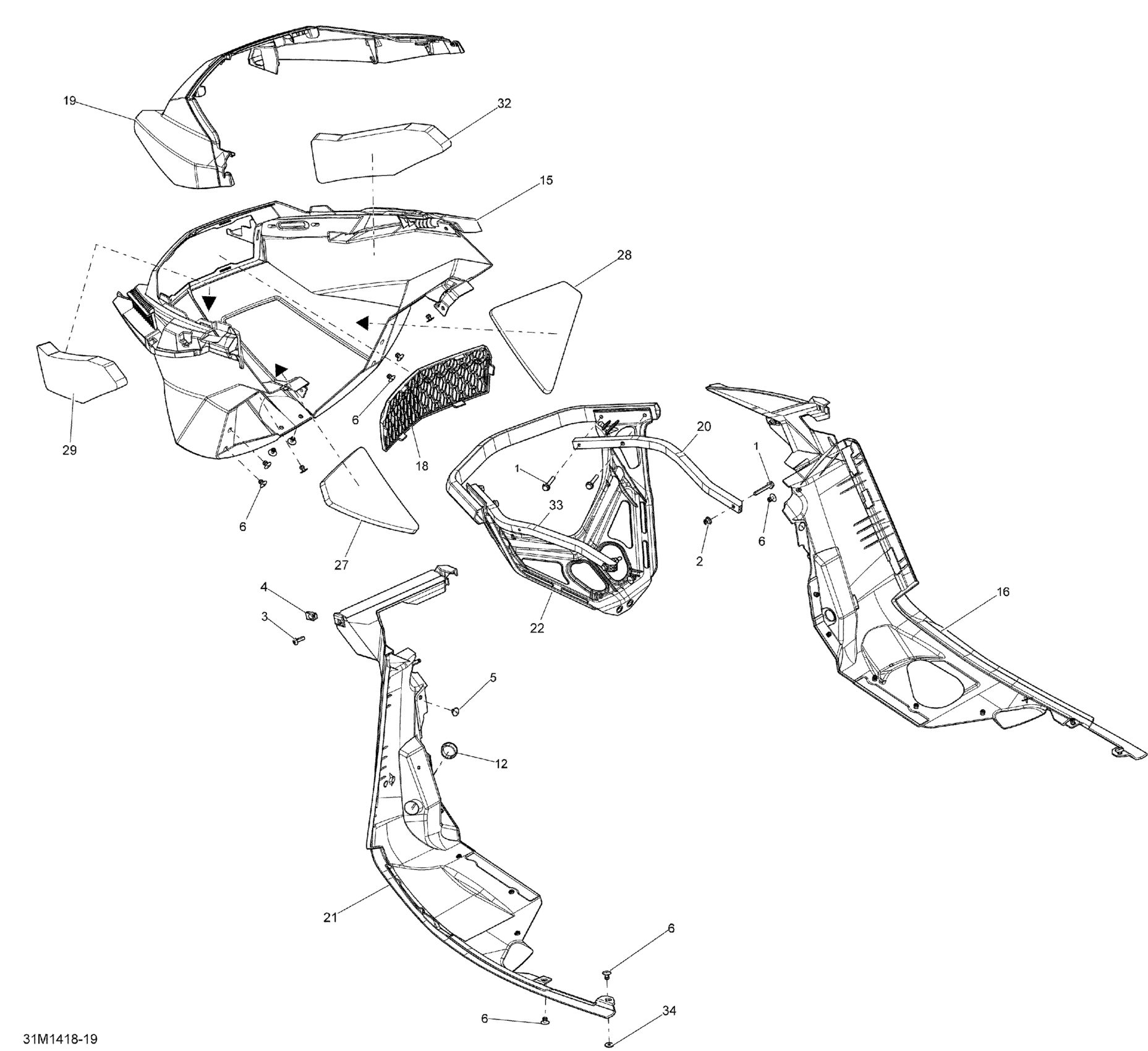

Ski-Doo GSX SE 600HOE XR, 2014 09- Bottom Pan Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 40

207664044

$2.22

2

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

3

Torx Screw M6 X 20

250000722

$1.68

4

Panel Nut M6 X 1.0

250100198

$2.11

5

Pop Rivet 3/16"

293150103

$0.55

6

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

12

Black, Nylon Cap

414916600

$4.69

15

Deep Black Front Bottom Pan

502006873

$114.99

16

RH BOTTOM PAN - Call your local BRP dealership

502006877

Unavailable

18

Botton Pan Grille

502006887

$27.99

19

Black Bottom Pan Cap

502006898

$98.99

20

RH Support

502006926

$28.99

21

LH BOTTOM PAN - Call your local BRP dealership

502006937

Unavailable

22

Bracket

502006938

$21.99

25

Black Bumper

502006939

$158.99

27

LH MIDDLE HULL FOAM - Call your local BRP dealership

502007223

Unavailable

28

RH MIDDLE HULL FOAM - Call your local BRP dealership

502007220

$18.49

30

LH UPPER HULL FOAM - Call your local BRP dealership

502007219

Unavailable

31

RH UPPER HULL FOAM - Call your local BRP dealership

502007217

Unavailable

33

LH Support

502007357

$31.99

34

Washer

517124300

$0.19
