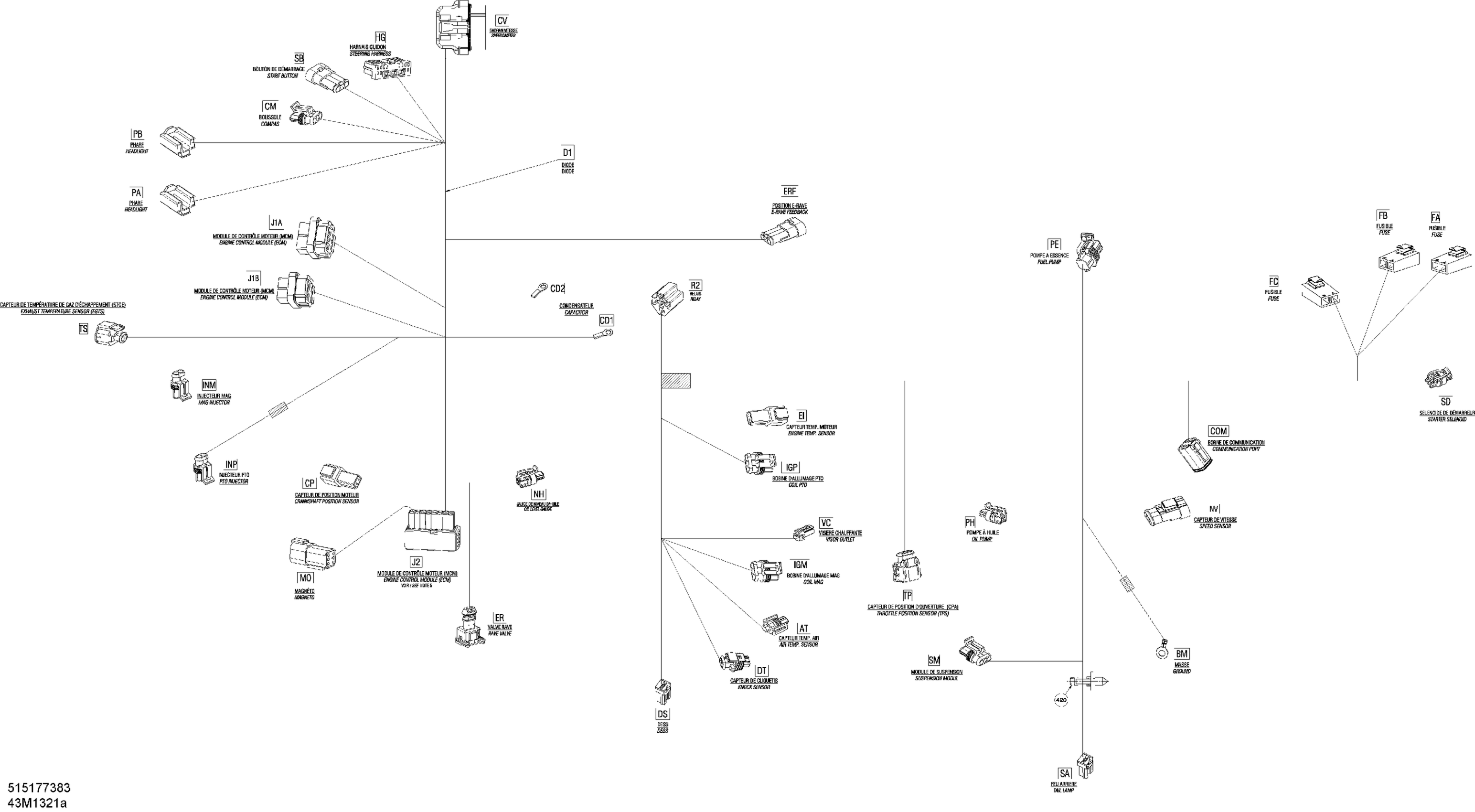

Ski-Doo GSX SE 600HOE, 2013 Electrical Harness Main, 600HOETEC Diagram

#

Description
Price

3000

Frame Harness | 600HOE SE

515177383

Unavailable

AT

Wire Seal

710001163

$5.10

AT

Female Terminal

710001164

$5.92

AT

Open Barrel

278000992

$1.79

BM

Shrink Tubing, 6 mm

515177246

$1.02

CD1

Ring Terminal

515175504

$7.48

CD1

Shrink Tubing, 6 mm

515177246

$1.02

CD2

Ring Terminal

515175504

$7.48

CD2

Female Housing, 3 Circuits

409209600

$35.35

CM

Wire Seal

515176621

$7.00

CM

Female Terminal

710001340

$5.11

CM

Tie Wrap 142 mm

293750002

$0.88

CM

Male Housing, 6 Circuits

515175673

$13.05

COM

Male Wedge, 6 Circuits

515175678

$5.11

COM

Sealing Cap

293000052

$2.55

COM

Female Terminal

278000632

$1.69

COM

Male Terminal Housing, 2 Circuits

515175665

$8.02

CP

Male Lock, 2 Circuits

409207500

$3.02

CP

Male Terminal

278000631

$4.12

CP

Female Housing, 24 Circuits

515175801

$9.00

CV

Retainer Block

515175802

$10.66

CV

Plug

515175812

$1.70

CV

Female Housing

710000399

$14.02

CV

Wire Seal

515175803

$2.41

CV

Female Terminal

515175806

$0.81

CV

Female Terminal

710001131

$7.00

CV

Diode

409012700

$10.83

D1

Female Housing, 3 Circuits

515177247

Unavailable

D1

Female Housing, 3 Circuits

515175495

$15.35

DS

Female Terminal

515175231

$4.12

DS

Male Housing, 2 Circuits

278001005

$15.57

DT

Seal

415128501

$1.51

DT

Female Terminal

278000998

$3.48

DT

Male Terminal Housing, 2 Circuits

515175665

$8.02

EI

Male Lock, 2 Circuits

409207500

$3.02

EI

Male Terminal

278000631

$4.12

EI

Female Terminal Housing, 2 Circuits

415128500

$6.31

ER

Seal

415128501

$1.51

ER

Female Terminal

278000998

$3.48

ER

Housing

710000568

$10.83

ERF

Wire Seal

515176621

$7.00

ERF

Male Terminal

515176164

$6.43

ERF

Clip

710000992

$4.00

FA

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

FA

Fuse Holder

409004000

$7.00

FA

Female Terminal

409004200

$4.42

FA

Clip

710000992

$4.00

FB

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

FB

Fuse, 5 Amperes | CE

278000344

$3.22

FB

Fuse Holder

409004000

$7.00

FB

Female Terminal

409011600

$5.11

FB

Female Terminal

409004200

$4.42

FB

Clip

710000992

$4.00

FC

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

FC

Fuse, 15 Amperes

278000343

$2.72

FC

Fuse Holder

409004000

$7.00

FC

Female Terminal

409011600

$5.11

FC

FEMALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175349

Unavailable

HG

Female Terminal

515175282

$6.43

HG

Female Terminal

515175231

$4.12

HG

Female Housing, 3 Circuits

409209600

$35.35

IGM

Wire Seal

278001013

$2.72

IGM

Female Terminal

278001014

$2.72

IGM

Female Housing, 3 Circuits

409209600

$35.35

IGP

Wire Seal

278001013

$2.72

IGP

Female Terminal

278001014

$2.72

IGP

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

INM

Female Housing, 2 Circuits

409209500

$13.48

INM

Wire Seal

278001013

$2.72

INM

Female Terminal

278001014

$2.72

INM

Tie-Rap

710002712

$0.51

INM

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

INP

Female Housing, 2 Circuits

409209500

$13.48

INP

Wire Seal

278001013

$2.72

INP

Female Terminal

278001014

$2.72

INP

Tie-Rap

710002712

$0.51

INP

Female Terminal Housing, 34 Circuits

515176342

$20.74

J1A

Plug

515175812

$1.70

J1A

Female Terminal

515176541

$4.42

J1A

Female Terminal

515176348

$6.03

J1A

Female Terminal Housing, 26 Circuits

515176341

$28.43

J1B

Plug

515175812

$1.70

J1B

Female Terminal

515176541

$4.42

J1B

Female Terminal

515176348

$6.03

J1B

Female Terminal Housing, 16 Circuits

515176340

$13.94

J2

Seal

415128501

$1.51

J2

Female Terminal

278000998

$3.48

J2

Male Terminal Housing, 6 Circuits

515175668

$14.02

MO

Female Lock, 6 Circuits

278000735

$3.02

MO

Male Terminal

278000631

$4.12

MO

Female Housing, 2 Circuits

515177192

$6.32

NH

Seal

710001233

$2.55

NH

Female Terminal

710001164

$5.92

NH

Clip

710000992

$4.00

NV

Housing

710000568

$10.83

NV

Wire Seal

515176621

$7.00

NV

Male Terminal

515176164

$6.43

NV

Female Housing

515176908

$12.05

PA

Terminal

515176909

$2.12

PA

Female Housing

515176908

$12.05

PB

Terminal

515176909

$2.12

PB

Housing

710001132

$9.60

PE

Lock

710001133

$4.12

PE

Seal

278001482

$2.55

PE

Seal

710000643

$4.12

PE

Female Terminal

278001481

$3.02

PE

Female Housing, 2 Circuits

515177192

$6.32

PH

Seal Wire

710001332

$2.72

PH

Terminal

710000925

$2.55

PH

Female Housing, 5 Circuits

409209900

$8.98

R2

Female Terminal

561503100

Unavailable

R2

Female Terminal

561503100

Unavailable

R2

Female Housing, 3 Circuits

515175495

$15.35

SA

Female Terminal

515175231

$4.12

SA

Housing

710000568

$10.83

SB

Wire Seal

515176621

$7.00

SB

Male Terminal

515176164

$6.43

SB

Female Housing, 2 Circuits

515177192

$6.32

SD

Seal

710001233

$2.55

SD

Female Terminal

710001164

$5.92

SD

Female Housing, 3 Circuits

409209600

$35.35

SM

Wire Seal

278001013

$2.72

SM

Wire Seal

515176621

$7.00

SM

Female Terminal

278001014

$2.72

SM

Female Terminal

710001340

$5.11

SM

Female Terminal Housing, 3 Circuits

278002521

$9.60

TP

Seal

415128501

$1.51

TP

Female Terminal

278000998

$3.48

TP

Female Terminal Housing, 2 Circuits

278002520

$8.57

TS

Seal

415128501

$1.51

TS

Female Terminal

278000998

$3.48

TS

Female Housing, 2 Circuits

515175658

$15.35

VC

Female Terminal

515175231

$4.12
