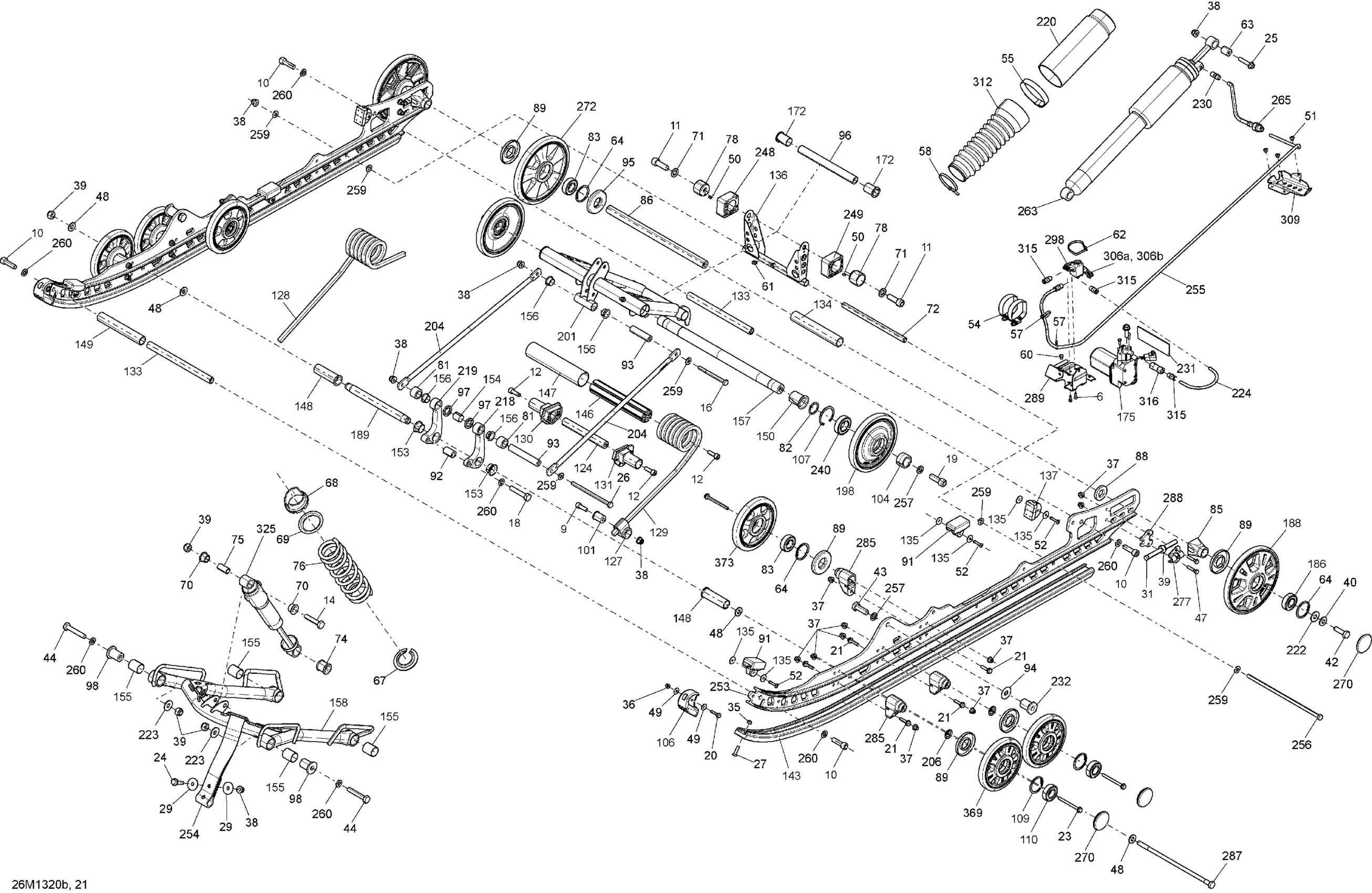

Ski-Doo GSX SE 600HOE, 2013 08- Rear Suspension Diagram

Socket Head Screw M4 X 12

205041254

$2.11

Socket Screw M8 X 25

205082554

$2.11

Socket Head Screw M10 X 35

205503554

$7.51

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.96

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

$1.90

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

Hex. Screw M8 X 90

207089044

$3.48

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

$2.96

Socket Head Screw M12 X 35

205523554

$4.44

Hex. Flange Screw M5 X 25

207652544

$0.50

Hex. Flange Screw M6 X 25

207662556

$4.44

Hex. Flange Screw M6 X 70

207667056

$4.44

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

Hex. Flange Screw M8 X 40

207684044

$1.48

Hex. Screw M8 X 130

230083044

$7.41

Phillips Screw M6 X 25

208562531

$2.11

Flat Washer 8 mm

250200128

$4.44

Hex Screw M10 x 100

230100054

$6.45

Elastic Stop Nut M6

232561414

$0.55

Hex. Flange Elastic Nut M5

233251414

$1.04

Hex. Flange Elastic Nut M6

233261466

$2.00

Elastic Flange Nut M8

233281466

$1.01

Elastic Locking Nut M10

233601466

$2.11

Conical Spring Washer 10 mm

234201474

$1.69

Hex. Screw With Nylon

250000019

$1.69

Hex. Cap Screw M12 X 35

250000537

$3.17

Hex. Cap Screw M10 X 60

207006056

$7.51

Hex. Cap Screw M6 X 30

207063054

$6.39

Washer

250200138

$2.11

Washer

250200140

$1.01

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

Unavailable

Rivet 3/16"

293150102

$0.70

Pop Rivet 3/16"

293150142

$2.29

Norma Gear Clamp

293650090

$4.54

Tridon Clamp

293650064

$8.29

Tie-Rap 180 mm

414115200

$0.11

Tie Wrap 368 mm

293750008

$1.04

Avex Rivet

390909200

$0.30

Grease Fitting

408200700

$3.49

Tie-Rap 180 mm

414115200

$0.11

Bushing

414936000

$13.99

Retaining Ring

415129371

$12.01

Retaining Ring

415129780

$15.79

Spring Stopper

503194270

$19.99

Adjustment Cam

505073625

$12.99

Spring Guide

503191872

$2.29

Urethane Bushing

503189117

$8.19

Washer | 7415/7416. 7417/7418.

503189148

$2.85

Pivot Arm Axle

503189156

$21.99

Bushing

503189271

$13.99

Bushing | Includes 240d to 240d1

503189282

$4.34

Black, Spring

503191879

$62.49

Block Guide

503189488

$39.99

Spacer

503190114

$19.99

Washer

503190328

$12.65

Ball Bearing | Package-STD

503190396

$14.30

Rear Wheel Spacer

503190428

$8.14

Rear Axle

503190429

$59.99

Washer

503190432

$14.22

Labyrinth Seal

503190434

$6.09

Rubber Stopper

503190576

$12.99

Central Shock Axle

503190604

$14.15

Bar Axle (Short)

503190113

$38.99

Washer

503190656

$2.96

Labyrinth Seal

503190682

$6.19

Lower Shaft

503192330

$45.99

Plastic Spacer

503190694

$2.11

Axle

503190698

$20.99

Spring Support Kit

861805547

$10.49

Retaining Ring

503191099

$8.29

Runner Protector

503191137

$11.99

Retaining Ring

415129780

$15.79

Retaining Ring

415129371

$12.01

Ball Bearing | Package-STD

503190396

$14.30

Spring Cam Axe

503191178

$28.99

Spring Support Kit

861805547

$10.49

RH SPRING, SQUARE - Call your local BRP dealership

503192268

Unavailable

LH SPRING, SQUARE - Call your local BRP dealership

503192267

Unavailable

RH Spring Cam

503191190

$15.29

LH Spring Cam

503191191

$15.79

Axle Strap

503191260

$30.99

Spacer

503196317

$18.49

Washer

503191273

$1.35

Pivot Arm

503191302

$124.99

Rubber Stopper

503191291

$19.99

Black, Slider Shoe 137''

503191306

$29.49

Spring Axle

503191344

$36.99

Plastic Bushing

503191345

$7.83

Center Bushing

503191351

$8.29

Spacer

503191448

$11.99

Cushion

503191451

$14.15

Bushing

503191552

$5.93

Bushing

503191553

$5.93

Bushing

503191554

$6.14

Swivel Bushing

503191555

$7.83

UPPER SHAFT - Call your local BRP dealership

503191233

Unavailable

Front Arm Ass'y | Includes 2000 to 2000b

503191579

$465.99

Cushion

503191640

$5.93

Compressor

706001349

$469.99

Black, Wheel Ass'y 155 mm | Includes 3070 to 3070b

503191738

$48.49

Ball Bearing | Package-STD

503190396

$14.30

Full Moon Wheel Ass'y, 180 mm

503191627

$51.99

Black, Wheel Ass'y, 180 mm | Includes 600 to 600b

503191742

$51.99

Center Shaft

503191764

$63.49

Black, Wheel Ass'y 155 mm | Includes 3070 to 3070b

503191738

$48.49

REAR ARM ASS'Y - Call your local BRP dealership

503191967

Unavailable

THROTTLE ROD - Call your local BRP dealership

503192083

Unavailable

Wheel Cup M6

503191820

$4.99

LH Rocker Arm

503191890

$62.49

RH Rocker Arm

503191894

$62.49

Not Available As Spare Part - Friction Washer

Unavailable

Washer

503191910

$2.32

Washer

503191926

$1.58

Hose 4.32Mm 3000Mm Long

219704415

$55.99

Male Pneumatic Connector

503191939

$44.49

Rubber Damper

503191940

$10.49

Lower Axle

503191966

$15.89

Ball Bearing

503193548

$17.99

RH Block, 4 Positions

503192300

$25.99

LH Block, 4 Positions

503192301

$25.99

RAIL_SUSPENSION 137 - Call your local BRP dealership | GTX SE PB-Black

503192319

Unavailable

Stopper Strap

503192360

$20.99

Hose 4.32Mm 3000Mm Long

219704415

$55.99

Bolt M8 X 248mm

503192440

$30.49

Washer

503192491

$4.54

Washer

503192494

$3.17

Washer

503192496

$0.77

REAR SHOCK ASS'Y - Call your local BRP dealership

503192651

Unavailable

Air Hose Ass'y

503192652

$134.99

Black, Wheel Cap

503192771

$2.39

Black, Wheel Ass'y 180 mm | Includes 670 to 670b

503194050

$51.99

Tensioner

503192583

$8.29

Casted Support

503193894

$16.49

Bolt M10 X 251MM

503193227

$17.29

Spacer

503193250

$16.49

PRESSURE COLLECTOR SUPPORT - Call your local BRP dealership

503193466

Unavailable

PRESSURE COLLECTOR ASS'Y - Call your local BRP dealership

503193492

Unavailable

Male Terminal

515175232

$1.58

Male Terminal Housing, 2 Circuits

515175654

$9.12

AIR SUSPENSION BRACKET - Call your local BRP dealership

518326391

Unavailable

Protection Boot

570278300

$59.99

Connector

706000869

$34.99

Check Valve

706000940

$37.99

Center Shock

503192988

$248.99

Black, Wheel Ass'y 141 mm | Includes 440 to 440b

503192794

$37.99

Full Moon Wheel Ass'y, 141 mm

503191622

$37.99

Black, Wheel Ass'y 147 mm | Includes 440 to 440b

503191152

$48.49
