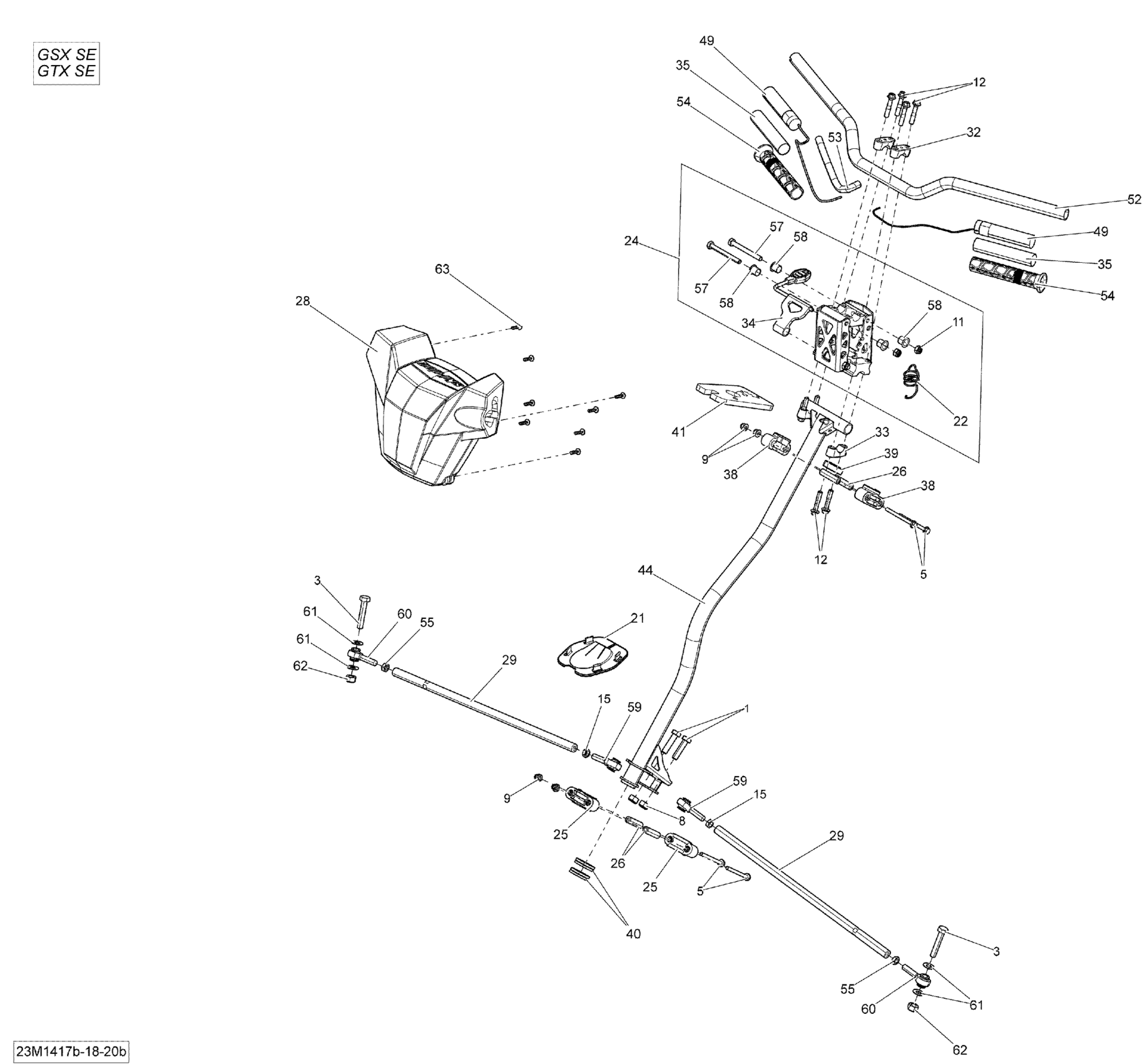

Ski-Doo GSX SE 12004TEC XR, 2014 07- Steering SE Diagram

#

Description
Price

1

Hex. Screw M10 X 1.5 X 40

207004034

$2.11

3

Hex Screw M10 X 1.5 X 55

207005554

$7.51

5

Hex. Flange Screw M6 X 70

207667056

$4.44

8

Elastic Stop Nut M10

232500416

$1.90

9

Elastic Flange Nut M6 X 1.0

233261416

$2.11

11

Hex. Flange Elastic Nut M8

233281414

$1.47

12

Hex. Flange Screw M8 X 40

250000352

$3.38

15

LH Threaded Hex. Jam Nut M10

250100016

$0.74

21

Plate

506152163

$12.99

22

Spring | Package SE

506152184

$10.49

24

ADJUSTABLE HANDLEBAR - Call your local BRP dealership

506152197

Unavailable

25

Lower Half-Housing

506152217

$7.62

26

Housing Bushing

506152297

$12.99

28

Steering Pad (Adjustable)

506152601

$94.99

29

Tie-Rod Ass'y

506152496

$62.49

32

Steering Support | Includes 40 to 40a

506152751

$13.99

33

Steering Support | Includes 40 to 40a

506152751

$13.99

34

HANDLE ASM - Call your local BRP dealership

506152411

Unavailable

35

Insulant

506153178

$12.99

38

Upper Half-Housing

506152508

$9.23

39

Upper Anti-Vibration Gasket

506152509

$4.79

40

Lower Vibration Ring

506152518

$4.79

41

Bushing

506152521

$15.79

44

Steering Column

506152964

$199.99

49

HEATED FILM - Call your local BRP dealership

506152681

Unavailable

52

Black Handle Bar

506152711

$104.99

53

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

54

Grip

506152501

$12.58

55

RH Threaded Hex. Jam Nut M10

732610010

$0.74

57

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

Unavailable

58

Cushion

506152520

$15.72

59

LH Thread Ball Joint

506152081

$41.49

60

RH Threaded Ball Joint

506152019

$41.49

61

Washer

506152582

$4.55

62

Elastic Locking Nut M10

233601466

$2.11

63

Screw PT Type K-50 X 16

250000959

$2.11
