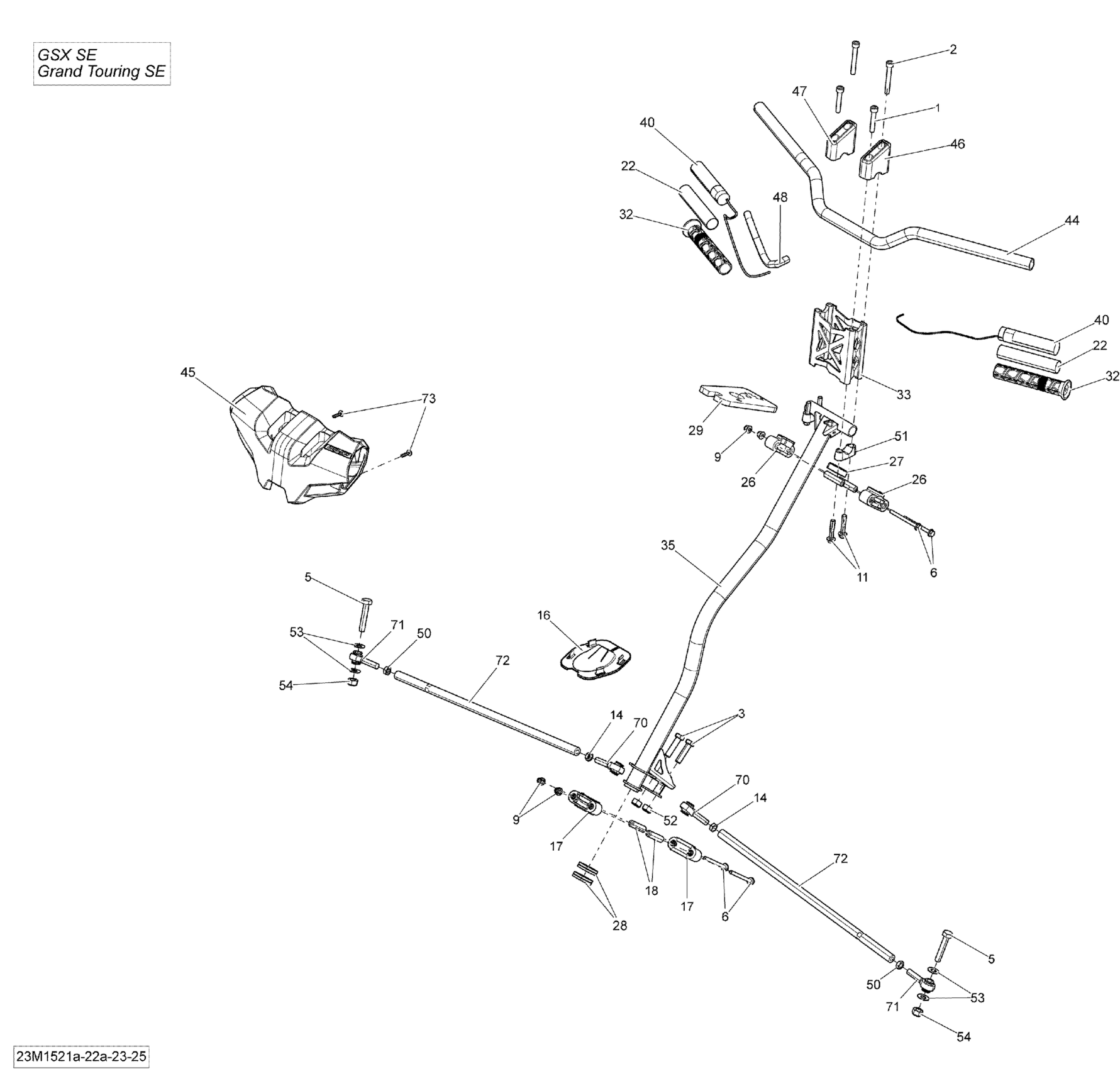

Ski-Doo GSX SE 1200 XR137, 2015 Steering SE_23M1521a Diagram

#

Description
Price

1

Socket Head Screw M8 X 45

205084560

$3.22

2

Socket Head Screw M8 X 60

205086060

$3.88

3

Hex. Screw M10 X 1.5 X 40

207004034

$2.00

5

Hex Screw M10 X 1.5 X 55

207005554

$7.09

6

Hex. Flange Screw M6 X 70

207667056

$4.15

9

Elastic Flange Nut M6 X 1.0

233261416

$2.00

11

Hex. Flange Screw M8 X 40

250000352

$3.16

14

LH Threaded Hex. Jam Nut M10

250100016

$0.70

16

Plate

506152163

$9.93

17

Lower Half-Housing

506152217

$5.40

18

Housing Bushing

506152297

$9.93

22

Insulant

506153178

$9.93

26

Upper Half-Housing

506152508

$7.18

27

Upper Anti-Vibration Gasket

506152509

$4.39

28

Lower Vibration Ring

506152518

$4.39

29

Bushing

506152521

$13.19

32

Grip

506152501

$9.88

33

HANDLEBAR EXTENSION 115 - Call your local BRP dealership

506152759

$71.61

35

Steering Column

506152964

$183.55

40

HEATED FILM - Call your local BRP dealership

506152681

Unavailable

44

Black Handle Bar

506152711

$99.97

45

STEERING PAD - Call your local BRP dealership

506152721

Unavailable

46

LH HANDLEBAR SUPPORT - Call your local BRP dealership

506152729

Unavailable

47

RH HANDLEBAR SUPPORT - Call your local BRP dealership

506152730

Unavailable

48

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

50

RH Threaded Hex. Jam Nut M10

732610010

$0.70

51

Steering Support | Includes 40 to 40a

506152751

$11.58

52

Elastic Locking Nut M10

233601466

$2.00

53

Washer

506152582

$4.28

54

Hex. Flange Elastic M10 x 1.5

233201464

$7.09

70

LH Thread Ball Joint

506152081

$38.78

71

RH Threaded Ball Joint

506152019

$38.78

72

Tie-Rod Ass'y

506152496

$58.18

73

Screw PT Type K-50 X 16

250000959

$2.00
