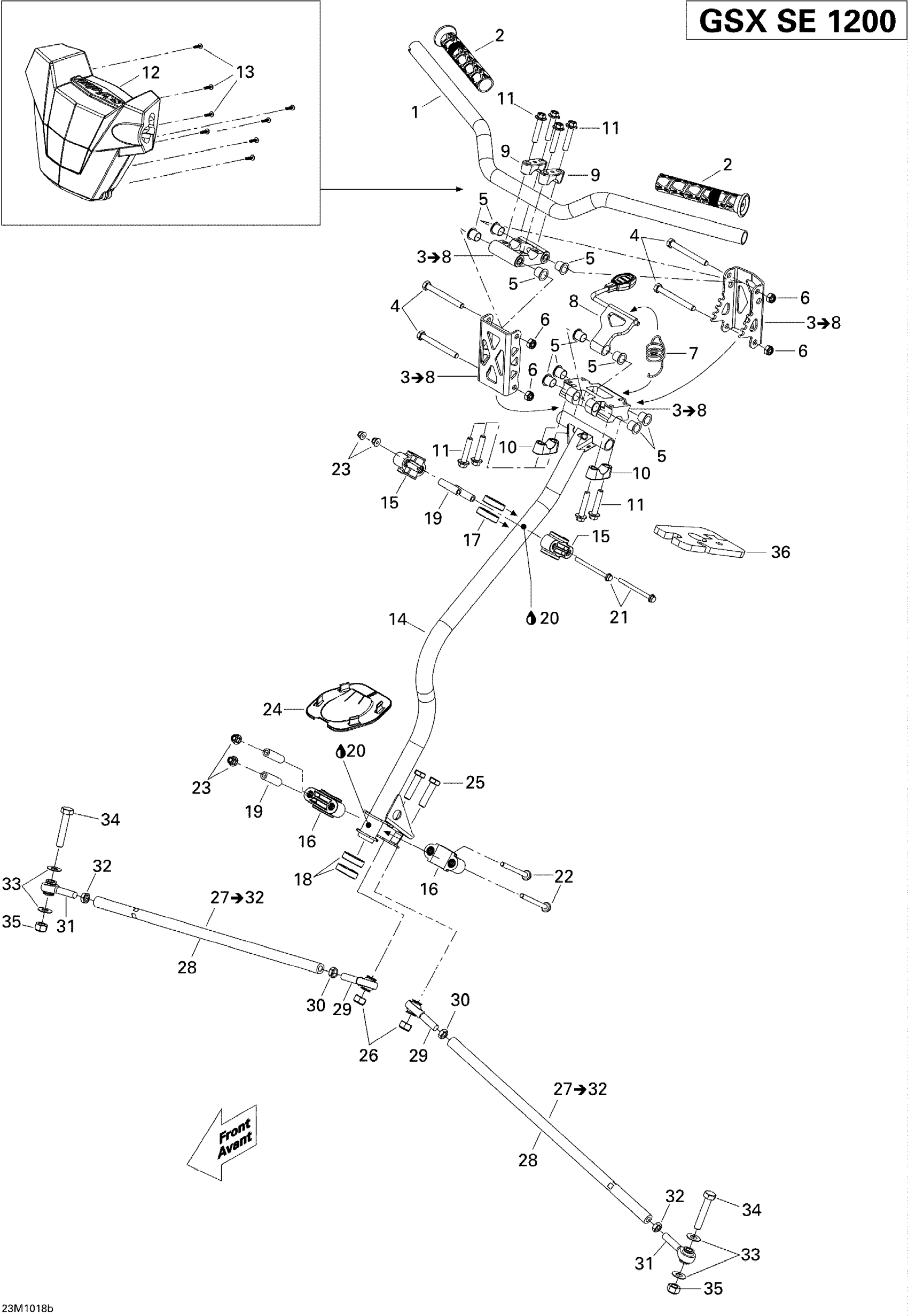

Ski-Doo GSX SE 1200, 2010 Steering SE 1200 Diagram

#

Description
Price

1

HANDLE BAR - Call your local BRP dealership

506152304

Unavailable

2

Handle Grip

506152424

$13.37

3

ADJUSTABLE HANDLEBAR - Call your local BRP dealership

506152197

Unavailable

4

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

Unavailable

5

Cushion

506152520

$12.00

6

Hex. Flange Elastic Nut M8

233281414

$1.31

7

Spring | Package SE

506152184

$8.48

8

HANDLE ASM - Call your local BRP dealership

506152411

Unavailable

9

Steering Support | Includes 40 to 40a

506152751

$11.58

10

Steering Support | Includes 40 to 40a

506152751

$11.58

11

Hex. Flange Screw M8 X 40

250000352

$3.16

12

Steering Pad (Adjustable)

506152330

$93.25

13

Screw PT Type K-50 X 16

250000959

$2.00

14

Steering Column

506152964

$183.55

15

Upper Half Housing

506152219

$1.63

16

Lower Half-Housing

506152217

$5.40

17

Upper Vibration Ring

506152292

$0.70

18

Lower Vibration Ring

506152518

$4.39

19

Housing Bushing

506152297

$9.93

20

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

21

Hex. Flange Screw M6 X 70

207667056

$4.15

22

Hex. Flange Screw M6 X 70

207667044

$0.81

23

Elastic Flange Nut M6 X 1.0

233261416

$2.00

24

Plate

506152163

$9.93

25

Hex. Screw M10 X 1.5 X 40

207004034

$2.00

26

Elastic Stop Nut M10

232500416

$1.79

27

Not Available As Spare Part - Friction Washer

Unavailable

28

Tie-Rod Ass'y

506152496

$58.18

29

LH Thread Ball Joint

506152081

$38.78

30

LH Threaded Hex. Jam Nut M10

250100016

$0.70

31

RH Threaded Ball Joint

506152019

$38.78

32

RH Threaded Hex. Jam Nut M10

732610010

$0.70

33

Washer

506152194

$4.28

34

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

35

Elastic Stop Nut M10

232500416

$1.79

36

Bushing

506152521

$13.19
