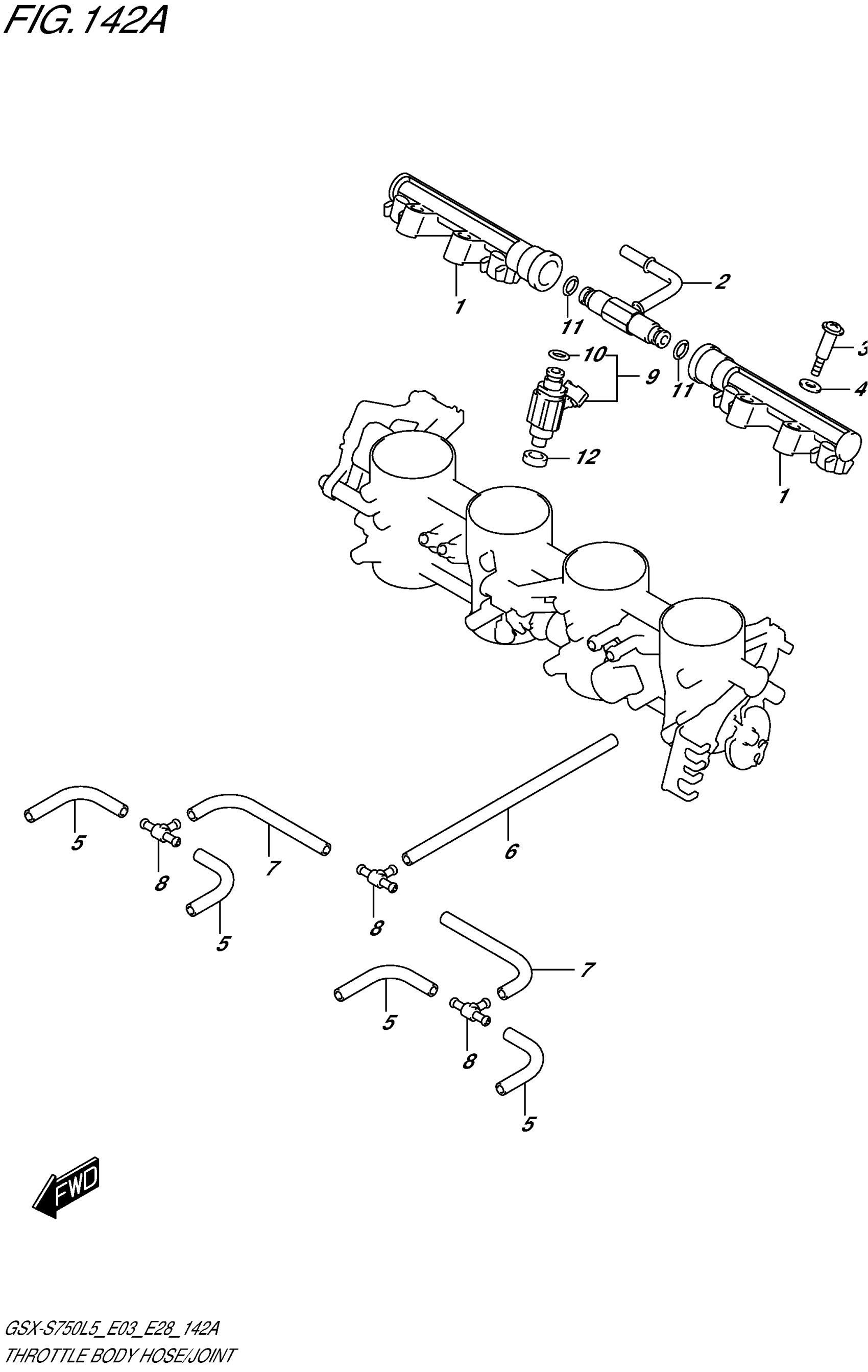

Suzuki GSX-S750L5 (2015) THROTTLE BODY HOSE/JOINT Diagram

#

Description
Price

1

PIPE,DELIVERY

13473-08J00

Unavailable

2

NIPPLE ASSY

13473-29G00

$108.60

3

SCREW

13601-29G00

$3.22

4

PACKING This part replaces 13602-29G00.

13602-29G01

$2.52

5

HOSE (3.2X7.4X60) This part replaces 13681-39F00-060.

13681-39F01-060

$4.40

6

HOSE

13683-08J00

Unavailable

7

HOSE

13683-08J10

Unavailable

8

3WAY,VACUUM HOSE

13685-02FA0

$7.95

9

INJECTOR ASSY

15710-14J00

$371.32

10

.O-RING

15717-58B00

$9.11

11

O-RING

15721-08J00

$11.88

12

SEAL

15722-14J00

$10.70
