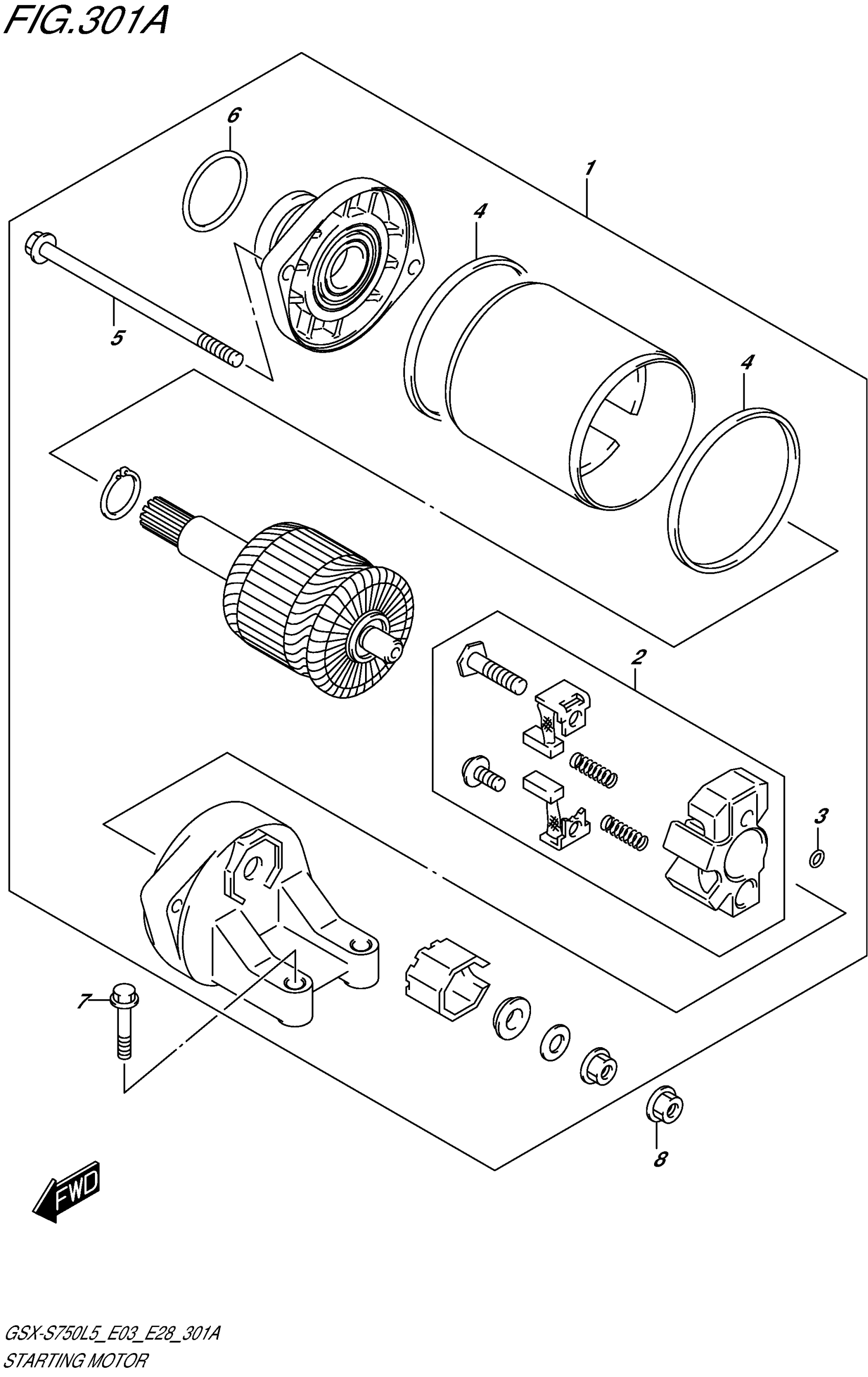

Suzuki GSX-S750L5 (2015) STARTING MOTOR Diagram

#

Description

Price

1

MOTOR ASSY,STARTING

31100-08J00

$631.43

2

BRUSH HOLDER SET

31132-38F10

$51.95

3

O RING

31143-49040

$3.50

4

SQUARE RING

31264-38F10

$9.50

5

BOLT

31280-38F10

Unavailable

6

O RING

31156-98E00

$3.66

7

BOLT (6X25)

09103-06212

$2.53

8

NUT

08361-3506A

$1.81
