2015 Suzuki GSX-S750L5 Handle Switch Diagram

← All diagrams

Find the part on the Handle Switch diagram for your 2015 Suzuki GSX-S750L5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

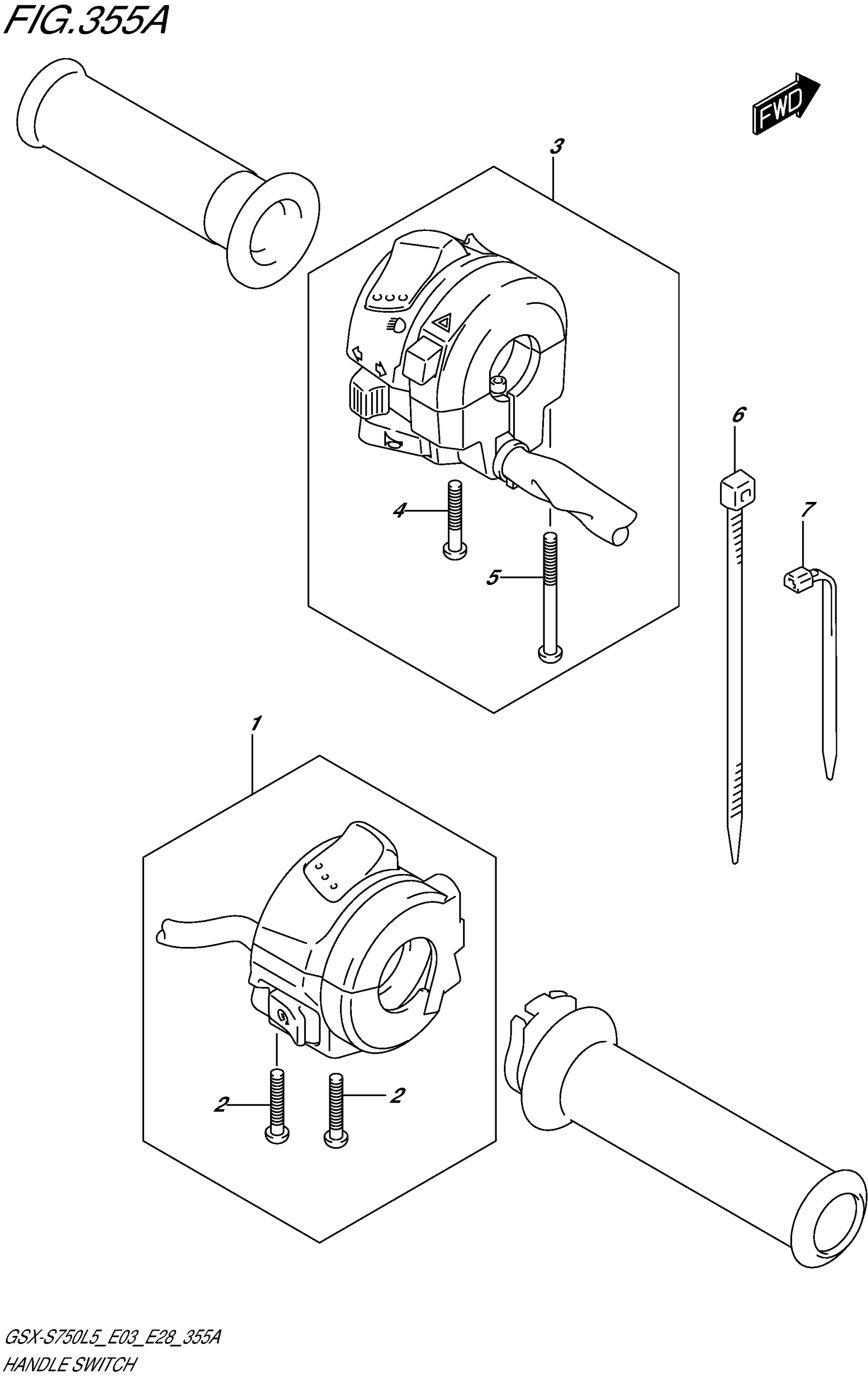

2015 Suzuki GSX-S750L5 Handle Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWITCH ASSY, HANDLE RH

37200-08J10

1
Out of stock

2

SCREW

02112-0530B

2
Out of stock

3

SWITCH ASSY,HAN This part replaces 37400-44G11.

37400-44G12

1
Out of stock

4

SCREW

02112-0525B

1
Out of stock

5

SCREW

02112-0545B

1
Out of stock

6

CLAMP (L:145)

09407-14407

4
Out of stock

7

CLAMP (L:125)

09407-14403

1
Out of stock
