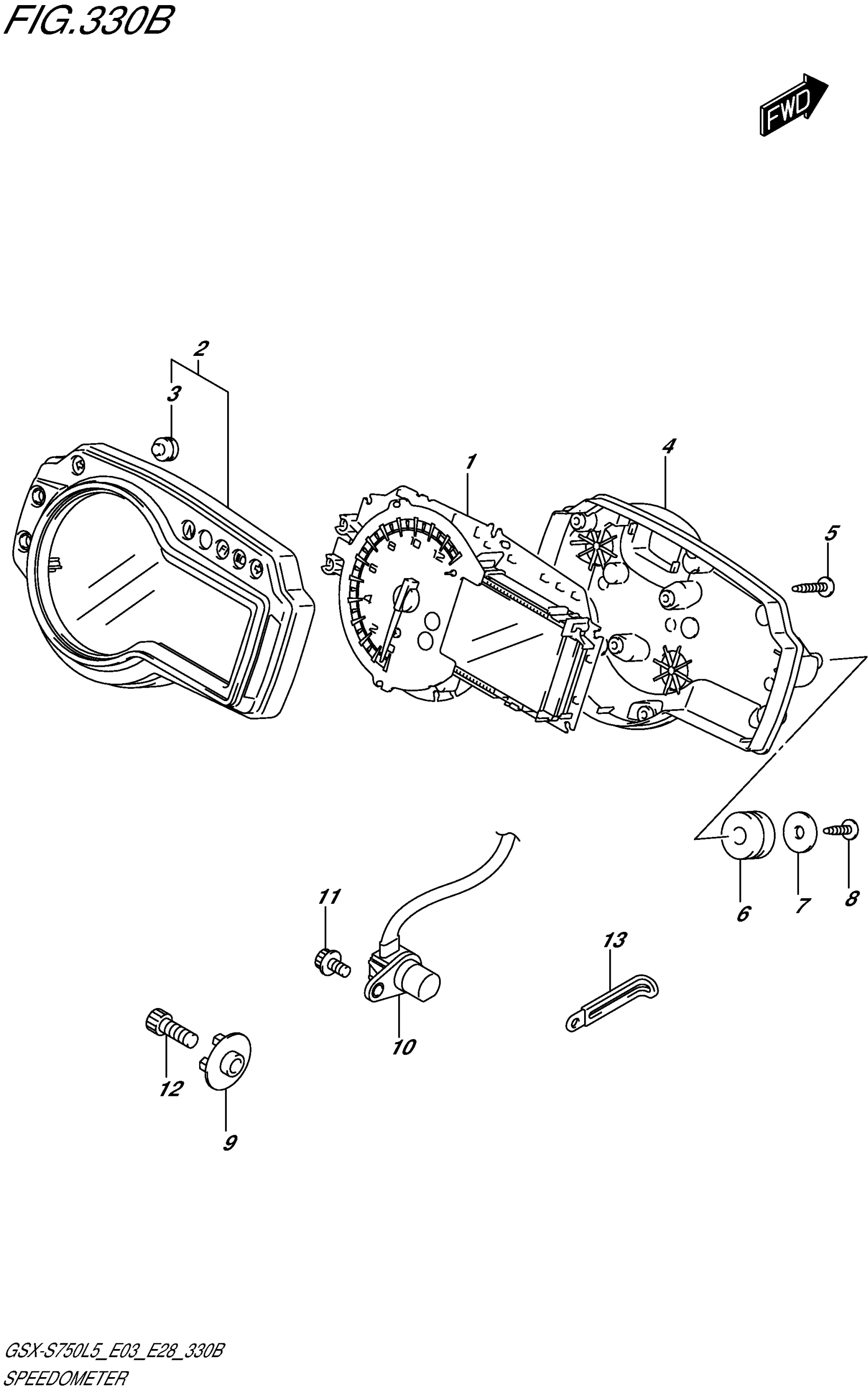

Suzuki GSX-S750L5 (2015) SPEEDOMETER (GSX-S750AL5 E28) Diagram

#

Description
Price

1

SPEEDOMETER

34120-08J20

Unavailable

2

UPPER CASE ASSY

34150-08J10

Unavailable

3

RUBBER, SWITCH

34124-39G00

$11.18

4

LOWER CASE ASSY

34111-08J00

$89.12

5

SCREW (3X16)

09132-03008

$1.55

6

CUSHION,SPEEDOMETER This part replaces 34189-08J00.

34189-08J01

$3.38

7

WASHER (4.5X16X1.2)

09160-04026

$1.86

8

SCREW

03541-0416A

$1.43

9

ROTOR,SPEED

34981-38G01

$16.40

10

SENSOR, SPEED

34990-35F00

$120.25

11

BOLT

07120-0512A

$2.29

12

BOLT

07130-0825B

$3.04

13

CLAMP (L:45)

09404-06429

$1.82
