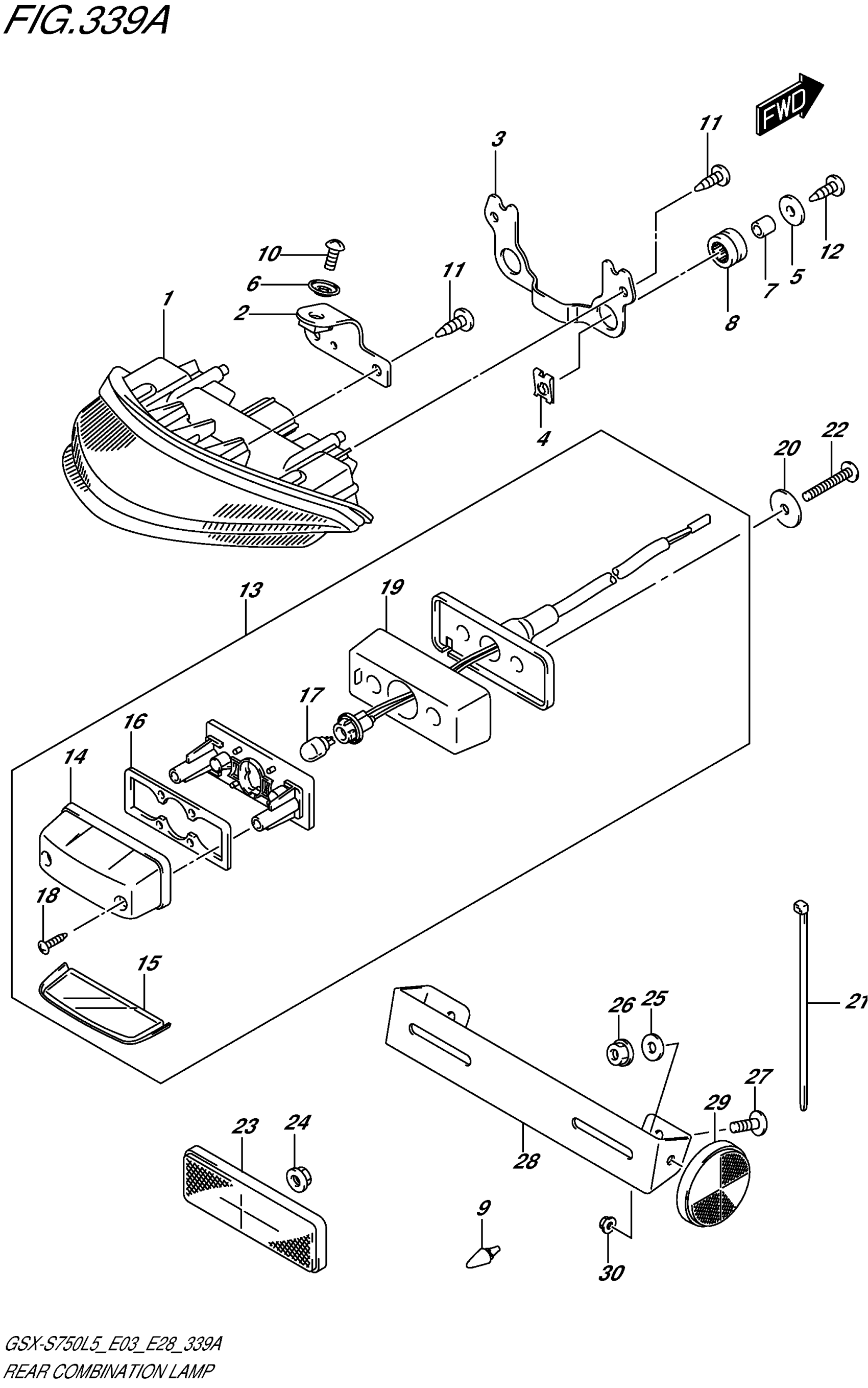

Suzuki GSX-S750L5 (2015) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION

35710-21H30

$250.68

2

BRACKET, REAR COMBINATION LAMP

35726-08J00

$7.22

3

BRACKET, REAR COMBINATION LAMP

35726-08J10

$9.17

4

NUT (M5)

09148-05047

$2.11

5

WASHER (5.5X20X1.2)

09160-05501

$1.84

6

WASHER

09169-06071

$2.50

7

SPACER (6.5X10X9)

09180-06285

$2.74

8

CUSHION

09320-09009

$4.64

9

CUSHION This part replaces 09321-06028.

09321-06038

$1.88

10

SCREW

02142-0612A

$1.49

11

SCREW

03541-0516A

$1.49

12

SCREW

03541-0520B

$2.63

13

LAMP ASSY,LICENSE

35910-16G31

$88.23

14

COVER

35917-16G00

$12.40

15

LENS

35912-16G01

$12.27

16

GASKET

35913-16G00

Unavailable

17

.BULB (12V5W)

09471-12216

$5.36

18

SCREW

03211-0416A

$1.49

19

SPACER

35978-16G30

Unavailable

20

WASHER (5.5X20X1.2)

09160-05501

$1.84

21

CLAMP (L:145)

09407-14407

$3.57

22

SCREW

03541-0540A

$1.49

23

REFLECTOR ASSY, REAR SIDE

35970-07F01

$20.88

24

NUT

08316-1005A

$2.19

25

WASHER (6.5X20X1.2)

09160-06077

$1.91

26

NUT

08316-1006A

$2.19

27

SCREW

02142-0616A

$1.49

28

BRACKET, LICENSE PLATE

35927-08J30

$15.05

29

REFLECTOR ASSY, RR SIDE

35970-14A20

$15.10

30

NUT

08316-1005A

$2.19
