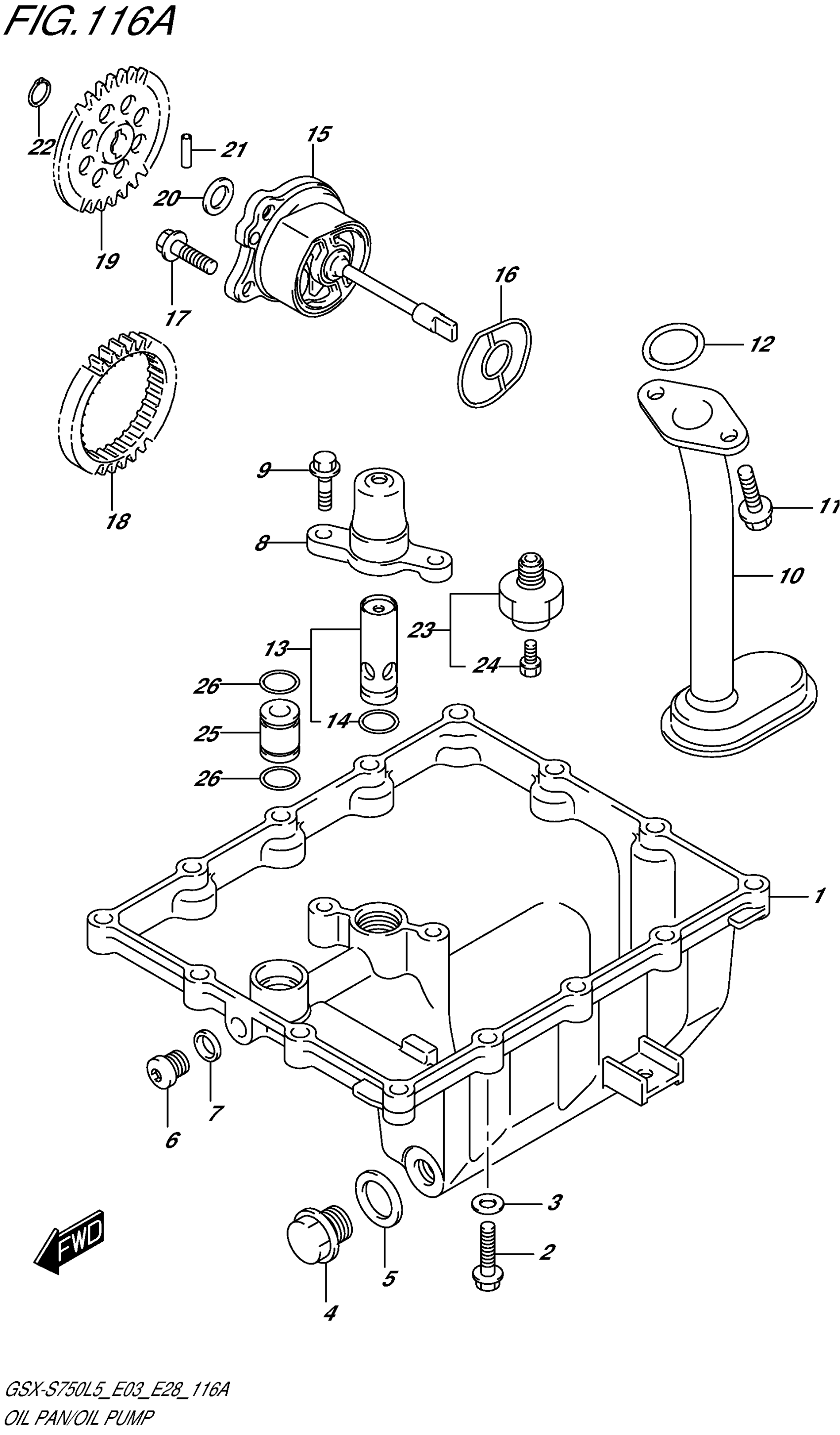

Suzuki GSX-S750L5 (2015) OIL PAN/OIL PUMP Diagram

#

Description
Price

1

PAN, OIL

11511-08J00

$271.45

2

BOLT

01547-0625A

$2.01

3

GASKET (5.8X13X1.2)

09168-06023

$2.01

4

PLUG (14X20) | OIL DRAIN

09247-14036

$5.58

5

GASKET (13.8X18.8X4.8)

09168-14002

$2.83

6

PLUG (10X10)

09248-10010

$3.82

7

GASKET (10X14X3.6)

09168-10002

$1.96

8

CAP, OIL RELIEF VALVE

11512-44G00

$24.83

9

BOLT

01547-0620A

$2.01

10

STRAINER ASSY,ENG OIL

16520-44G00

$61.78

11

BOLT

01550-0616A

$1.97

12

O RING (D:2.62,ID:20.3)

09280-19008

$4.97

13

VALVE ASSY, OIL RELIEF

16440-24F00

$45.80

14

O RING (D:1.9,ID:13)

09280-13004

$2.19

15

PUMP ASSY,ENG OIL

16400-35F00

$181.87

16

O RING

16491-35F00

$5.69

17

BOLT

01547-0620A

$2.01

18

GEAR, OIL PUMP DRIVE (NT:33)

16321-35F01

$78.32

19

GEAR, OIL PUMP DRIVEN (NT:35)

16331-35F00

$83.62

20

SHIM (10X18X0.5)

09181-10158

$1.97

21

PIN (4X15.8)

09261-04009

$1.50

22

CIRCLIP

08331-31109

$1.77

23

SWITCH ASSY,OIL PRESSURE This part replaces 37820-33D10.

37820-33D11

$27.58

24

BOLT

37822-33D00

$4.92

25

PIPE, OIL GALLERY

11281-44G00

$15.63

26

O RING (D:1.9,ID:13)

09280-13004

$2.19
