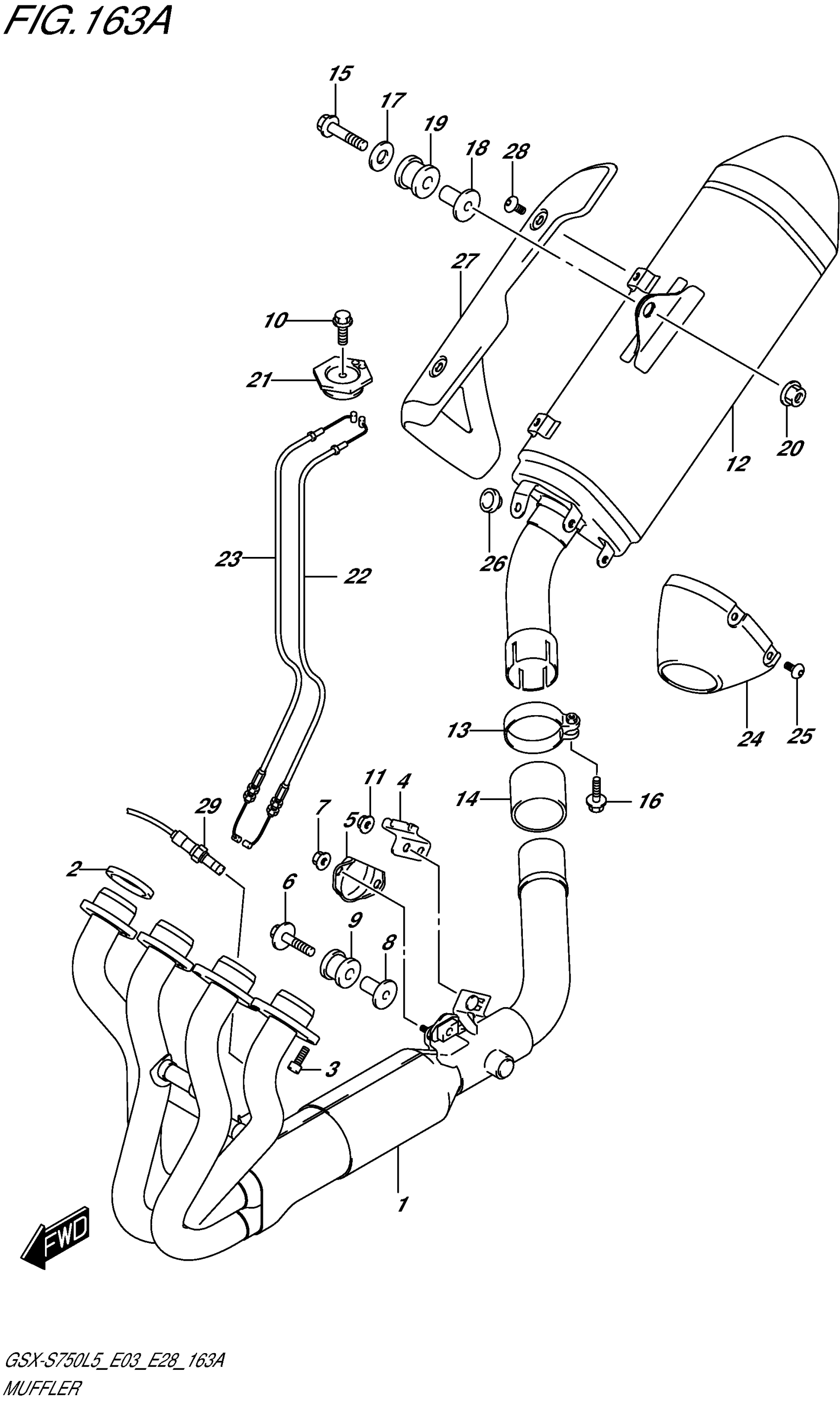

Suzuki GSX-S750L5 (2015) MUFFLER Diagram

#

Description
Price

1

EXHAUST

14100-08J00

Unavailable

2

GASKET This part replaces 14181-46E00.

14181-46E10

$7.22

3

BOLT (8X25)

09106-08165

$4.03

4

BRACKET, EXHAUST VALVE CABLE

14250-21H00

$9.90

5

COVER, EXHAUST VALVE

14280-08J00

$27.85

6

BOLT (8X45)

09118-08152-A05

$5.24

7

NUT (M6)

09159-06100

$2.81

8

SPACER (8.6X12X24.2)

09180-08152

$5.83

9

CUSHION

09320-12077

$11.78

10

BOLT

01547-0516A

$1.55

11

NUT

08316-1006A

$2.19

12

BODY, MUFFLER

14310-08J00-H01

Unavailable

13

CLAMP,MUF CONN

14459-08J00

$24.60

14

CONNECTOR, MUFFLER

14771-42F31

$27.33

15

BOLT (8X45)

09103-08358

$3.42

16

BOLT (8X40)

09103-08392

$3.62

17

WASHER (8.5X28X1.5)

09160-08142

$2.76

18

SPACER (8.6X12X24.2)

09180-08152

$5.83

19

CUSHION

09320-12048

$5.11

20

NUT

08361-2508A

$1.97

21

PULLEY, CONTROLLER

11269-18G01

$28.78

22

CABLE, EXHAUST VALVE NO.1

11276-08J00

Unavailable

23

CABLE, EXHAUST VALVE NO.2

11277-08J00

Unavailable

24

COVER, MUFFLER FRONT

14770-08J00

Unavailable

25

SCREW (6X10)

09139-06078

$2.79

26

CUSHION

09321-10018

$5.45

27

COVER, MUFFLER CENTER

14780-08J00

$190.40

28

SCREW (6X10)

09139-06122

$3.04

29

SENSOR, OXYGEN

18213-18H10

$388.57
