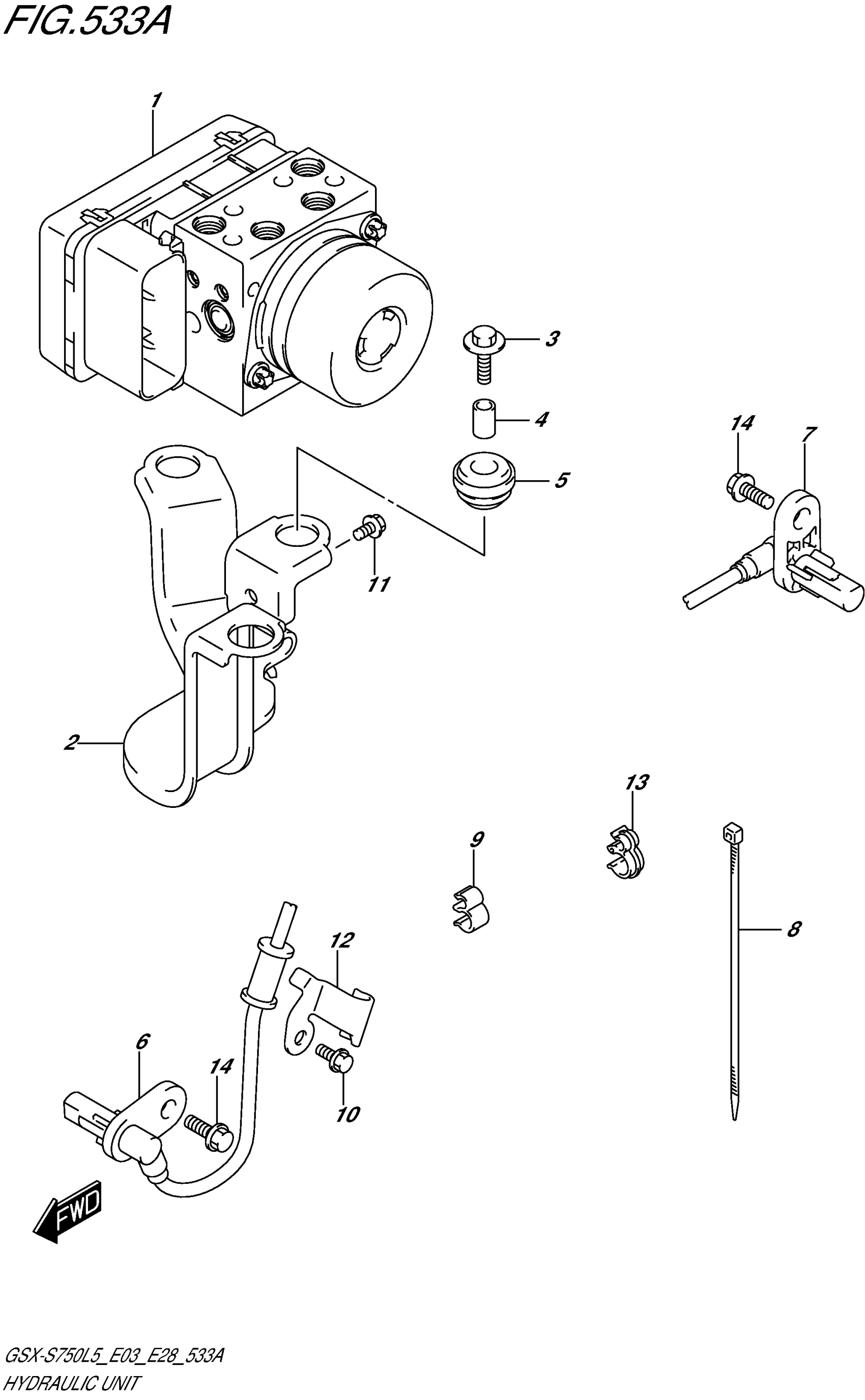

Suzuki GSX-S750L5 (2015) HYDRAULIC UNIT (GSX-S750AL5 E28) Diagram

#

Description
Price

1

UNIT ASSY, HYDRAULIC ABS

55610-08J01

Unavailable

2

HOLDER, HYDRAULIC UNIT

55660-08J00

Unavailable

3

BOLT (6X25)

09116-06150

$2.59

4

SPACER, HYDRAULIC UNIT

55662-10G00

Unavailable

5

RUBBER, HYDR UNIT MTG

55663-10G10

Unavailable

6

SENSOR, FRONT WHEEL ABS

55710-08J00

Unavailable

7

SENSOR, REAR WHEEL ABS

65710-08J00

Unavailable

8

CLAMP (L:145)

09407-14407

$3.57

9

CLAMP

09408-00266

$2.51

10

BOLT

01547-0612A

$2.03

11

BOLT

01547-0610A

$2.45

12

CLAMP, SENSOR LEAD FRONT NO.1

55731-08J00

Unavailable

13

CLAMP

09408-00242

Unavailable

14

BOLT (8X16)

01550-0816A

$2.32
