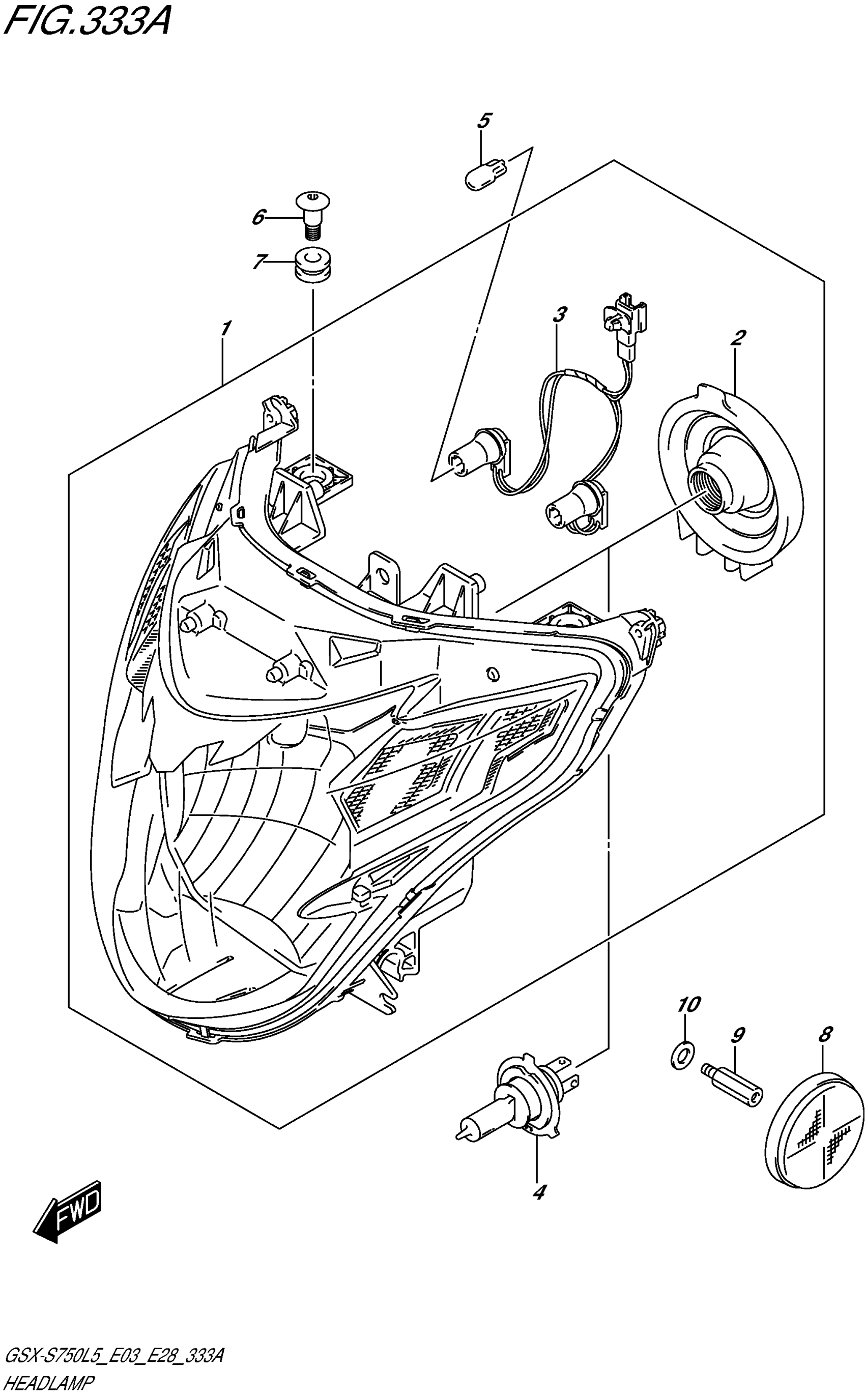

Suzuki GSX-S750L5 (2015) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY

35100-08J10-999

$462.75

2

COVER, SOCKET

35125-77A00

$13.74

3

CORD ASSY

36118-08J00

$51.75

4

BULB (12V,60/55W) This part replaces 09471-12185.

09471-12060

$25.15

5

.BULB (12V5W)

09471-12216

$5.36

6

SCREW (6X20)

09139-06126

$4.04

7

CUSHION

09320-09501

$2.03

8

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

$15.23

9

BOLT

09119-06109

$13.28

10

WASHER (8.5X18X1)

09160-08043

$1.83
