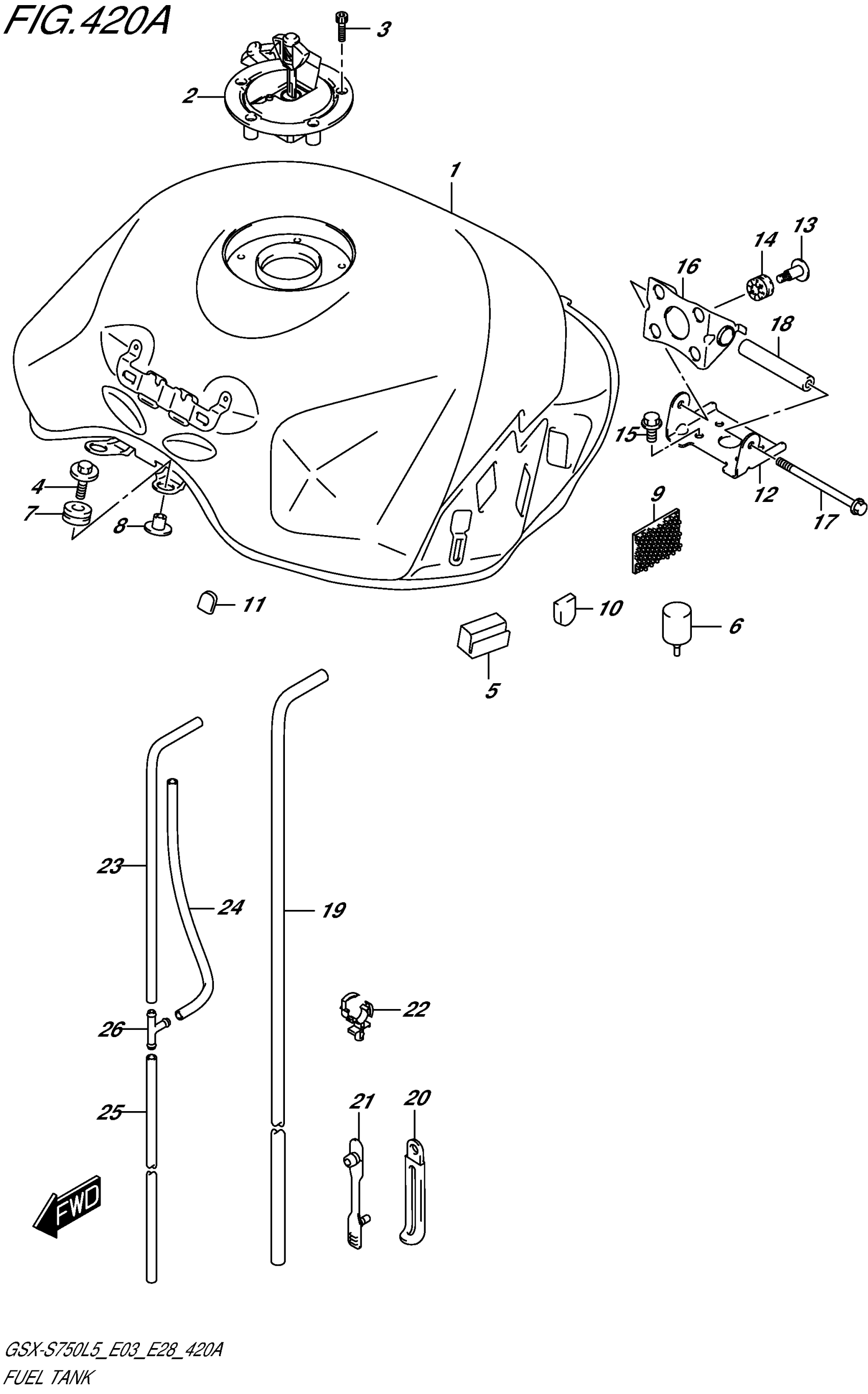

Suzuki GSX-S750L5 (2015) FUEL TANK Diagram

#

Description
Price

1

TANK ASSY,FUEL( | FOR YKV This part replaces 44100-08J01-YKV.

44100-08J02-YKV

$1,196.85

1

TANK ASSY,FUEL | FOR AJX This part replaces 44100-08J01-YWW.

44100-08J02-YWW

$1,219.42

2

CAP SET,FUEL TA This part replaces 44200-16850.

44200-16852

$118.21

3

BOLT (5X20)

09106-05017

$2.83

4

BOLT

01560-0625A

$2.72

5

CUSHION, FUEL TANK SIDE This part replaces 44541-08J00.

44541-08J01

$5.45

6

CUSHION,FUEL TANK RR

44542-41G00

$7.69

7

CUSHION,FUEL TANK FRONT This part replaces 44511-16G00.

44511-16G01

$4.11

8

SPACER, FUEL TANK FRONT

44512-16G00

$7.44

9

FASTENER

44572-13G00

$11.07

10

CUSHION,FUEL TANK COVER SIDE This part replaces 44542-08J00.

44542-08J01

$3.65

11

CUSHION, TANK COVER CENTER

44543-08J00

Unavailable

12

BRACKET, FUEL TANK REAR NO.2

44550-08J00

$16.23

13

SCREW (6X22)

09139-06191

$4.03

14

CUSHION

09320-08071

$3.25

15

BOLT

01550-0612A

$1.97

16

BRACKET,FUEL TANK

44530-41G01

$40.55

17

BOLT

07120-0695A

$2.58

18

SPACER, FUEL TANK REAR

44561-18G00

$16.96

19

HOSE, FUEL TANK DRAIN

44423-08J01

Unavailable

20

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

21

CLAMP (L:118)

09407-05406

$1.49

22

CLAMP

09403-18307

$3.03

23

HOSE, BREATHER NO.1

44424-08J01

Unavailable

24

HOSE,FUEL TANK BRTHR NO.3 This part replaces 44424-15H10.

44424-15H11

$13.72

25

HOSE,5X10X600 | L:600->260 This part replaces 09352-50823-600.

44421-13ER0

$10.06

26

3 WAY

09367-06007

$3.46
