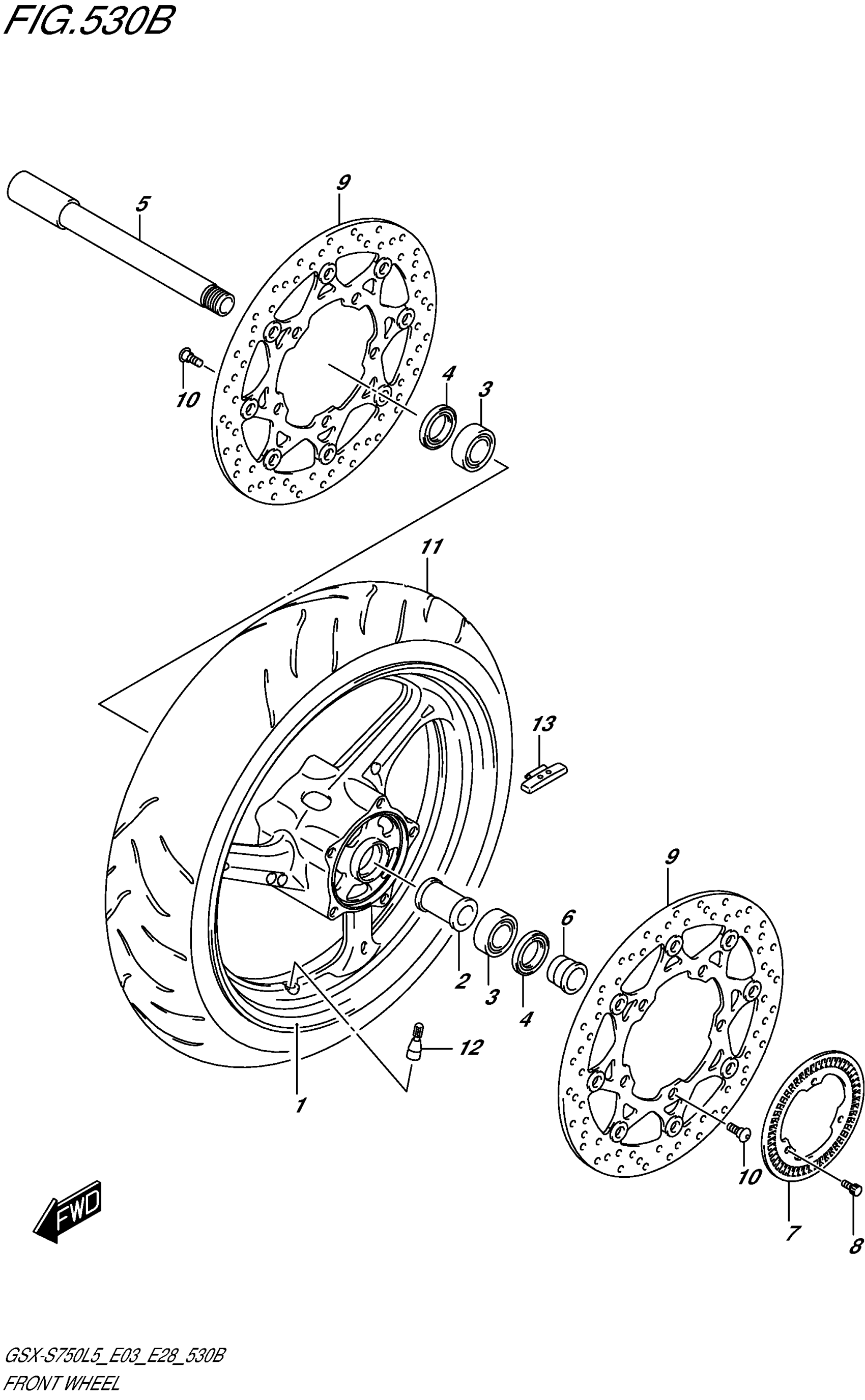

Suzuki GSX-S750L5 (2015) FRONT WHEEL (GSX-S750AL5 E28) Diagram

#

Description

Price

1

WHEEL, FRONT (17M/CXMT3.50) (BLACK)

54111-44G10-019

Unavailable

2

SPACER, FRONT WHEEL BEARING

54731-44G00

Unavailable

3

BEARING This part replaces 09262-22035.

09262-22049

$43.81

4

SEAL,OIL This part replaces 09283-28016.

09283-28028

$9.13

5

AXLE, FRONT

54711-44G00

$155.58

6

SPACER, FRONT AXLE

54751-44G00

Unavailable

7

RING, SPEED SENSOR FRONT

54162-27G00

$140.15

8

BOLT

07130-0512A

$2.19

9

DISC,FR BRAKE

59210-44G11

$415.82

10

BOLT (8X21)

09106-08160

$3.57

11

TIRE, FRONT (120/70ZR17M/C 58W)

55110-08J00

$433.70

12

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

13

BALANCER, WHEEL NO.1 | 10G

55411-22H00

$8.60

13

BALANCER, WHEEL NO.2 | 20G

55412-22H00

$10.07

13

BALANCER, WHEEL NO.3 | 30G

55413-22H00

$11.47
