2015 Suzuki GSX-S750L5 Front Fork Damper Diagram

← All diagrams

Find the part on the Front Fork Damper diagram for your 2015 Suzuki GSX-S750L5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

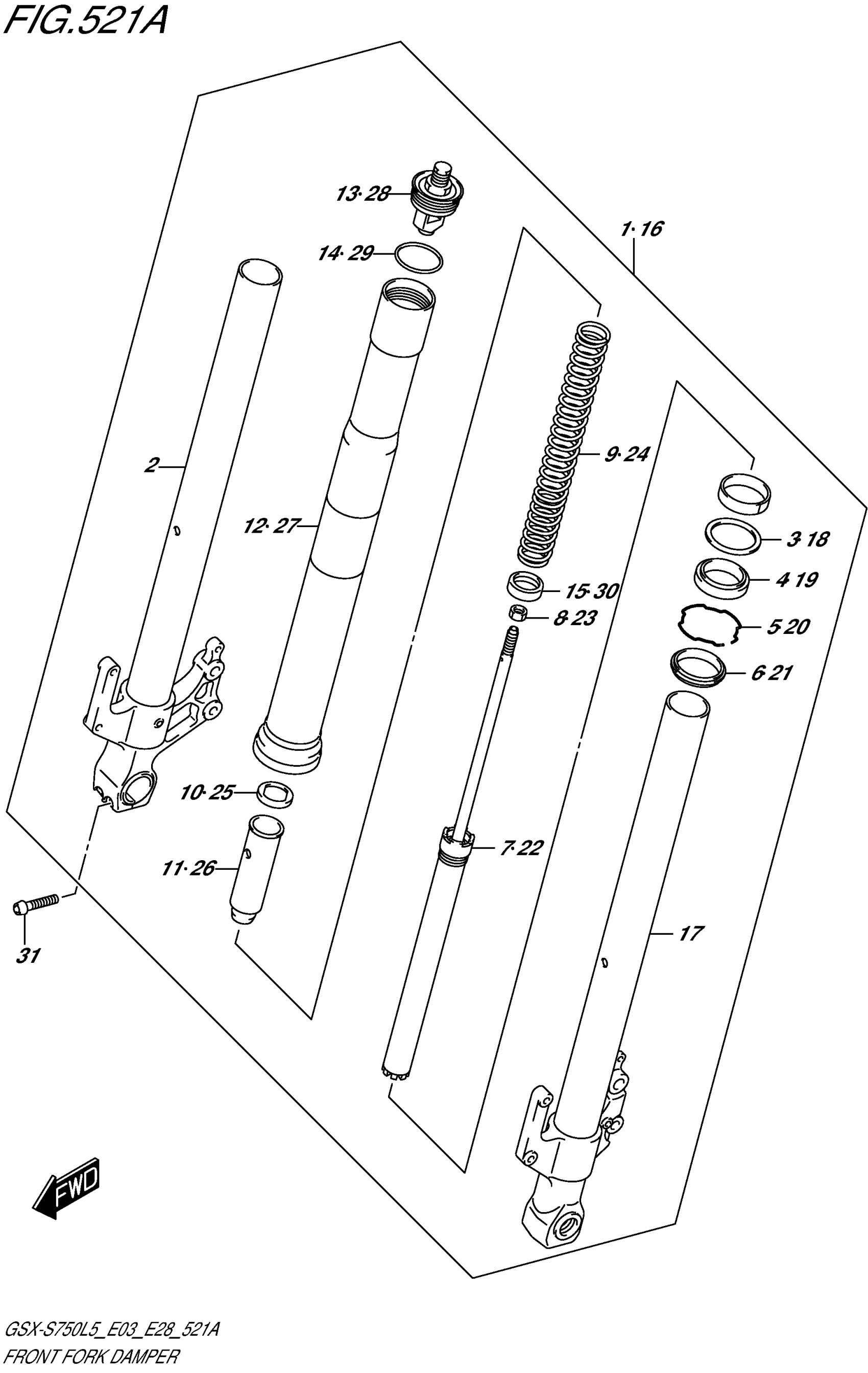

2015 Suzuki GSX-S750L5 Front Fork Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DAMPER ASSY, FRONT FORK RH

51103-08J00

1
Out of stock

2

TUBE, INNER RH

51110-08J00

1
Out of stock

3

WASHER

51158-05A00

1
Out of stock

4

OIL SEAL

51153-10G50

1
Out of stock

5

RING, OIL SEAL STOPPER

51156-49440

1
Out of stock

6

SEAL, DUST

51173-14F00

1
Out of stock

7

CYLINDER

51146-08J00

1
Out of stock

8

.NUT, ROD

51352-13A60

1
Out of stock

9

SPRING

51171-08J00

1
Out of stock

10

GUIDE, SPRING

51158-40F30

1
Out of stock

11

SPACER, SPRING

51176-40F30

1
Out of stock

12

TUBE, OUTER

51130-08J00

1
Out of stock

13

CAP

51351-08J00

1
Out of stock

14

O RING

51117-39G20

1
Out of stock

15

SEAT,SPRING

51178-08J00

1
Out of stock

16

DAMPER ASSY, FRONT FORK LH

51104-08J00

1
Out of stock

17

TUBE, INNER LH

51120-08J00

1
Out of stock

18

WASHER

51158-05A00

1
Out of stock

19

OIL SEAL

51153-10G50

1
Out of stock

20

RING, OIL SEAL STOPPER

51156-49440

1
Out of stock

21

SEAL, DUST

51173-14F00

1
Out of stock

22

CYLINDER

51146-08J00

1
Out of stock

23

.NUT, ROD

51352-13A60

1
Out of stock

24

SPRING

51171-08J00

1
Out of stock

25

GUIDE, SPRING

51158-40F30

1
Out of stock

26

SPACER, SPRING

51176-40F30

1
Out of stock

27

TUBE, OUTER

51130-08J00

1
Out of stock

28

CAP

51351-08J00

1
Out of stock

29

O RING

51117-39G20

1
Out of stock

30

SEAT,SPRING

51178-08J00

1
Out of stock

31

BOLT

51166-40H20

4
Out of stock
