2015 Suzuki GSX-S750L5 Frame Cover Diagram

← All diagrams

Find the part on the Frame Cover diagram for your 2015 Suzuki GSX-S750L5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

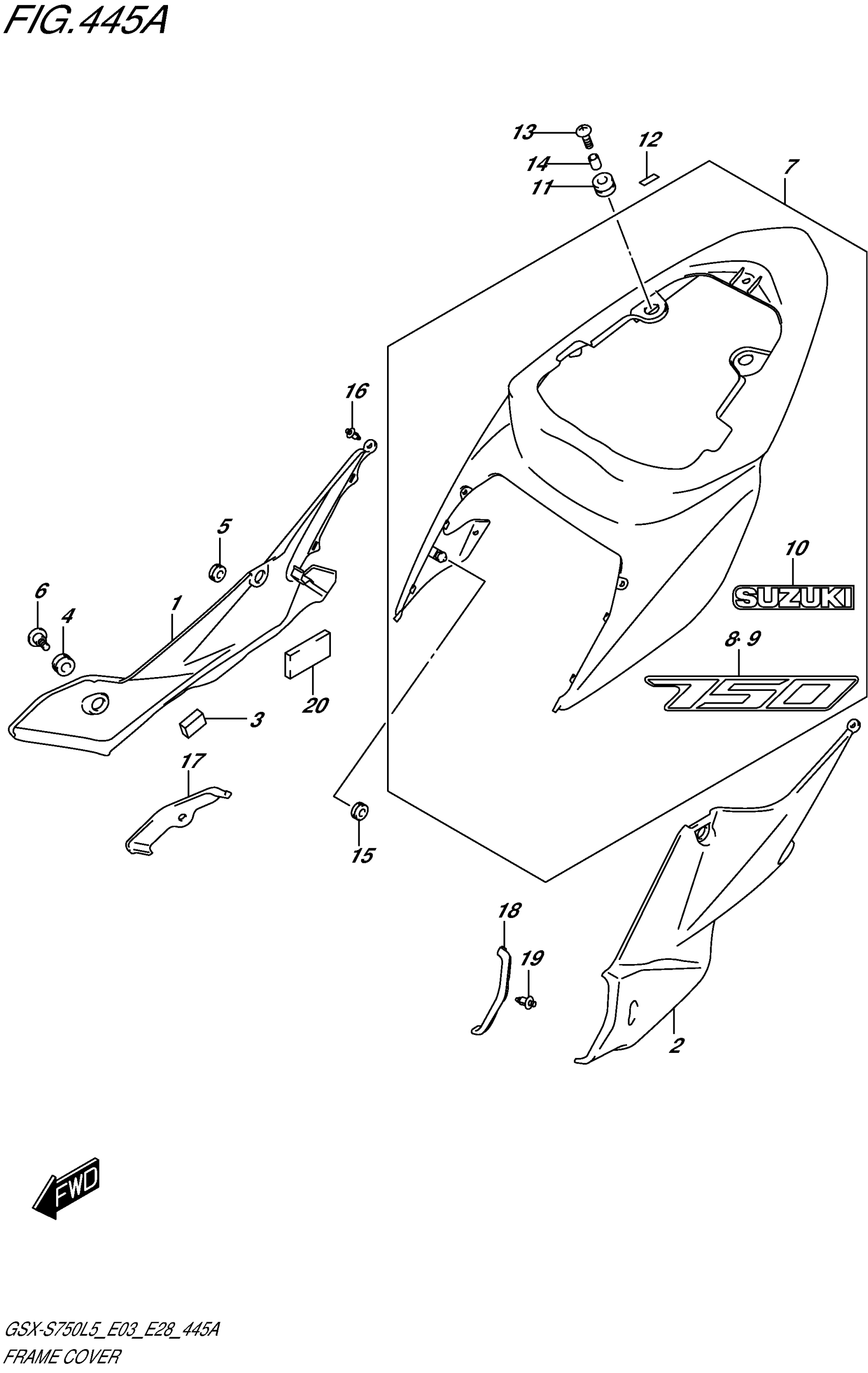

2015 Suzuki GSX-S750L5 Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER,FRAME FR, This part replaces 47511-08J00-291.

47511-08J01-291

1
Out of stock

2

COVER,FRAME FR, This part replaces 47611-08J00-291.

47611-08J01-291

1
Out of stock

3

CUSHION

94422-06G00

2
Out of stock

4

CUSHION

09320-09016

2
Out of stock

5

CUSHION

47113-37H00

2
Out of stock

6

SCREW (6X20)

47118-08J00

2
Out of stock

7

COVER SET,FRAME | FOR AJX This part replaces 47310-08J00-AJX.

47310-08J02-AJX

1
Out of stock

7

COVER SET,FRAME | FOR YKV This part replaces 47310-08J20-4TX.

47310-08J21-4TX

1
Out of stock

8

EMBLEM, "750" RH (BLACK/WHITE) | FOR AJX

68161-08J00-AHS

1
Out of stock

8

EMBLEM, "750" RH (RED/BLACK) | FOR YKV

68161-08J00-A39

1
Out of stock

9

EMBLEM, "750" LH (BLACK/WHITE) | FOR AJX

68171-08J00-AHS

1
Out of stock

9

EMBLEM, "750" LH (BLACK) | FOR YKV

68171-08J00-A39

1
Out of stock

10

EMBLEM,SUZUKI | FOR AJX This part replaces 68171-28H00-YU8.

68171-28H01-YU8

1
Out of stock

10

EMBLEM,"SUZUKI" | FOR YKV This part replaces 68171-28H10-CTY.

68171-28H11-CTY

1
Out of stock

11

CUSHION (10X24X13) This part replaces 47312-37H00.

47312-37H10

2
Out of stock

12

TAPE, FRAME COVER CENTER

94443-06G00

4
Out of stock

13

SCREW (6X20)

09136-06105

2
Out of stock

14

SPACER (6.5X10X7)

09180-06283

2
Out of stock

15

CUSHION

09320-08018

2
Out of stock

16

CLIP (BLACK)

09409-06314-5PK

4
Out of stock

17

COVER,FRAME TOP RH

47711-08J00

1
Out of stock

18

COVER,FRAME TOP LH

47811-08J00

1
Out of stock

19

CLIP

09409-07333

2
Out of stock

20

PROTECTOR (50X50X5) This part replaces 33652-21G10.

33652-20C00

2
Out of stock
