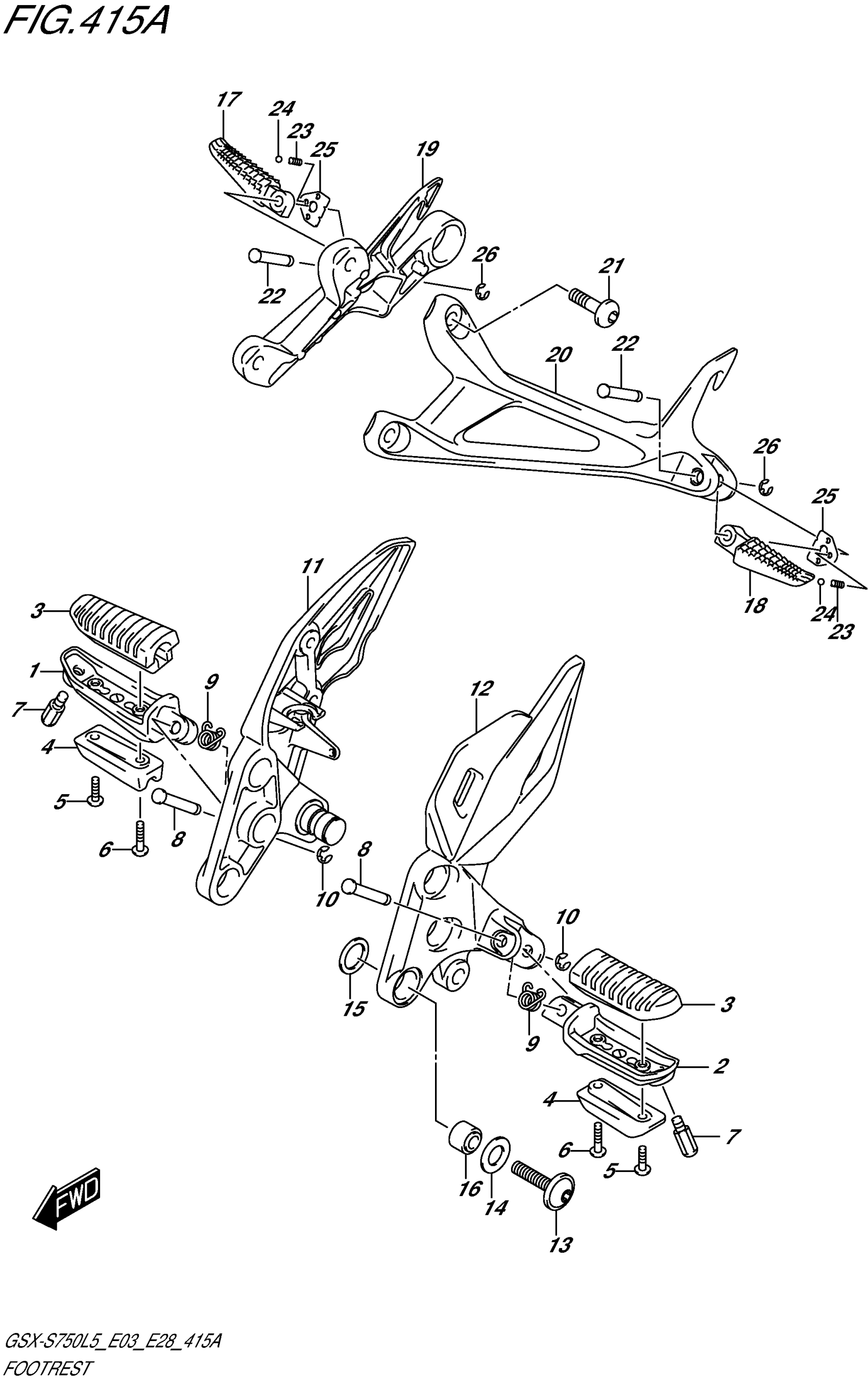

Suzuki GSX-S750L5 (2015) FOOTREST Diagram

#

Description
Price

1

BAR,FR FOOTREST,R

43511-44G10

$44.44

2

BAR,FR FOOTREST,L

43521-44G10

$43.20

3

RUBBER

43550-44G20

$37.22

4

BALANCER, FRONT FOOTREST

43536-44G00

$58.20

5

SCREW

02142-0525A

$2.43

6

SCREW

02142-0530A

$2.43

7

BOLT, BANK SENSOR

43576-48B02

$6.85

8

PIN

09208-08019

$2.77

9

SPRING

09448-14046

$3.77

10

E RING

08332-1106A

$1.43

11

BRACKET, FRONT FOOTREST RH

43510-08J00

$202.47

12

BRACKET, FRONT FOOTREST LH

43521-08J00

$184.17

13

BOLT (8X30)

09106-08147

$5.72

14

WASHER (13.7X24X2)

09161-13004

$3.58

15

WASHER (17.2X24X2.2)

09161-17002

$5.00

16

BUSH (8.4X20X16)

09319-08045

$18.21

17

BAR,PILLION FOOTREST,R This part replaces 43611-37H00.

43611-37H20

$50.40

18

BAR,PILLION FOOTREST,L This part replaces 43621-37H00.

43621-37H20

$48.75

19

BRACKET, PILLION FOOTREST RH (BLACK)

43811-08J00-YAP

$188.85

20

BRACKET, PILLION FOOTREST LH (BLACK)

43821-08J00-YAP

$188.85

21

BOLT (8X23)

09106-08186

$3.08

22

PIN

09208-08020

$3.62

23

SPRING

09440-05003

$1.48

24

BALL

06111-07004

$1.22

25

PLATE,PILLION FOOTREST

43816-01H20

$7.43

26

E RING

08332-1106A

$1.43
