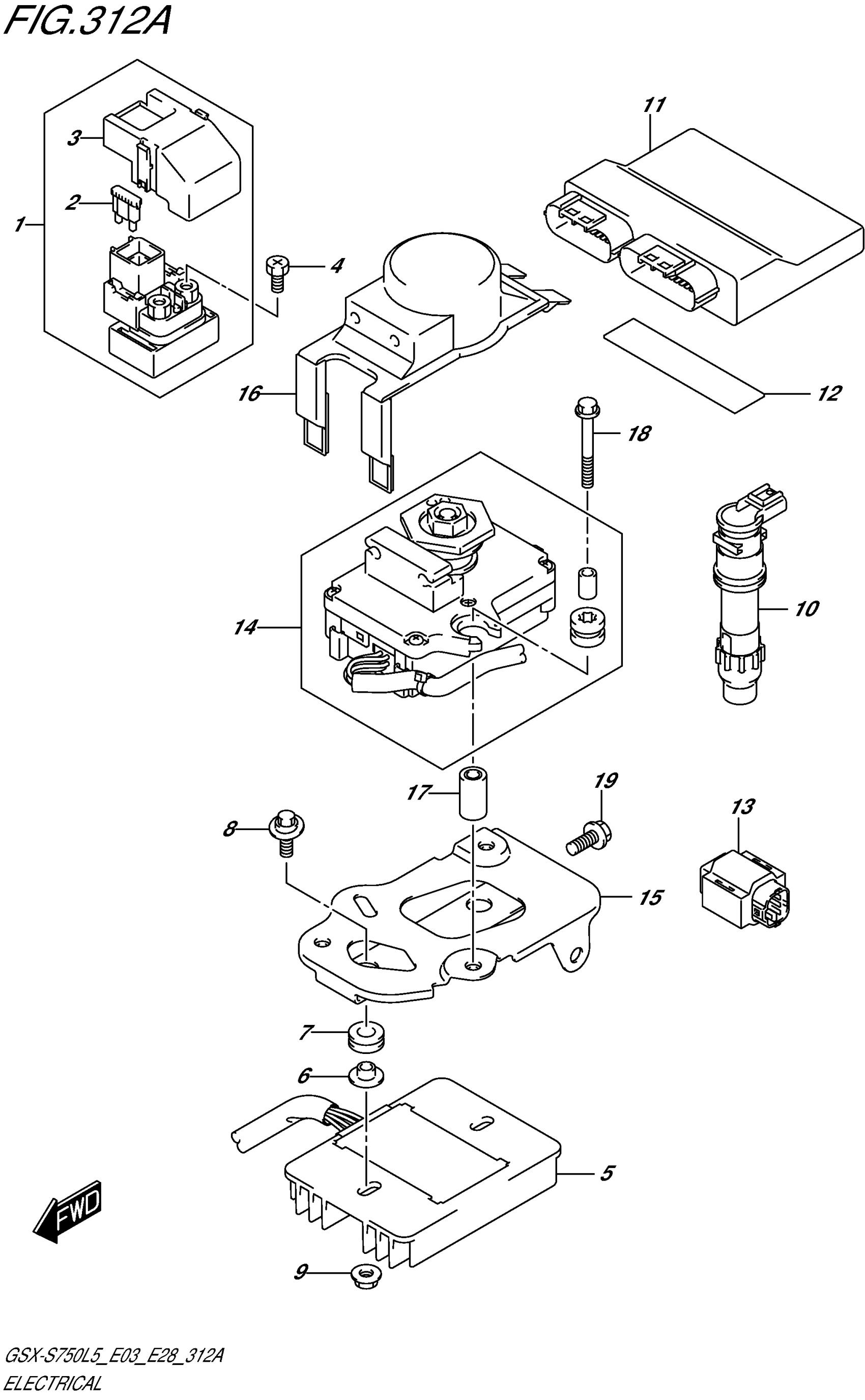

Suzuki GSX-S750L5 (2015) ELECTRICAL (GSX-S750L5 E03) Diagram

RELAY ASSY,STARTING MOTOR This part replaces 31800-06G00.

31800-06G02

$67.32

FUSE (30A)

09481-30101

$2.26

COVER

31861-47E00

$16.15

SCREW (6X8)

09128-06013

$1.49

RECTIFIER ASSY

32800-47H00

$263.17

SPACER (6.2X8.4X6.9)

09180-06325

$3.79

CUSHION (8.4X18X6)

09320-08066

$8.24

BOLT (6X20)

09116-06182

$2.30

NUT

08316-1006A

$2.19

COIL ASSY, IGNITION

33410-47H00

$150.98

CONTROL UNIT, FI This part replaces 32920-08J80.

32920-08J81

Unavailable

PROTECTOR (80X80X2) This part replaces 33652-38A10.

33652-07D00

$5.64

SENSOR ASSY,FUEL CUT

33960-27G00

$109.88

ACTUATOR ASSY This part replaces 33970-47H01.

33970-47H03

$422.63

HOLDER, ACTUATOR

33971-08J00

Unavailable

COVER, ACTUATOR

33973-48G01

Unavailable

SPACER (6.2X14.5X26)

09180-06345

$10.28

BOLT

01550-0650A

$2.85

SCREW This part replaces 02162-0616A.

02162-0616B

$2.03
