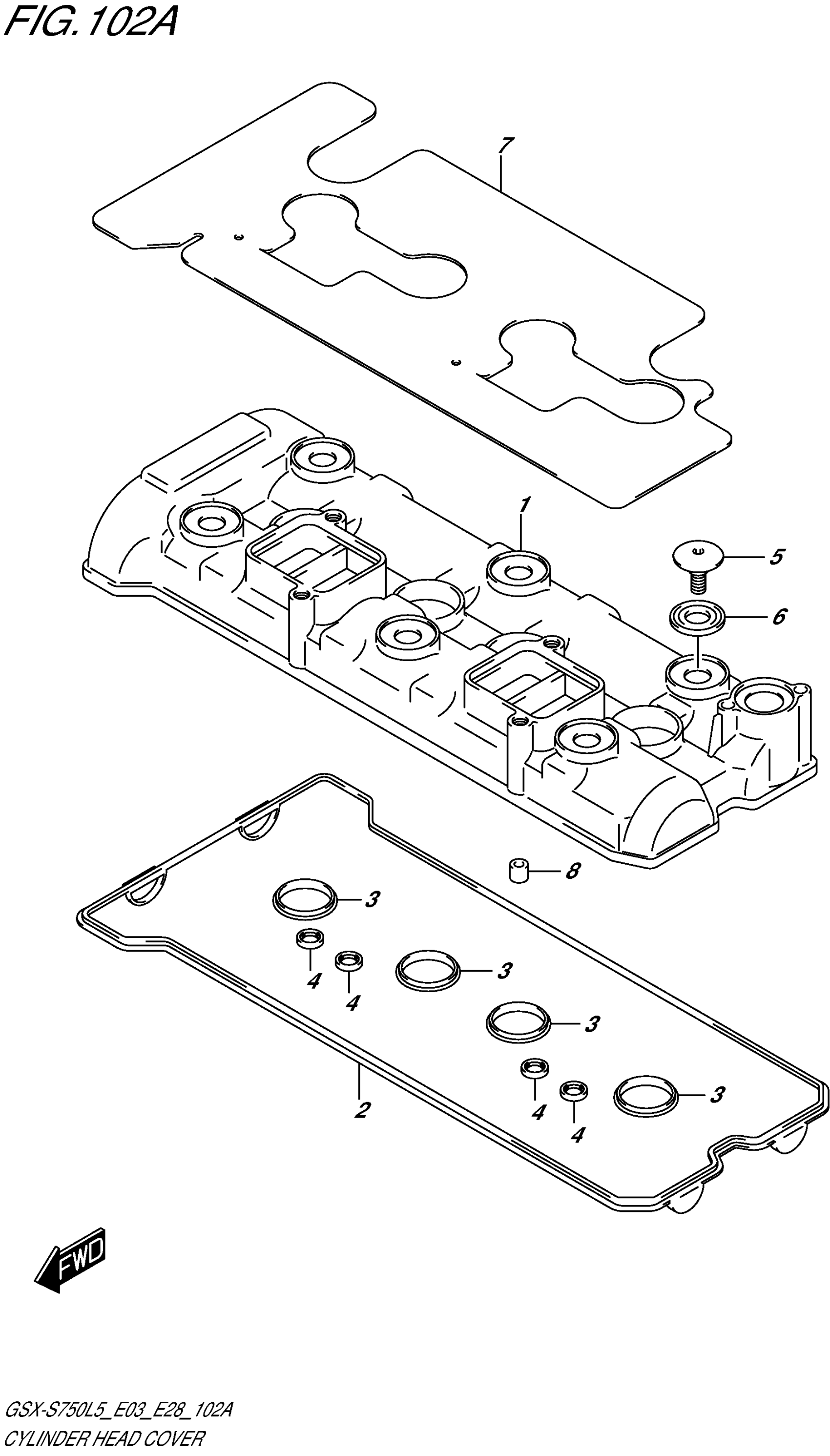

Suzuki GSX-S750L5 (2015) CYLINDER HEAD COVER Diagram

#

Description

Price

1

COVER, CYLINDER HEAD

11171-35F10

$467.33

2

GASKET, CYL HEAD COVER NO.1

11173-35F00

$49.57

3

GASKET, CYL HEAD COVER NO.2

11178-33E00

$6.20

4

GASKET, 2ND AIR PASSAGE

11182-35F10

$4.72

5

BOLT (7X17.5) This part replaces 09106-07009.

09106-07021

$4.50

6

WASHER

11191-27E00

$4.27

7

SHIELD,CYLINDER HEAD COVER

11179-08J00

Unavailable

8

PIN (8.2X10X13)

09206-10016

$8.04
