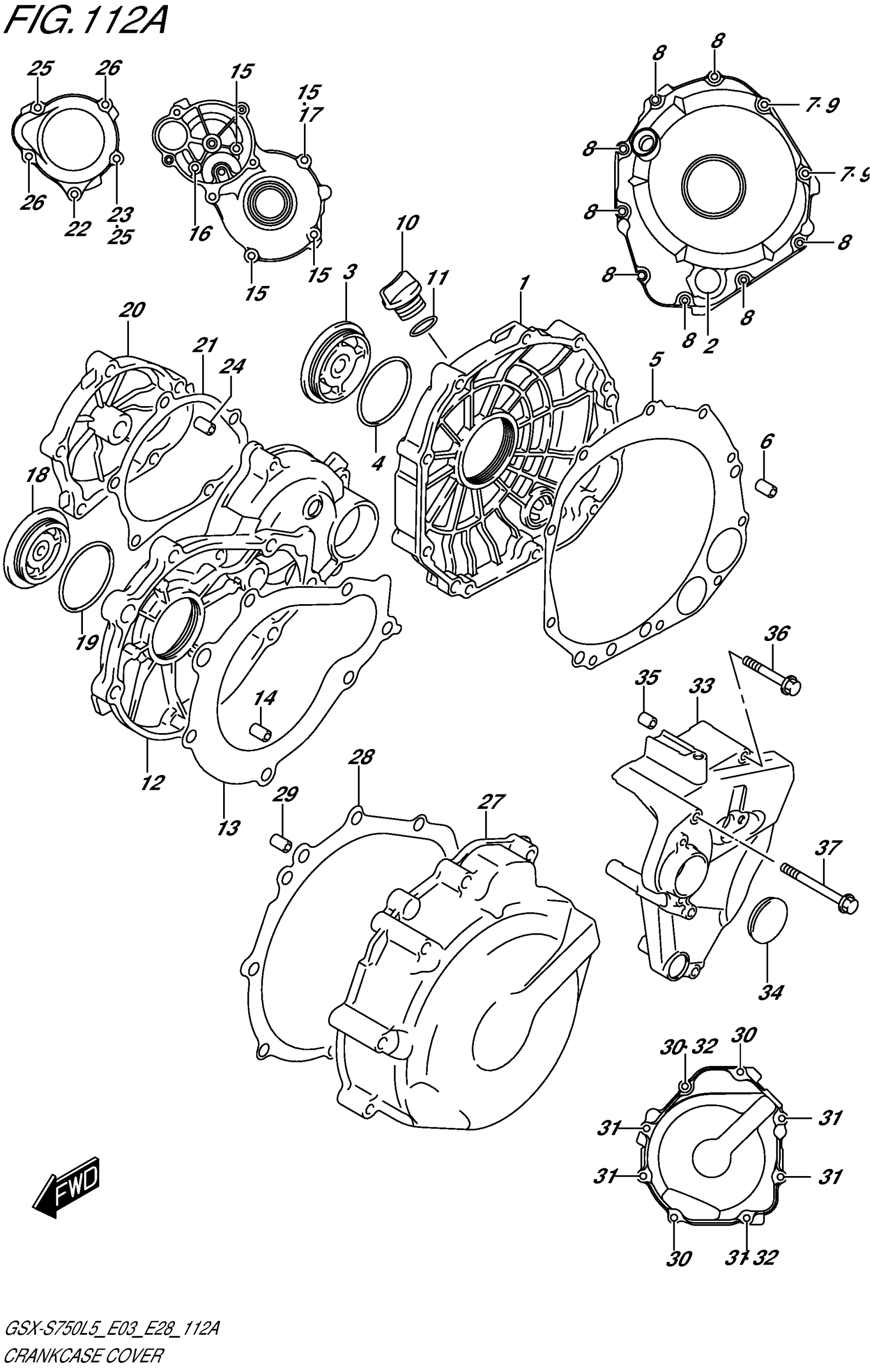

Suzuki GSX-S750L5 (2015) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11340-44G10

$258.18

2

LENS, OIL LEVEL CHECK

11971-33210

$18.20

3

CAP,CLUTCH RELEASE ADJUST

11342-41G10

$25.03

4

O RING

31156-17E00

$4.60

5

GASKET, CLUTCH COVER

11482-40F10

$15.69

6

PIN

04211-09189

$1.65

7

GASKET (5.8X13X1.2)

09168-06023

$2.35

8

BOLT (6X30)

09103-06213

$2.47

9

BOLT (6X40)

09103-06215

$2.78

10

PLUG,ENGINE OIL FILLER

11971-25D00

$5.11

11

O RING (D:3.1,ID:16.8)

09280-17003

$1.65

12

COVER,STARTER CLUTCH

11381-35F10

$258.32

13

GASKET, STARTER CLUTCH COVER

11491-33E02

$8.73

14

PIN

04211-09149

$1.65

15

BOLT (6X25)

09103-06212

$2.47

16

BOLT (6X35)

09103-06214

$2.48

17

GASKET (5.8X13X1.2)

09168-06023

$2.35

18

PLUG

09259-36021

$13.80

19

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.23

20

CAP,STRAINER IDLE GEAR

11382-33E10

$75.85

21

GASKET, STARTER IDLE GEAR CAP

11492-33E00

$7.22

22

BOLT (6X55)

09103-06216

$2.78

23

GASKET (5.8X13X1.2)

09168-06023

$2.35

24

PIN

04211-09149

$1.65

25

BOLT (6X25)

09103-06212

$2.47

26

BOLT (6X35)

09103-06214

$2.48

27

COVER,MAGNETO

11351-18G20

$144.40

28

GASKET, MAGNETO COVER

11483-18G00

$11.07

29

PIN

04211-09149

$1.65

30

BOLT (6X30)

09103-06213

$2.47

31

BOLT (6X45)

09103-06224

$2.70

32

GASKET (5.8X13X1.2)

09168-06023

$2.35

33

COVER, ENGINE SPROCKET

11361-08J00

$148.38

34

CAP (OD:36)

09250-30003

$3.89

35

PIN

04211-09129

$1.65

36

BOLT

01547-0665A

$2.32

37

BOLT

01547-0695A

$2.63
