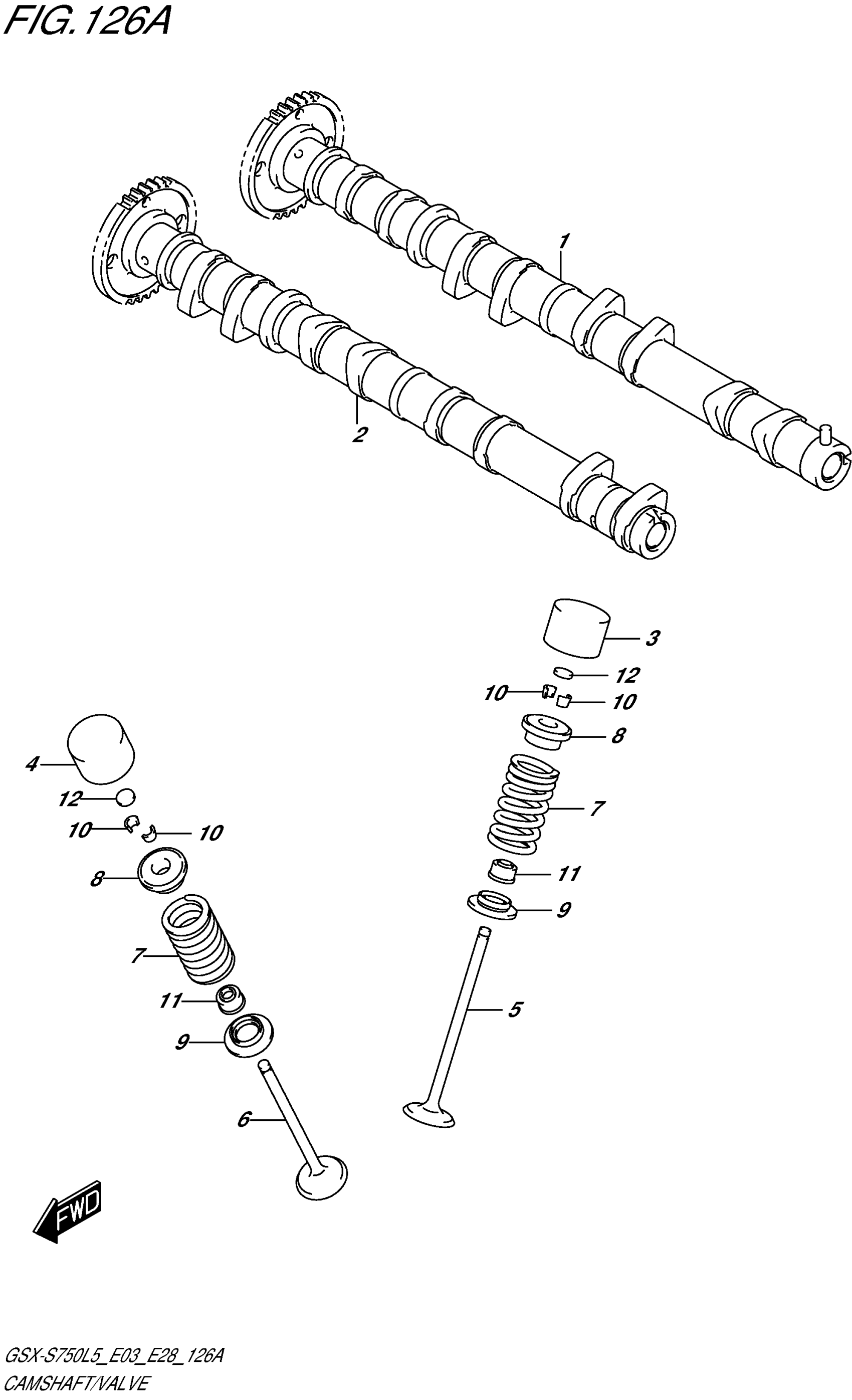

Suzuki GSX-S750L5 (2015) CAMSHAFT/VALVE Diagram

#

Description
Price

1

CAMSHAFT, INTAKE

12710-08J00

Unavailable

2

CAMSHAFT,EXHAUST (NT:34)

12720-08J00

Unavailable

3

TAPPET

12891-44G00

$77.92

4

TAPPET

12893-44G00

Unavailable

5

VALVE,INTAKE

12911-44G20

$45.05

6

VALVE,EXHAUST

12912-44G20

$55.82

7

SPRING,VALVE

12921-40F00

$17.12

8

RETAINER,VALVE SPRING

12931-35F10

$18.88

9

SEAT,VALVE SPRING

12933-35F10

$7.60

10

COTTER,VALVE

12932-05C00

$2.05

11

OIL SEAL (3.2X8.6X9)

09289-04003

$7.18

12

SHIM, TAPPET (T:1.20)

12892-05C00-120

$11.60

12

SHIM, TAPPET (T:1.25)

12892-05C00-125

$11.83

12

SHIM, TAPPET (T:1.30)

12892-05C00-130

$10.06

12

SHIM, TAPPET (T:1.35)

12892-05C00-135

$10.06

12

SHIM, TAPPET (T:1.40)

12892-05C00-140

$11.83

12

SHIM, TAPPET (T:1.45)

12892-05C00-145

$9.87

12

SHIM, TAPPET (T:1.50)

12892-05C00-150

$11.83

12

SHIM, TAPPET (T:1.55)

12892-05C00-155

$9.69

12

SHIM, TAPPET (T:1.60)

12892-05C00-160

$9.69

12

SHIM, TAPPET (T:1.65)

12892-05C00-165

$9.69

12

SHIM, TAPPET (T:1.70)

12892-05C00-170

$11.60

12

SHIM, TAPPET (T:1.75)

12892-05C00-175

$9.87

12

SHIM, TAPPET (T:1.80)

12892-05C00-180

$11.38

12

SHIM, TAPPET (T:1.85)

12892-05C00-185

$11.83

12

SHIM, TAPPET (T:1.90)

12892-05C00-190

$11.83

12

SHIM, TAPPET (T:1.95)

12892-05C00-195

$11.83

12

SHIM, TAPPET (T:2.00)

12892-05C00-200

$11.60

12

SHIM, TAPPET (T:2.05)

12892-05C00-205

$11.83

12

SHIM, TAPPET (T:2.10)

12892-05C00-210

$11.83

12

SHIM, TAPPET (T:2.15)

12892-05C00-215

$11.83

12

SHIM, TAPPET (T:2.20)

12892-05C00-220

$11.83

13

SHIM SET, TAPPET T:1.20, 1.25...2.95, 3.00 (5PCS.EACH) & CASE | OPT NOT ILLUSTRATED

12800-05830

$1,211.58

14

CASE, TAPPET SHIM | OPT NOT ILLUSTRATED

99000-69491

Unavailable
