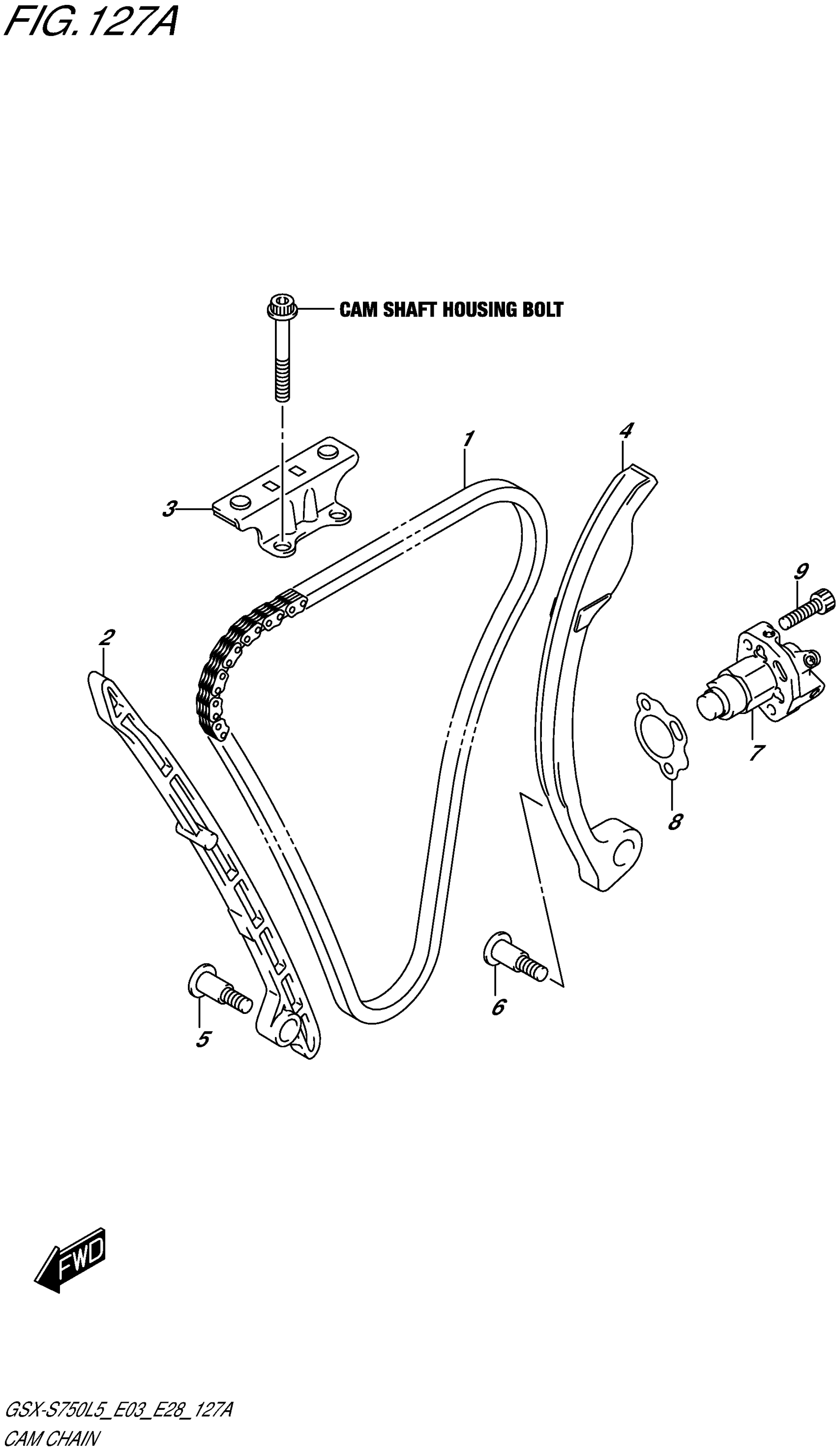

Suzuki GSX-S750L5 (2015) CAM CHAIN Diagram

#

Description

Price

1

CHAIN, CAM SHAFT DRIVE

12760-35F01

$185.53

2

GUIDE,CAM CHAIN NO.1

12771-30G00

$38.55

3

GUIDE,CAM CHAIN NO.2 This part replaces 12782-35F10.

12782-35F11

$22.80

4

TENSIONER, CAM CHAIN

12811-08J00

Unavailable

5

BOLT, TENSIONER & GUIDE

12812-26B02

$8.43

6

BOLT, CAN CHAIN TENSIONER

12812-31G00

$4.58

7

ADJUSTER ASSY,TENSIONER

12830-37H00

$262.45

8

GASKET, TENSIONER ADJUSTER

12837-02H00

$6.46

9

BOLT (6X25)

07130-0625A

$2.62
