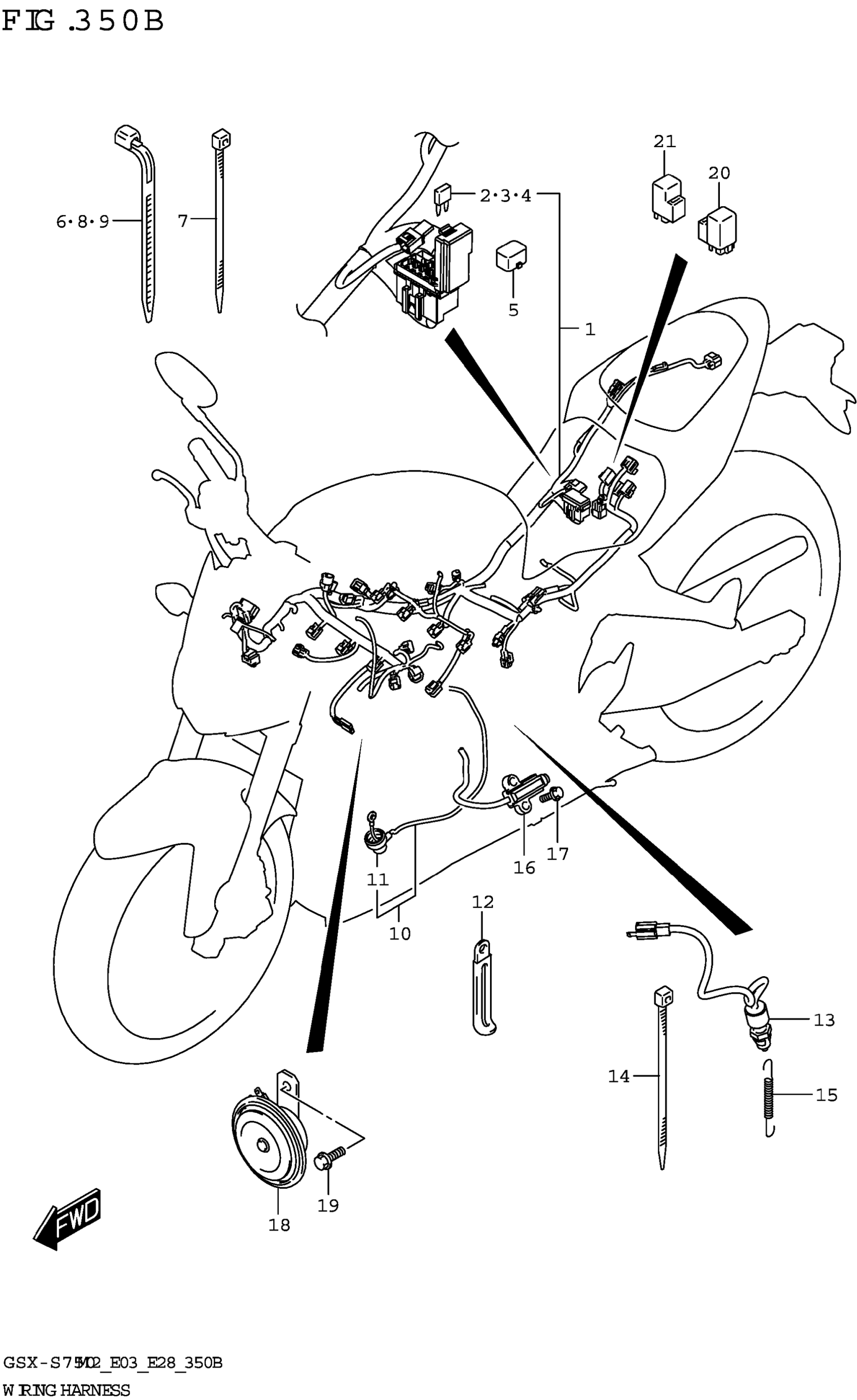

Suzuki GSX-S750AM2 (2022) WIRING HARNESS (GSX-S750A,GSX-S750ZA:E33) Diagram

#

Description
Price

1

HARNESS, WIRING

36610-13KB0

$919.85

2

.FUSE (10A)

09481-10501

$2.06

3

.FUSE (15A)

09481-15501

$2.02

4

.FUSE (30A)

09481-30501

$2.32

5

CAP,TS

36654-06J31

$14.53

6

CLAMP (L:235)

09407-25401

$4.66

7

CLAMP (L:145)

09407-14407

$3.57

8

CLAMP (L:125)

09407-14403

$2.26

9

CLAMP (L:190)

09407-19401

$3.05

10

WIRE, OIL PRESSURE SWITCH LEA

36851-23H01

Unavailable

11

.CAP,OIL PRESSURE SWITCH

36618-31J00

Unavailable

12

CLAMP (L:45)

09404-06429

$1.83

13

SWITCH ASSY,STOP LAMP

37740-45D00

$18.27

14

CLAMP (L:145)

09407-14407

$3.57

15

SPRING

09443-06012

$3.16

16

SWITCH ASSY,SIDE STAND This part replaces 37840-35F01.

37840-35F02

$56.65

17

BOLT (6X20)

01550-0620A

$1.97

18

HORN ASSY

38500-16G01

$87.70

19

BOLT (8X12)

01550-0812A

$2.32

20

RELAY ASSY | FOR FUEL PUMP

38740-24X50

$45.20

21

RELAY ASSY | FOR FAN MOTOR

38740-24X50

$45.20
