2022 Suzuki GSX-S750AM2 Stand Diagram

← All diagrams

Find the part on the Stand diagram for your 2022 Suzuki GSX-S750AM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

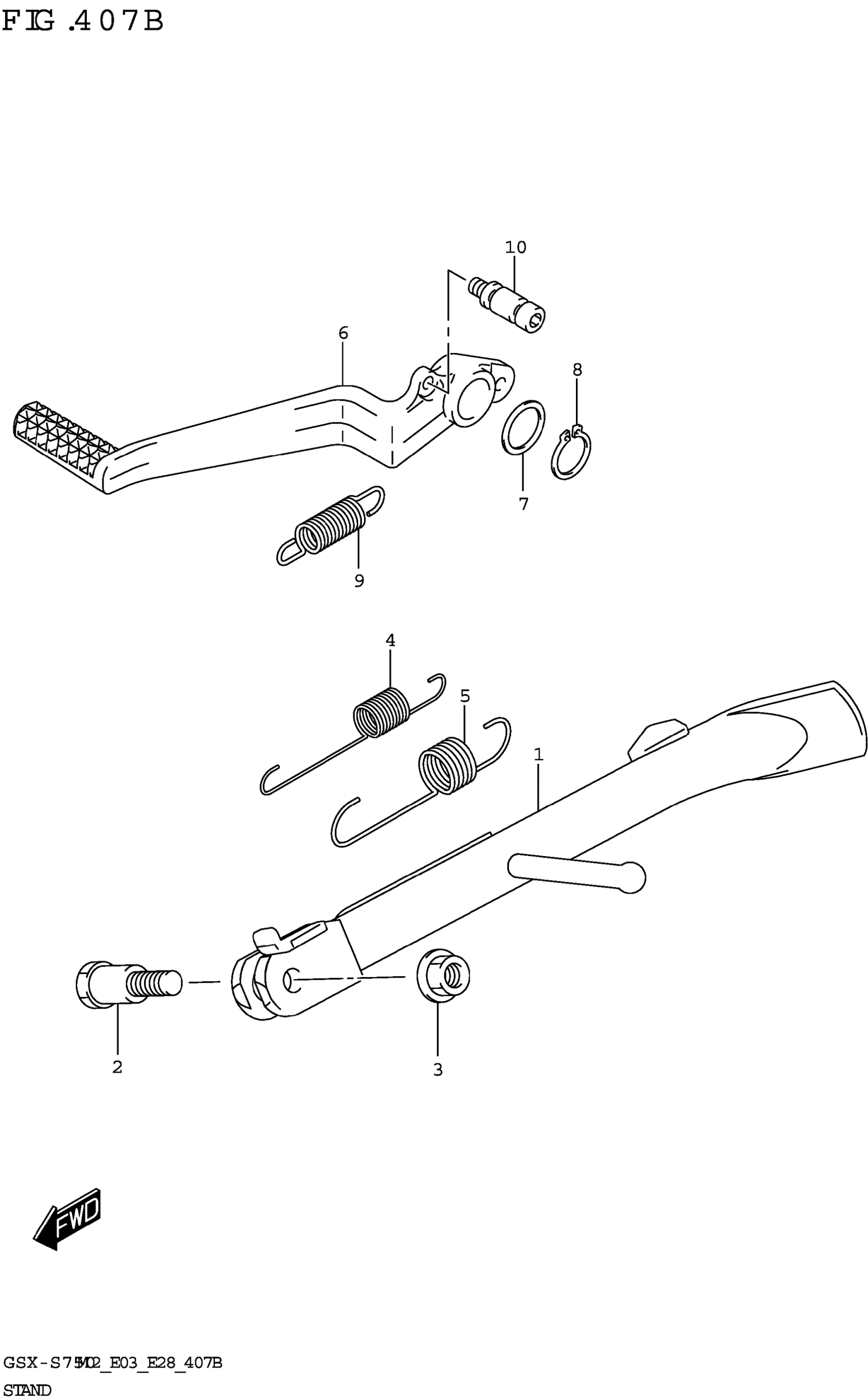

2022 Suzuki GSX-S750AM2 Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND, PROP

42310-04K10

1
Out of stock

2

BOLT (10X21)

09111-10059

1
Out of stock

3

NUT

08319-3110A

1
Out of stock

4

SPRING

09443-14058

1
Out of stock

5

SPRING

09443-19011

1
Out of stock

6

PEDAL, BRAKE

43111-08J10

1
Out of stock

7

WASHER (18X24X1.0)

09160-18022

1
Out of stock

8

CIRCLIP

08331-3118A

1
Out of stock

9

SPRING

09443-13032

1
Out of stock

10

HOOK,RETURN SPRING

43561-24F00

1
Out of stock
