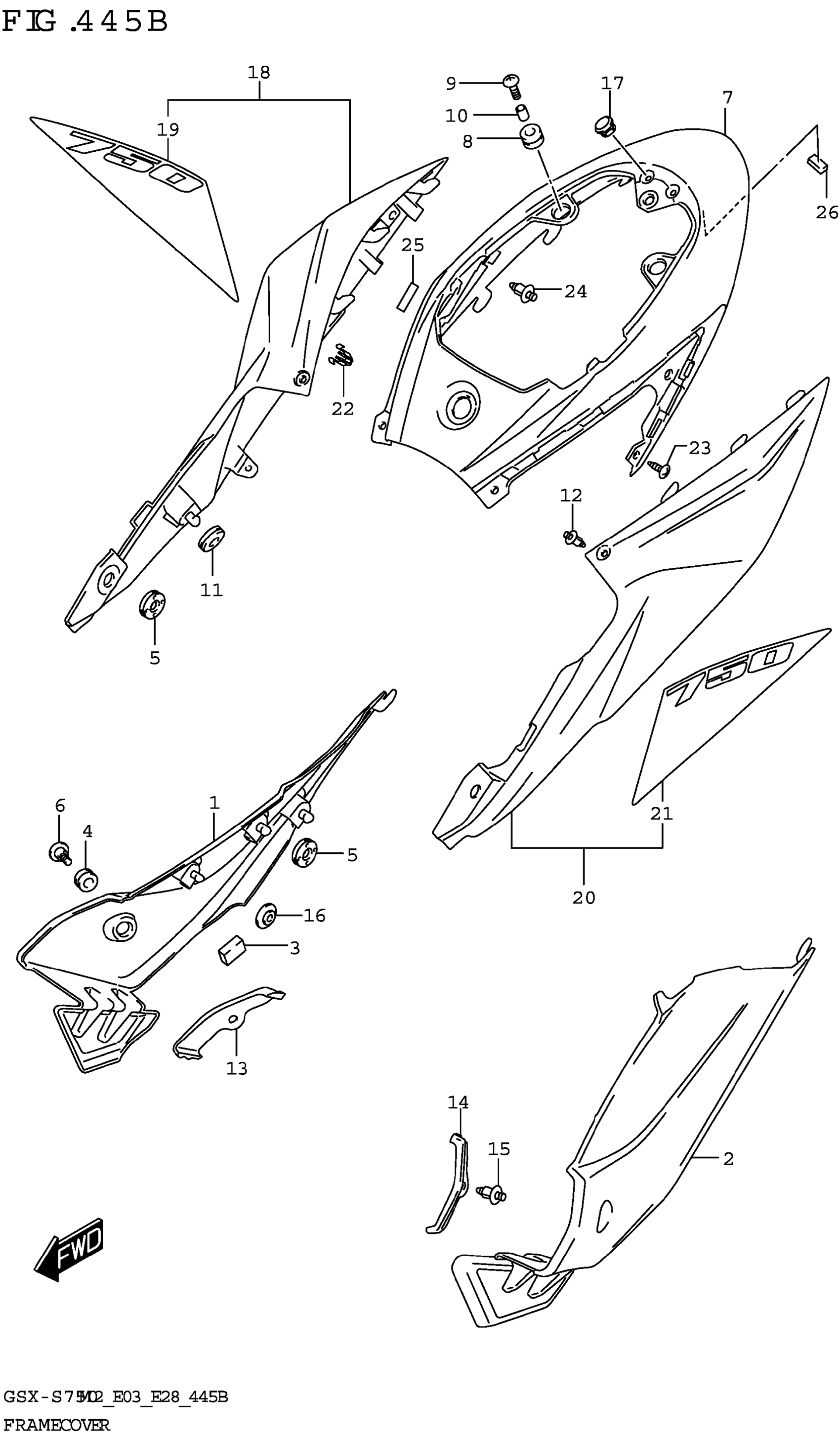

Suzuki GSX-S750AM2 (2022) FRAME COVER (GSX-S750Z,GSX-S750ZA) Diagram

#

Description
Price

1

COVER, FRAME FRONT RH

47511-13K00

$163.55

2

COVER, FRAME FRONT LH

47611-13K00

$98.78

3

CUSHION (20X30X8)

94422-06G00

$6.57

4

CUSHION (9X18X9.5)

09320-09016

$1.97

5

CUSHION (8X26X7)

09320-08028

$2.80

6

SCREW (6X20)

47118-08J00

$4.92

7

COVER,FRAME CENTER (BLACK)

47311-13K00-YVB

$226.05

8

CUSHION,FRAME COVER CTR

47312-37H20

$2.77

9

SCREW (6X20)

09136-06105

$1.99

10

SPACER (6.5X10X7)

09180-06283

$1.89

11

CUSHION (8x26x7)

09320-08018

$2.80

12

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

13

COVER,FRAME TOP RH

47711-08J00

$8.30

14

COVER,FRAME TOP LH

47811-08J00

$8.30

15

CLIP (D:2.4,ID:23.7)

09409-07333

$2.29

16

CUSHION

09320-06026

$4.45

17

CUSHION,SEAT MOUNT

45148-27J00

$19.43

18-1

COVER,FRAME,R (BLUE) | BODY COLOR:KEL

47110-13K60-YSF

$122.72

18-2

COVER,FRAME,R (BLACK) | BODY COLOR:BD7

47110-13K60-YVB

$130.00

18-3

COVER,FRAME,R (WHITE) | BODY COLOR:B55

47110-13K60-YUH

$142.72

19-1

.TAPE,FRAME COVER,R (YELLOW,B | ACK,BLUE) BODY COLOR:KEL

68135-13K80-B6K

$22.07

19-2

.TAPE,FRAME COVER,R (BLACK,GR | Y,BLUE) BODY COLOR:BD7

68135-13K80-B2B

Unavailable

19-3

.TAPE,FRAME COVER,R (YELLOW,B | ACK,WHITE) BODY COLOR:B55

68135-13K80-B6N

Unavailable

20-1

COVER,FRAME,L (BLUE) | BODY COLOR:KEL

47210-13K60-YSF

$139.23

20-2

COVER,FRAME,L (BLACK) | BODY COLOR:BD7

47210-13K60-YVB

$130.00

20-3

COVER,FRAME,L (WHITE) | BODY COLOR:B55

47210-13K60-YUH

$142.72

21-1

.TAPE,FRAME COVER,L (YELLOW,B | ACK,BLUE) BODY COLOR:KEL

68145-13K80-B6K

$24.13

21-2

.TAPE,FRAME COVER,L (BLACK,GR | Y,BLUE) BODY COLOR:BD7

68145-13K80-B2B

Unavailable

21-3

.TAPE,FRAME COVER,L (YELLOW,B | ACK,WHITE) BODY COLOR:B55

68145-13K80-B6N

Unavailable

22

CLIP (10.5X14.3)

09409-08326

$2.45

23

SCREW

03541-0512B

$1.77

24

CLIP (D:2.4,ID:23.7)

09409-07333

$2.29

25

CUSHION (10X30X2)

44894-24A00

$1.78

26

CUSHION (10X30X8)

63211-26G00

$11.00
