Description

Price

1

WHEEL, REAR (17M/CXMT5.50,BLA | K) BODY COLOR:KEL,B55

64111-13K00-019

$1,033.93

2

SPACER,RR WHEEL BEARING

64731-44G00

$51.33

3

BEARING

08123-6205B

$25.93

4

SEAL,OIL (37X52X8)

09284-37002

$7.85

5

DISC, REAR BRAKE

69211-13K00

$92.62

6

BOLT (8X21)

09106-08160

$3.57

7

RING,SPEED SENSOR FR (50T)

54162-27G00

$140.15

8

BOLT

07130-0512A

$2.19

9

AXLE, REAR

64711-13K00

$70.00

10

NUT

64721-13K00

$12.61

11

WASHER (22X46X3)

09160-22086

$5.53

12

SPACER,RR AXLE,R

64741-44G00

$29.87

13

SPACER,REAR AXLE LH

64751-08J00

$33.30

14

DRUM,RR SPROCKET

64610-47H00

$313.78

15

RETAINER,RR SPROCKET DRUM

64733-44G00

$29.15

16

BEARING (32X65X17)

09262-32024

$39.40

17

SEAL,OIL (39X65X7)

09285-39001

$10.62

18

ABSORBER,RR HUB SHOCK

64651-47H10

$25.52

19

SPROCKET,REAR (43T-525)

64511-14J00

$137.02

20

NUT

08319-3110A

$2.73

21

TIRE, REAR (180/55ZR17M/C 73W

65110-13K00

$461.50

22

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.85

23-1

BALANCER,WHEEL (10G)

55411-22H00

$8.60

23-2

BALANCER,WHEEL (20G)

55412-22H00

$10.07

23-3

BALANCER,WHEEL (30G)

55413-22H00

$11.47

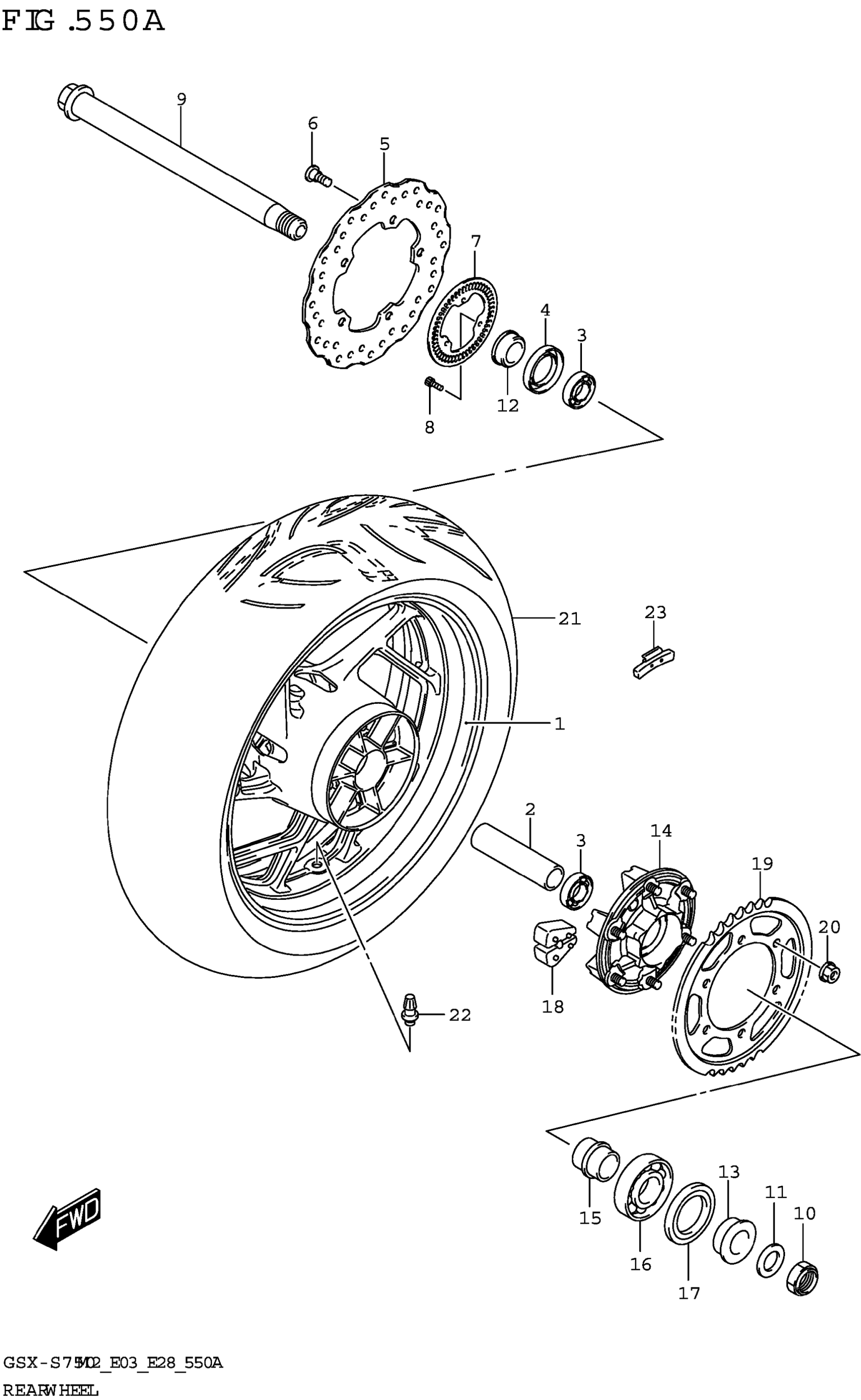

Suzuki GSX-S750AM2 (2022) REAR WHEEL (GSX-S750,GSX-S750A) Diagram
