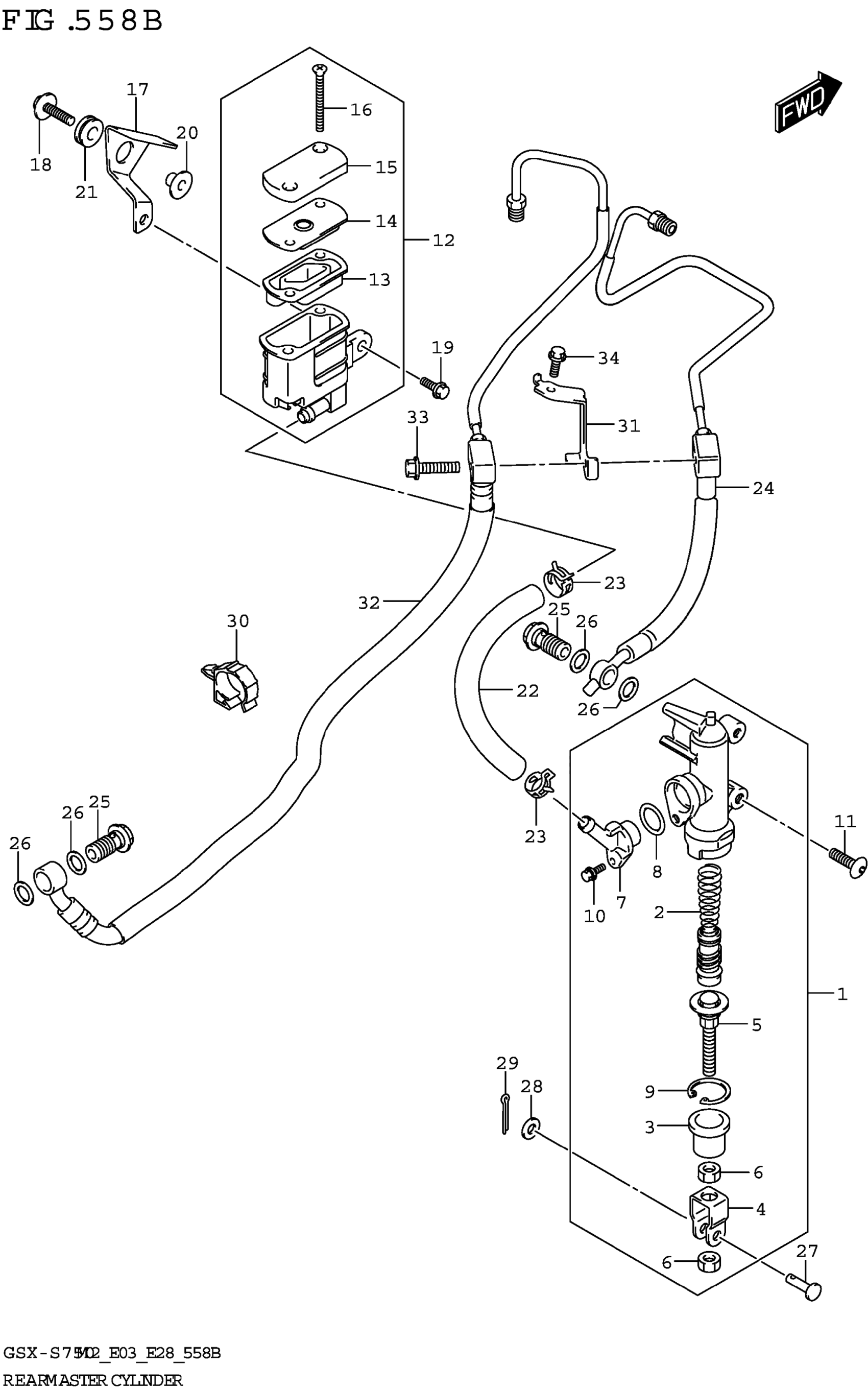

Suzuki GSX-S750AM2 (2022) REAR MASTER CYLINDER (GSX-S750A,GSX-S750ZA) Diagram

#

Description
Price

1

CYLINDER ASSY,REAR MASTER

69600-08J10

$151.00

2

.PISTON/CUP SET

69600-34810

$56.48

3

.BOOT

69691-04A00

$5.17

4

.YOKE

69692-47H00

$11.87

5

.PUSH ROD

69670-27A50

$40.03

6

.NUT

69693-47H00

$2.48

7

.CONNECTOR

69672-08J10

$8.17

8

.O-RING

69686-34200

$2.93

9

.CIRCLIP

69665-47H00

$5.02

10

.SCREW

02112-7412A

$2.12

11

SCREW (6X20)

09139-06028

$3.70

12

TANK ASSY,RESERVOIR

69740-18K00

$28.10

13

.DIAPHRAGM

69667-01H00

$6.30

14

.PLATE,DIAPHRAGM

69668-01H00

$5.98

15

.CAP

69669-18K00

$14.37

16

.SCREW

69689-01H00

$4.45

17

BRACKET, REAR RESERVOIR TANK

69750-13K00

$8.97

18

BOLT (6X25)

09116-06202

$3.49

19

BOLT

01547-0612A

$2.03

20

SPACER (6.2X8.4X6.9)

09180-06325

$3.79

21

CUSHION (8.4X18X6)

09320-08066

$8.24

22

HOSE,RR RESERVOIR TANK

69731-08J00

$18.80

23

CLIP (ID:12)

09401-12404

$2.34

24

HOSE, ASSY REAR BRAKE NO.1

69200-13K00

$60.32

25

UNION (10X1.25X22)

09360-10062

$6.43

26

WASHER (10X15X1.5)

09161-10009

$1.84

27

PIN (6X18.2)

09200-06068

$4.11

28

WASHER

08322-0106A

$1.84

29

PIN

04111-2015A

$1.49

30

CLAMP

09403-17306

$2.62

31

CLAMP, REAR BRAKE HOSE

69260-08J10

$8.05

32

HOSE ASSY,UNIT TO RR BK CLPR

69400-13K01

Unavailable

33

BOLT

01547-0635A

$2.30

34

BOLT

01550-0612A

$1.97
