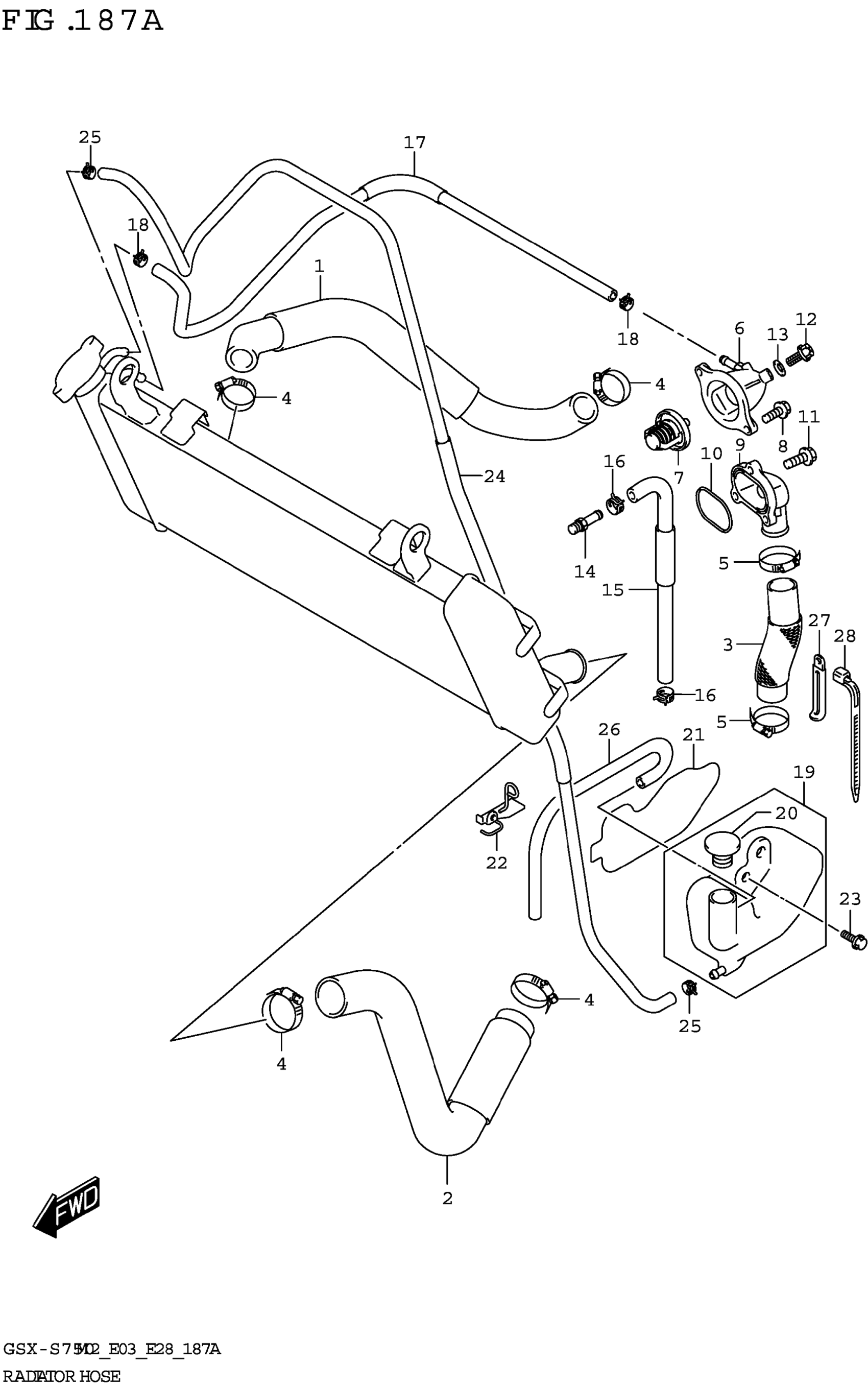

Suzuki GSX-S750AM2 (2022) RADIATOR HOSE Diagram

#

Description
Price

1

HOSE,RADIATOR INLET

17851-08J00

$51.05

2

HOSE, RADIATOR OUTLET

17852-08J20

$36.42

3

HOSE,CYLINDER INLET

17853-35F10

$33.30

4

CLAMP

09402-35501

$7.29

5

CLAMP

09402-35501

$7.29

6

COVER, THERMOSTAT

17661-35F00

$43.10

7

THERMOSTAT,WTR (82<-C)

17670-76G00

$36.79

8

BOLT

01547-0620A

$2.03

9

CONNECTOR,CYL WATER INLET

17861-08J00

Unavailable

10

O RING

17863-33E00

$4.03

11

BOLT

01547-0620A

$2.03

12

UNION BOLT,AIR VENT

17568-50F00

$4.76

13

GASKET (6.4X11.5X0.84)

09168-06026

$3.10

14

UNION

09362-09011

$8.28

15

HOSE,WATER BYPASS

17854-08J00

$29.73

16

CLIP

09401-12414

$3.26

17

HOSE, WATER AIR BLEED

17855-13K00

$18.95

18

CLIP (ID:10.5,H:8)

09401-10409

$2.26

19

TANK ASSY,RESERVOIR

17910-08J00

$70.13

20

.CAP,RESERVOIR TANK

17931-02FA0

$5.56

21

SHIELD,RSVR TANK HEAT

17912-08J00

$8.73

22

PLATE,RESERVOIR TANK CAP

17914-08J00

Unavailable

23

BOLT (6X12)

09111-06085

$4.54

24

HOSE, RESERVOIR TANK INLET

17981-13K10

$30.02

25

CLIP (ID:8.6)

09401-08411

$1.78

26

HOSE,RESERVOIR TANK INLET

17981-19F00

$14.70

27

CLAMP (L:45)

09404-06429

$1.83

28

CLAMP (L:190)

09407-19401

$3.05
