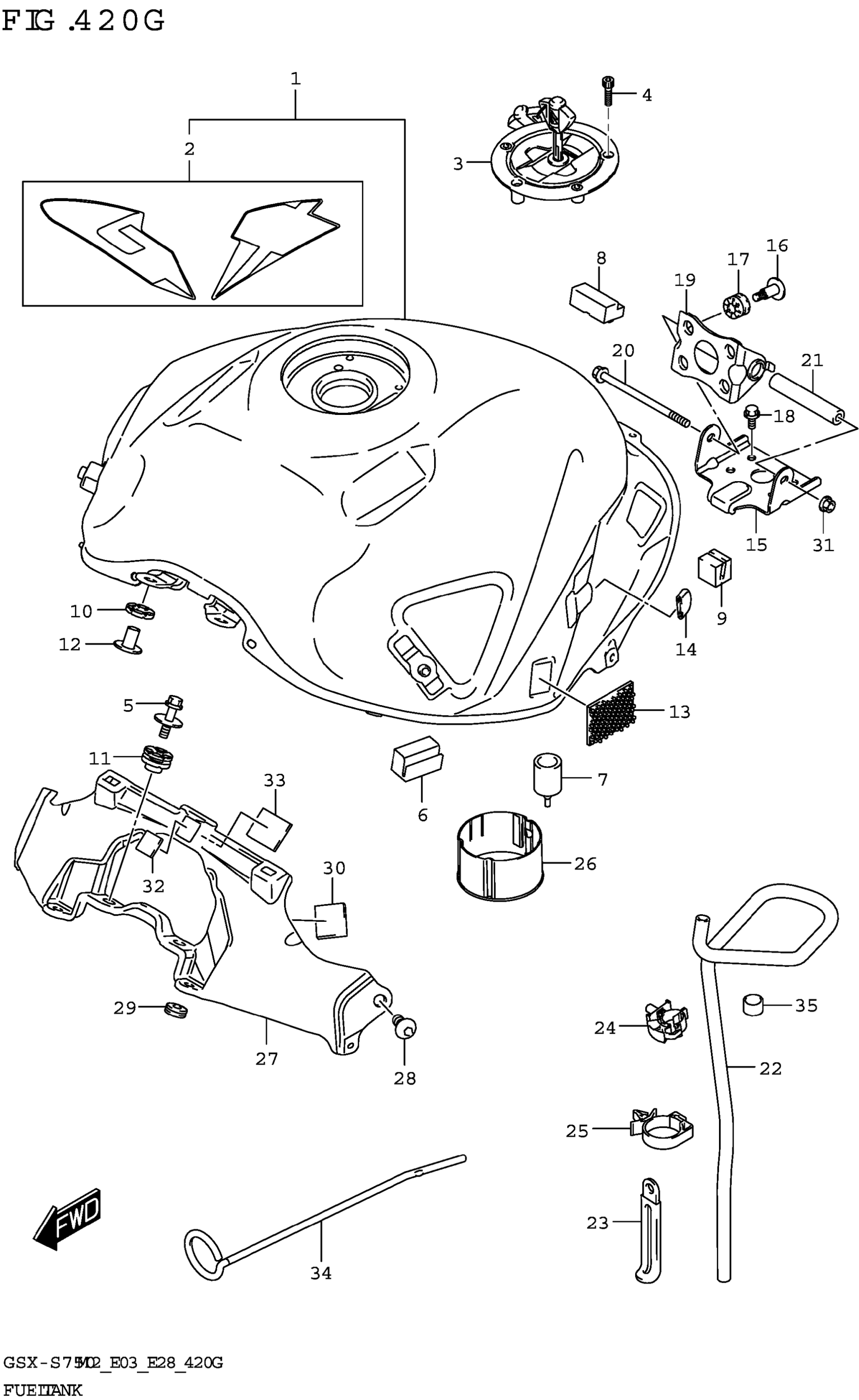

Suzuki GSX-S750AM2 (2022) FUEL TANK (GSX-S750Z,GSX-S750ZA:E33) Diagram

TANK ASSY,FUEL (BLACK) | BODY COLOR:KEL

44100-13K90-YVB

$1,139.28

TANK ASSY,FUEL (BLACK) | BODY COLOR:BD7

44100-13K90-6UX

$1,064.00

TANK ASSY,FUEL (BLACK) | BODY COLOR:B55

44100-13K90-44X

$1,064.00

.TAPE SET,FUEL TANK (BLUE,BLA | K) BODY COLOR:KEL

68110-13K20-KEL

$40.90

.TAPE SET,FUEL TANK (GRAY,BLA | K) BODY COLOR:BD7

68110-13K20-BD7

$34.66

.TAPE SET,FUEL TANK (BLACK,WH | TE) BODY COLOR:B55

68110-13K20-B1G

$40.90

CAP SET,FUEL TANK FILLER

44200-17820

$242.68

BOLT,FUEL TANK FILLER CAP

44244-11J00

$3.76

BOLT (6X30)

09116-06172

$2.50

CUSHION, FUEL TANK SIDE

44541-08J01

$6.15

CUSHION,FUEL TANK RR

44542-41G00

$7.04

CUSHION, FUEL TANK REAR

44543-13K00

$11.38

CUSHION, FUEL TANK REAR

44544-13K00

$11.38

CUSHION, FUEL TANK FR LWR

44511-13K00

$6.75

CUSHION, FUEL TANK FR UPR

44512-13K00

$16.70

SPACER,FUEL TANK FRONT

44512-17K00

$6.75

FASTENER (33X25X2.6)

44572-13G00

$10.13

CUSHION,FUEL TANK COVER SIDE

44542-08J01

$4.12

BRACKET, FUEL TANK RR NO.2

44551-13K00

Unavailable

SCREW (6X24)

09139-06203

Unavailable

CUSHION (8X18X16)

09320-08089

Unavailable

BOLT

01550-0612A

$1.97

BRACKET, FUEL TANK REAR

44530-04K00

Unavailable

BOLT (6X100)

09106-06135

$6.02

SPACER,FUEL TANK RR

44561-18G00

$15.52

HOSE, FUEL TANK DRAIN

44423-13K00

$30.60

CLAMP (L:80)

09404-06030

Unavailable

CLAMP

09403-18307

$3.38

CLAMP

09403-18409

$2.40

VESSEL,FUEL TANK INNER

44121-17K01

$18.47

BRACKET, FUEL TANK FRONT

44521-13K00

$49.77

BOLT (6X16)

09113-06013

$2.43

CUSHION (6X18X6)

09320-06504

$4.47

CUSHION (20X30X2)

44556-33H00

$7.01

NUT

08319-3106A

$2.01

.CUSHION (15X15X1)

94429-20K00

$1.73

FASTENER (33X25X2.6)

44572-13G00

$10.13

STAY,FUEL TANK | OPT

44574-16G00

$30.17

HOSE (11X15X10)

09352-11154-010

Unavailable
