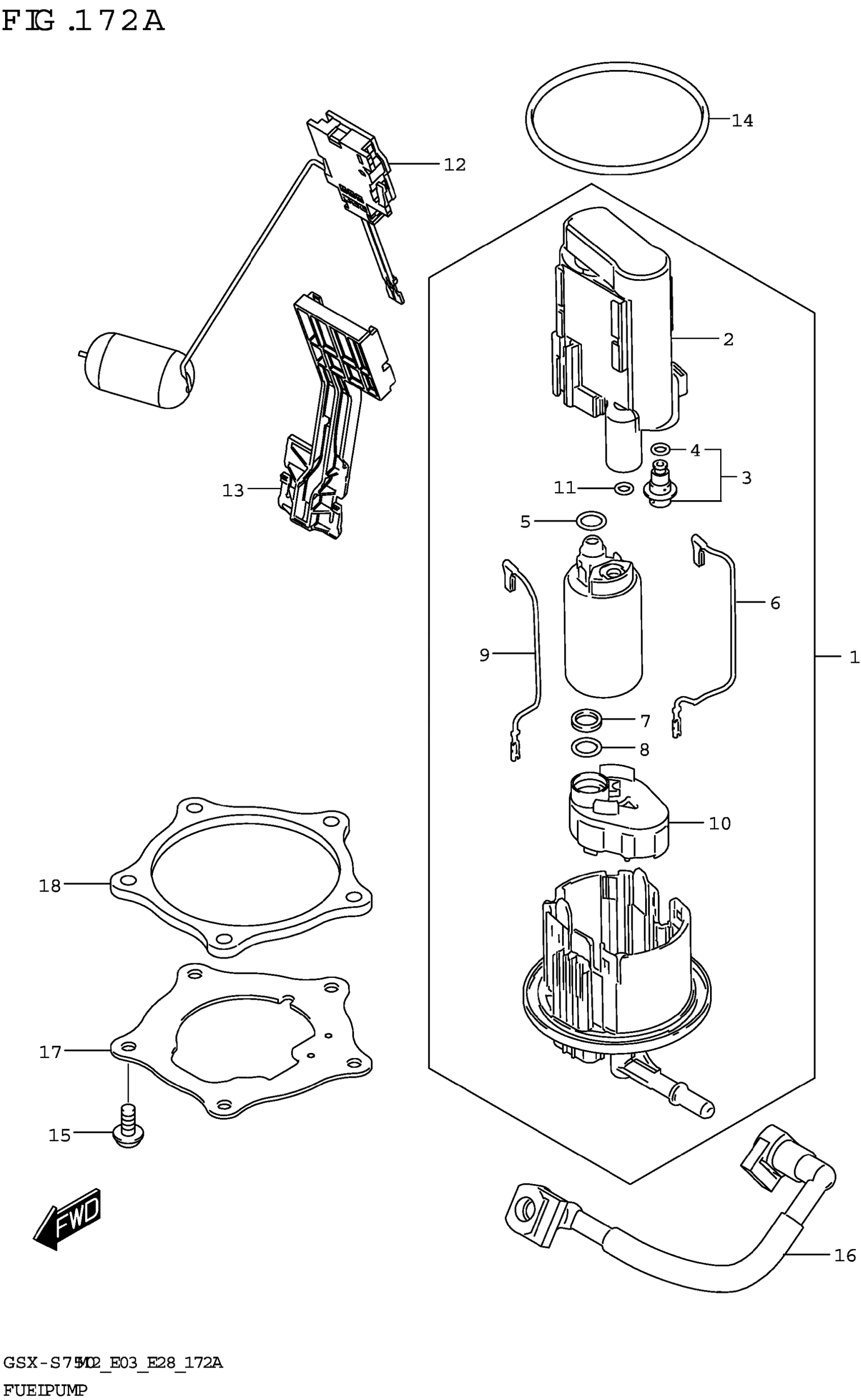

Find the part on the Fuel Pump diagram for your 2022 Suzuki GSX-S750AM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Suzuki GSX-S750AM2 Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY,FUEL

15100-17K00

1

$669.65

In stock

2

.FILTER

15310-17K00

1

$77.89

In stock

3

.REGULATOR

15610-17K00

1
Out of stock

4

..O-RING

15113-48H00

1

$19.15

In stock

5

.O-RING

15113-05H00

1

$20.48

In stock

6

.WIRE,EARTH

15114-17K00

1

$45.18

In stock

7

.COLLAR

15116-17K00

1

$20.62

In stock

8

.O-RING

15113-17K00

1

$35.95

In stock

9

.WIRE,LEAD

15115-17K00

1

$45.18

In stock

10

.STRAINER

15420-17K00

1

$101.46

In stock

11

.O-RING

15113-35F00

1

$8.88

In stock

12

1

$116.95

In stock

13

ATTACHMENT, FUEL LEVEL

34815-13K00

1
Out of stock

14

O-RING,FUEL PUMP

15201-07L00

1

$20.93

In stock

15

BOLT

07120-0616A

5
Out of stock

16

HOSE, FUEL

15810-13K00

1
Out of stock

17

1

$10.02

In stock

18

PLATE,FUEL PUMP INNER

15122-17K00

1

$49.37

In stock
