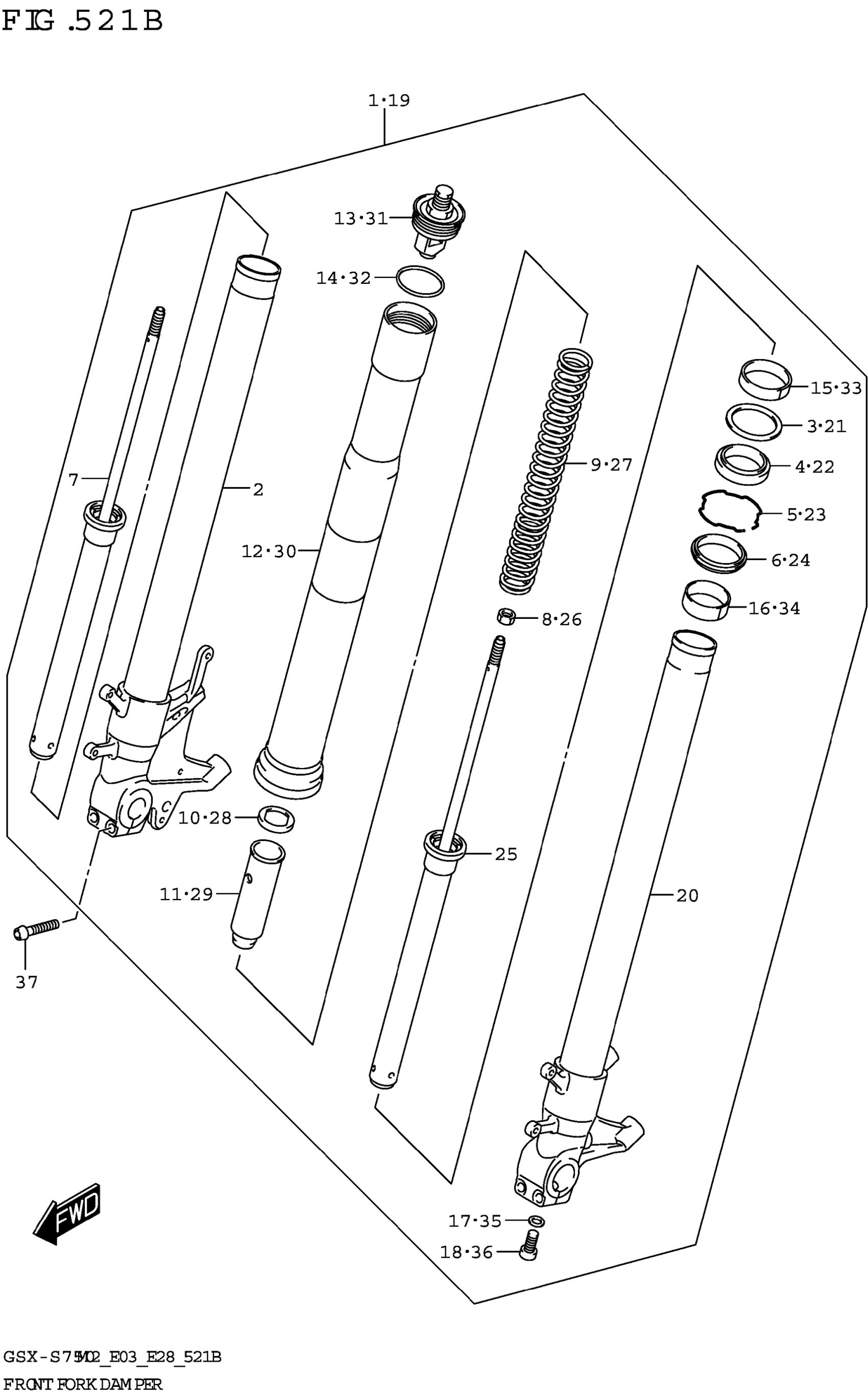

Suzuki GSX-S750AM2 (2022) FRONT FORK DAMPER (GSX-S750Z,GSX-S750ZA) Diagram

#

Description
Price

1

.DAMPER ASSY,FRONT FORK RH

51103-13K01

$1,145.43

2

.TUBE,INNER RH

51110-13K01

$578.70

3

.WASHER

51158-05A00

$5.83

4

.SEAL,OIL

51153-10G50

$20.70

5

.RING,OIL SEAL STOPPER

51156-49440

$5.05

6

.SEAL,DUST

51173-14F00

$23.07

7

.CYLINDER RH

51146-13K00

$245.97

8

.NUT, ROD

51352-13A60

$3.03

9

.SPRING

51171-13K00

Unavailable

10

.WASHER

51158-40F30

$10.42

11

.SPACER, SPRING

51176-40F30

$26.38

12

..TUBE, OUTER

51131-13K00

$445.71

13

..CAP

51351-13K00

Unavailable

14

.O RING

51117-39G20

$5.84

15

.BUSH, GUIDE

51152-13K00

$17.38

16

.PISTON

51121-26E10

$30.22

17

.GASKET

51148-41310

$2.26

18

.BOLT

51147-05H00

$5.40

19

.DAMPER ASSY,FRONT FORK LH

51104-13K01

$1,145.43

20

.TUBE,INNER LH

51120-13K01

$578.70

21

.WASHER

51158-05A00

$5.83

22

.SEAL,OIL

51153-10G50

$20.70

23

.RING,OIL SEAL STOPPER

51156-49440

$5.05

24

.SEAL,DUST

51173-14F00

$23.07

25

.CYLINDER LH

51156-13K00

$202.42

26

.NUT, ROD

51352-13A60

$3.03

27

.SPRING

51171-13K00

Unavailable

28

.WASHER

51158-40F30

$10.42

29

.SPACER, SPRING

51176-40F30

$26.38

30

..TUBE, OUTER

51131-13K00

$445.71

31

..CAP

51351-13K00

Unavailable

32

.O RING

51117-39G20

$5.84

33

.BUSH, GUIDE

51152-13K00

$17.38

34

.PISTON

51121-26E10

$30.22

35

.GASKET

51148-41310

$2.26

36

.BOLT

51147-05H00

$5.40

37

BOLT

51166-24F60

$5.58
