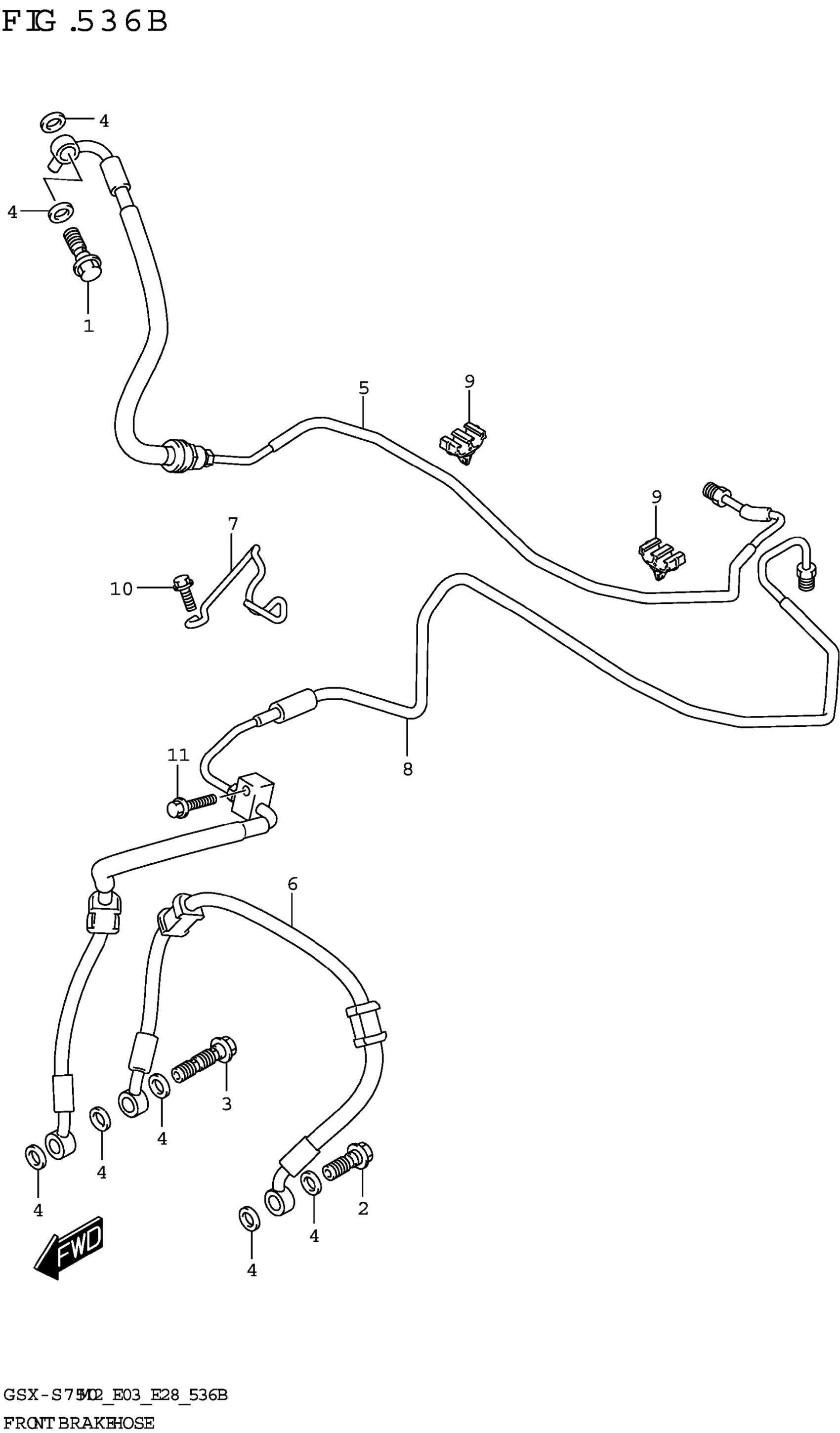

Suzuki GSX-S750AM2 (2022) FRONT BRAKE HOSE (GSX-S750A,GSX-S750ZA) Diagram

#

Description
Price

1

UNION This part replaces 09360-10042.

09360-10062

$6.43

2

UNION This part replaces 09360-10042.

09360-10062

$6.43

3

UNION

09360-10069

$6.20

4

WASHER (10X15X1.5)

09161-10009

$1.84

5

HOSE ASSY, FRONT BRAKE NO.1

59200-13K00

$132.83

6

HOSE, FRONT BRAKE NO.2

59240-13K01

Unavailable

7

CLAMP,FR BRAKE HOSE

59251-08J00

$13.93

8

HOSE ASSY, FR BRAKE NO.2

59400-13K01

$155.50

9

CLAMP

09403-07344

$2.50

10

BOLT

01547-0616B

$2.45

11

..BOLT

01547-0620B

$2.45
