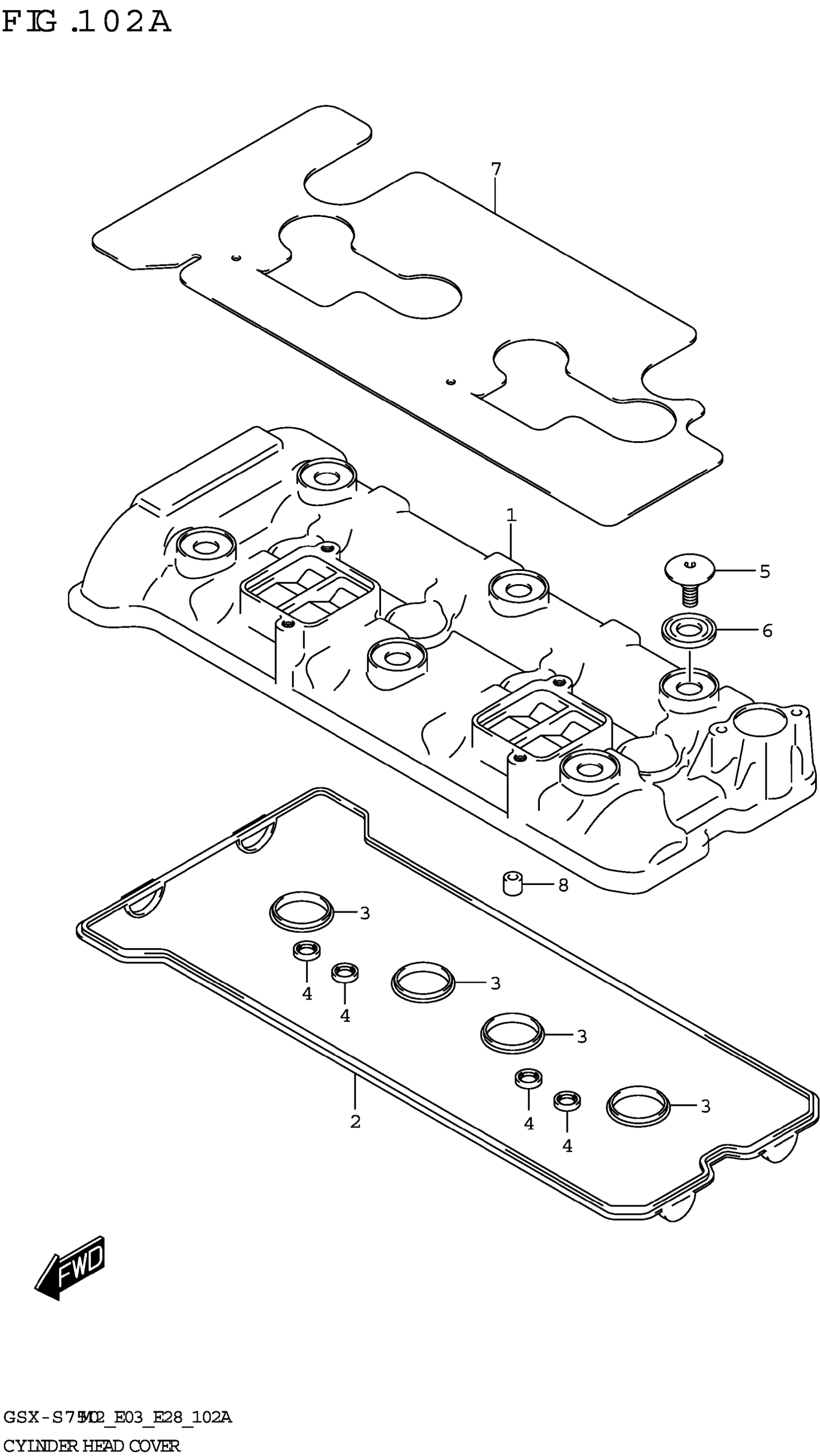

Suzuki GSX-S750AM2 (2022) CYLINDER HEAD COVER Diagram

#

Description

Price

1

COVER, CYLINDER HEAD

11171-04K10

Unavailable

2

.GASKET, CYL HEAD COVER NO.1

11173-35F00

$45.38

3

.GASKET,CYL HEAD COVER NO.2

11178-33E00

$5.67

4

.GASKET,2ND AIR PASSAGE

11182-35F10

$4.11

5

BOLT (7X17.5)

09106-07021

$4.07

6

WASHER,CYL HEAD COVER (10.6X2

11191-27E00

$3.72

7

SHIELD,CYLINDER HEAD COVER

11179-08J00

Unavailable

8

PIN (8.2X10X13)

09206-10016

$7.36
