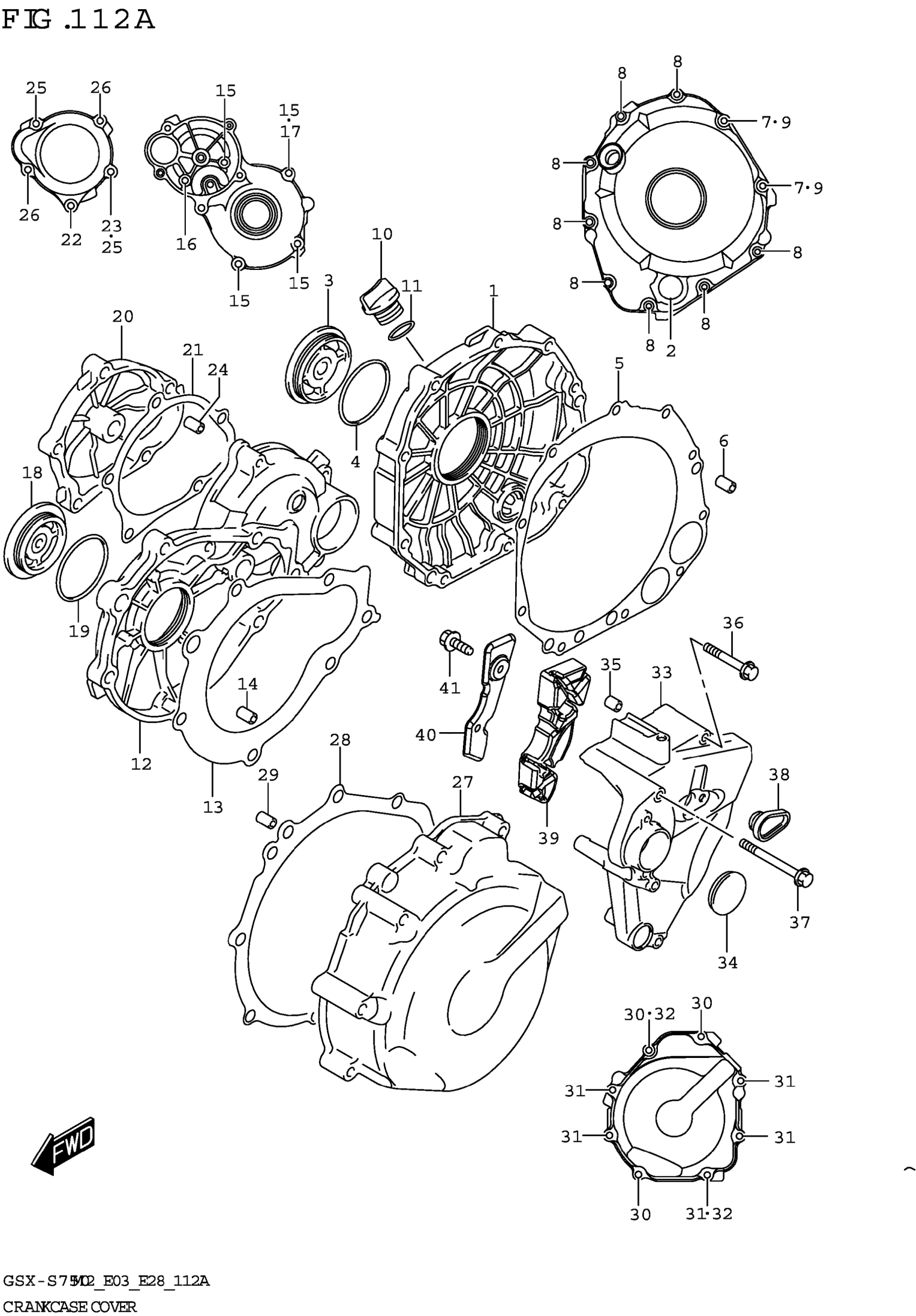

Suzuki GSX-S750AM2 (2022) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11340-44G10

$258.18

2

.LENS,OIL LEVEL CHECK

11971-33210

$18.20

3

CAP,CLUTCH RELEASE ADJUST

11342-41G10

$25.03

4

O-RING (D:2.4,ID:52.6)

31156-17E00

$4.60

5

.GASKET, CLUTCH COVER

11482-40F10

$15.69

6

PIN

04211-09189

$1.65

7

GASKET (5.8X13X1.2)

09168-06023

$2.35

8

BOLT (6X30)

09103-06529

$1.96

9

BOLT (6X40)

09103-06531

$2.30

10

PLUG,ENGINE OIL FILLER

11971-25D00

$5.11

11

O-RING (D:3.1,ID:16.8)

09280-17003

$1.65

12

COVER,STARTER CLUTCH

11381-35F10

$258.32

13

.GASKET, STARTER CLUTCH COVER

11491-33E02

$8.73

14

PIN (8.5X18X2.3)

04211-09149

$1.65

15

BOLT (6X25)

09103-06528

$1.91

16

BOLT (L:35)

09103-06530

$2.10

17

GASKET (5.8X13X1.2)

09168-06023

$2.35

18

PLUG (36X10)

09259-36021

$13.80

19

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.23

20

CAP,STRAINER IDLE GEAR

11382-33E10

$75.85

21

.GASKET,START IDLE GR CAP

11492-33E00

$7.22

22

BOLT (6X55)

09103-06534

$2.33

23

GASKET (5.8X13X1.2)

09168-06023

$2.35

24

PIN (8.5X18X2.3)

04211-09149

$1.65

25

BOLT (6X25)

09103-06528

$1.91

26

BOLT (L:35)

09103-06530

$2.10

27

COVER,MAGNETO

11351-18G20

$144.40

28

.GASKET, MAGNETO COVER

11483-18G00

$11.07

29

PIN (8.5X18X2.3)

04211-09149

$1.65

30

BOLT (6X30)

09103-06529

$1.96

31

BOLT (L:45)

09103-06532

$2.18

32

GASKET (5.8X13X1.2)

09168-06023

$2.35

33

COVER, ENGINE SPROCKET

11361-08J10

$122.48

34

CAP (OD:36)

09250-30003

$3.89

35

PIN

04211-09129

$1.65

36

BOLT (L:65)

09103-06536

$2.95

37

BOLT (6X95)

09103-06541

$3.65

38

CAP,ENG SPROCKET COVER HOLE

11362-04K01

Unavailable

39

DAMPER, ENGINE SPROCKET COVER

11362-13K00

$18.47

40

PLATE, ENGINE SPROCKET COVER

11363-13K00

$9.87

41

BOLT (6X10)

09103-06188

$2.90
