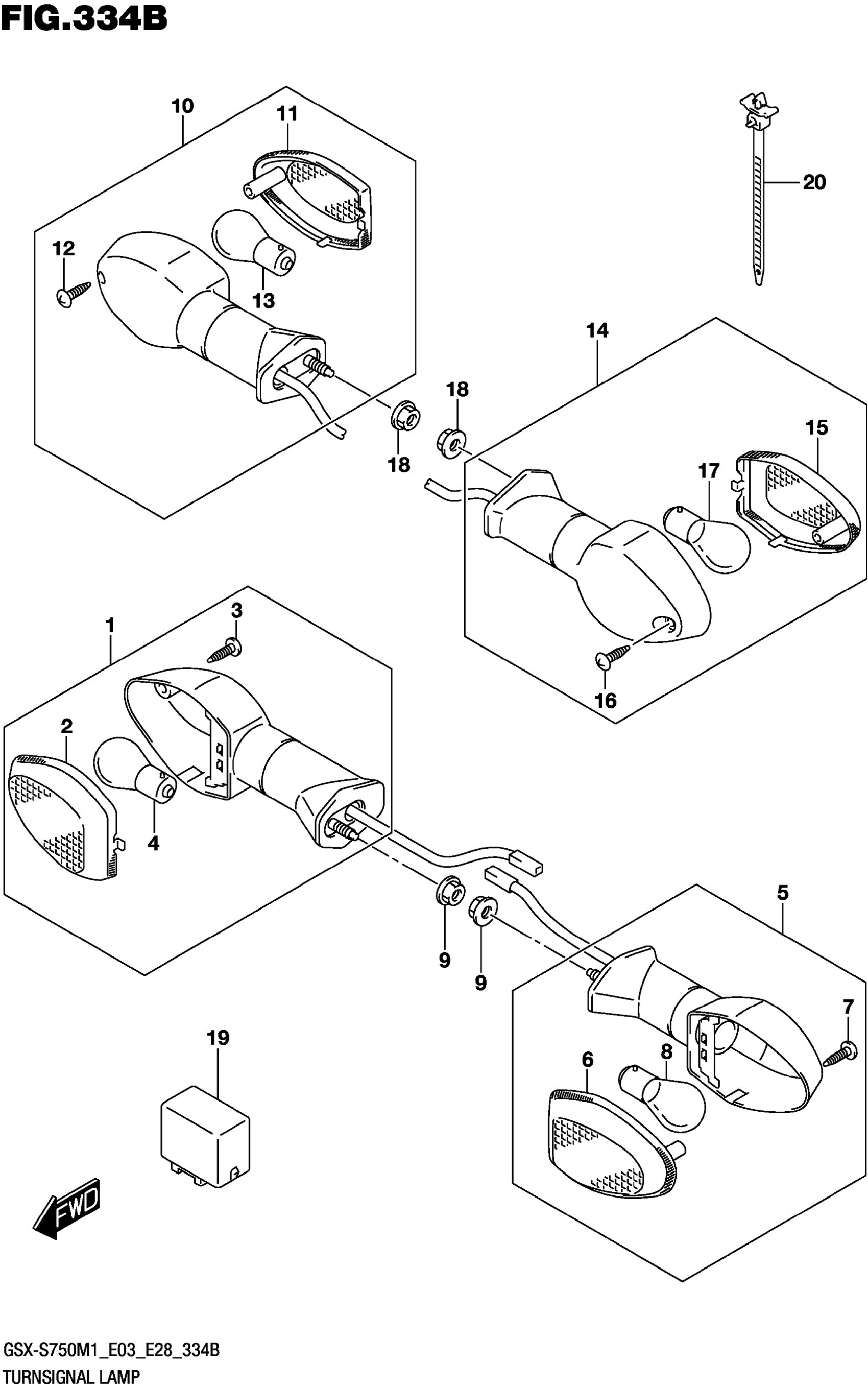

Suzuki GSX-S750AM1 (2021) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY,FR TURNSIGNAL RH

35601-08J01

$107.67

2

.LENS,TURNSIGNAL

35612-08J01

$13.82

3

.SCREW

03211-0414B

$1.93

4

.BULB (12V21W)

09471-12045

$2.95

5

LAMP ASSY,FR TURNSIGNAL LH

35602-08J01

$105.63

6

.LENS,TURNSIGNAL

35632-08J01

$13.65

7

.SCREW

03211-0414B

$1.93

8

.BULB (12V21W)

09471-12045

$2.95

9

NUT

08316-1005A

$2.19

10

LAMP ASSY,REAR TURNSIGNAL RH

35603-08J20

$105.93

11

.LENS,TURNSIGNAL

35632-08J01

$13.65

12

.SCREW

03211-0414B

$1.93

13

.BULB (12V21W)

09471-12045

$2.95

14

LAMP ASSY,REAR TURNSIGNAL LH

35604-08J20

$103.97

15

.LENS,TURNSIGNAL

35612-08J01

$13.82

16

.SCREW

03211-0414B

$1.93

17

.BULB (12V21W)

09471-12045

$2.95

18

NUT

08316-1005A

$2.19

19

RELAY ASSY,TURNSIGNAL LAMP

38610-03F01

$81.99

20

CLAMP (L:90)

09407-11402

$1.81
