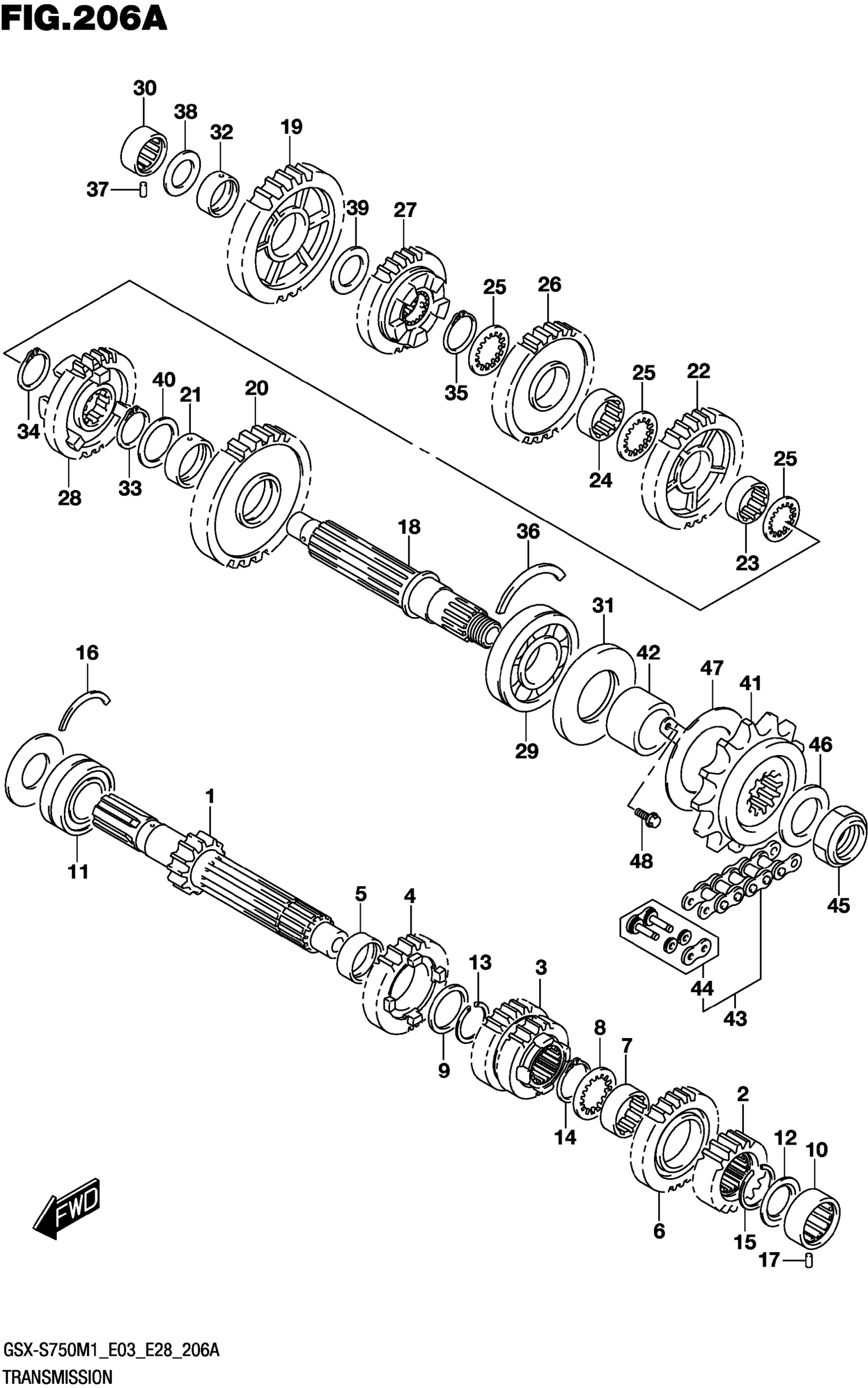

Suzuki GSX-S750AM1 (2021) TRANSMISSION Diagram

#

Description
Price

1

SHAFT, COUNTER (NT:14)

24120-35F30

Unavailable

2

GEAR,2ND DRIVE (NT:19)

24221-35F00

$117.48

3

GEAR,3RD & 4TH DRIVE

24231-35F20

$142.07

4

GEAR, 5TH DRIVE (NT:23)

24251-35F30

$121.42

5

BUSH,5TH DRIVE GEAR

24252-35F00

$24.72

6

GEAR, 6TH DRIVE (NT:27)

24261-35F30

$121.42

7

BUSH,6TH DRIVE GEAR

24262-35F10

$28.70

8

LOCK WASHER (27X36X2.5)

09167-27003

$6.80

9

SHIM (27X36X2.5)

09181-27014

$6.32

10

BEARING (20X34X13.5)

09263-20087

$42.65

11

BEARING (25X52X20.6)

09267-25013

$106.33

12

SEAL,OIL (20X31.2X2.7)

09285-20006

$6.51

13

CIRCLIP

09380-27006

$2.73

14

CIRCLIP

09380-27006

$2.73

15

CIRCLIP

09380-27004

$3.70

16

C-RING

09390-58001

$3.42

17

PIN (6X10)

09261-06003

$1.49

18

SHAFT, DRIVE

24131-35F30

Unavailable

19

GEAR,1ST DRIVEN (NT:39)

24311-35F20

$160.78

20

GEAR,2ND DRIVEN (NT:39)

24321-35F11

$135.95

21

BUSH,2ND DRIVEN GEAR

24322-35F00

$20.63

22

GEAR,3RD DRIVEN (NT:37)

24331-35F10

$166.88

23

BUSH,3RD DRIVEN GEAR

24332-35F00

$28.62

24

BUSH,3RD DRIVEN GEAR

24332-35F00

$28.62

25

WASHER,3RD & 4TH DRIVEN

24333-02F00

$4.99

26

GEAR,4TH DRIVEN (NT:29)

24341-35F10

$171.00

27

GEAR,5TH DRIVEN (NT:30)

24351-35F10

$166.88

28

GEAR, 6TH DRIVEN (NT:31)

24361-35F30

Unavailable

29

BEARING (28X70X18)

09262-28025

$150.62

30

BEARING (20X34X13.5)

09263-20087

$42.65

31

OIL SEAL (34.8X70X6)

09283-36008

$21.28

32

BUSH (22X26X9)

09300-22008

$14.82

33

CIRCLIP

09380-27006

$2.73

34

CIRCLIP

09380-27006

$2.73

35

CIRCLIP

09380-27006

$2.73

36

C-RING (67.6X75X2)

09390-70001

$9.77

37

PIN (6X10)

09261-06003

$1.49

38

SHIM (20X34X1)

09181-20251

$2.79

39

SHIM (22X34X1)

09181-22223

$3.12

40

WASHER (27X36X1.0)

09160-27008

$3.68

41

SPROCKET,ENGINE

27510-20A22

$78.92

42

SPACER,ENGINE SPROCKET

27531-35F01

$30.85

43

CHAIN ASSY,DRIVE (RK 525SMOZ8

27600-06G40-114

$201.02

44

.JOINT SET,DRIVE CHAIN

27620-06G40

$21.10

45

NUT

09159-20004

$15.67

46

WASHER (25X41X3)

09160-25009

$5.36

47

RETAINER, DRIVE SHAFT OIL SEA

24751-04K00

$7.82

48

BOLT (6X12)

09103-06236

$2.69
