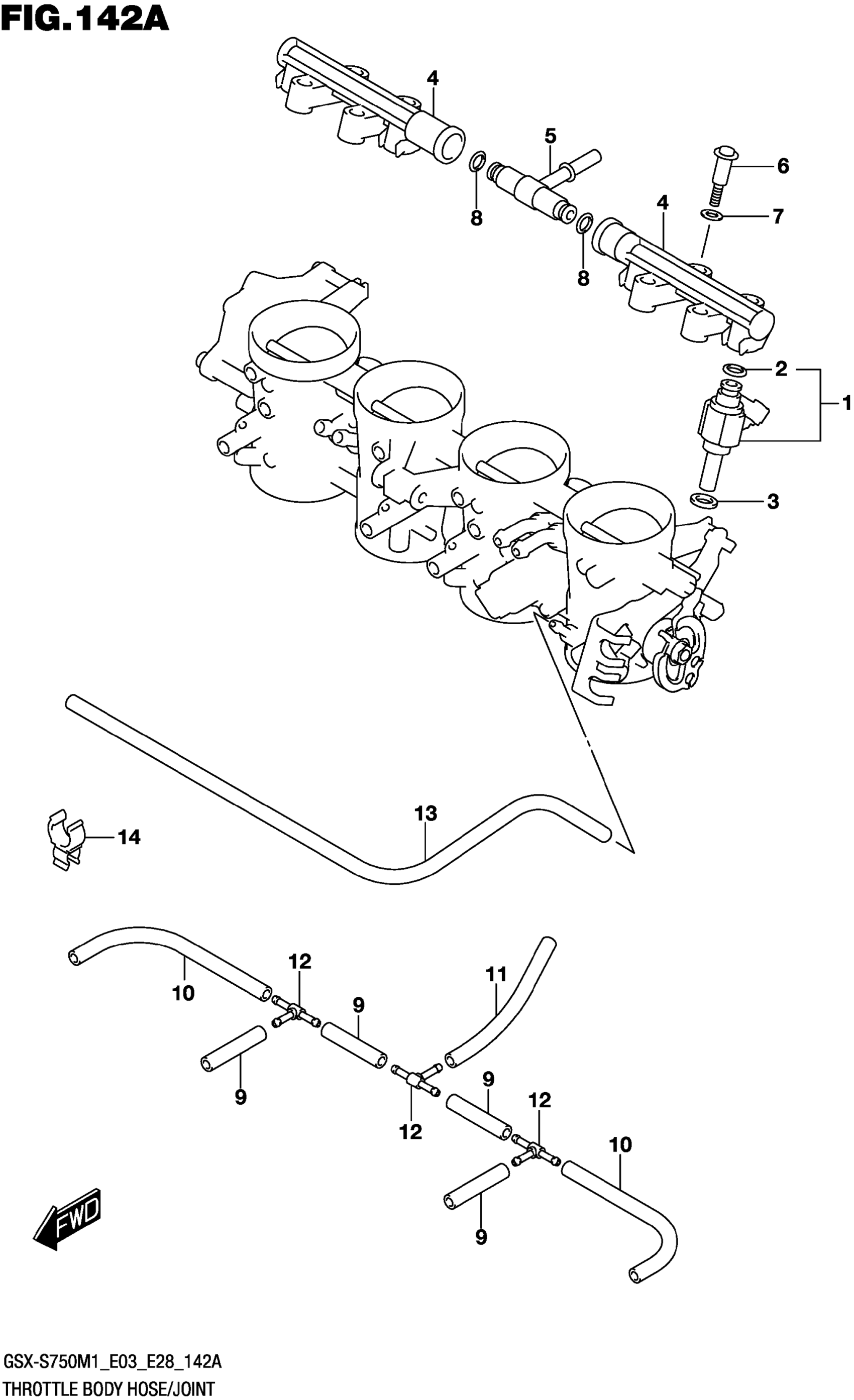

Suzuki GSX-S750AM1 (2021) THROTTLE BODY HOSE/JOINT (E03,E28) Diagram

#

Description
Price

1

INJECTOR ASSY

15710-04K00

$271.53

2

.O-RING

15717-58B00

$9.95

3

SEAL

15722-14J00

$11.36

4

NIPPLE ASSY

13473-04K00

Unavailable

5

PIPE,DELIVERY

13473-08J00

Unavailable

6

SCREW

13601-29G00

$3.43

7

PACKING

13602-29G01

$2.43

8

O-RING

15721-08J00

$10.52

9

HOSE (7.4X3.2X35)

13681-39F00-035

Unavailable

10

HOSE (7.4X3.2X100)

13681-39F00-100

Unavailable

11

.HOSE (3X7X600) This part replaces 09355-30705-600.

09355-30001-600

$8.56

12

3WAY,VACUUM HOSE

13685-02FA0

$7.05

13

HOSE This part replaces 13683-13K20.

13683-13K21

$10.83

14

CLAMP

09408-00309

Unavailable
