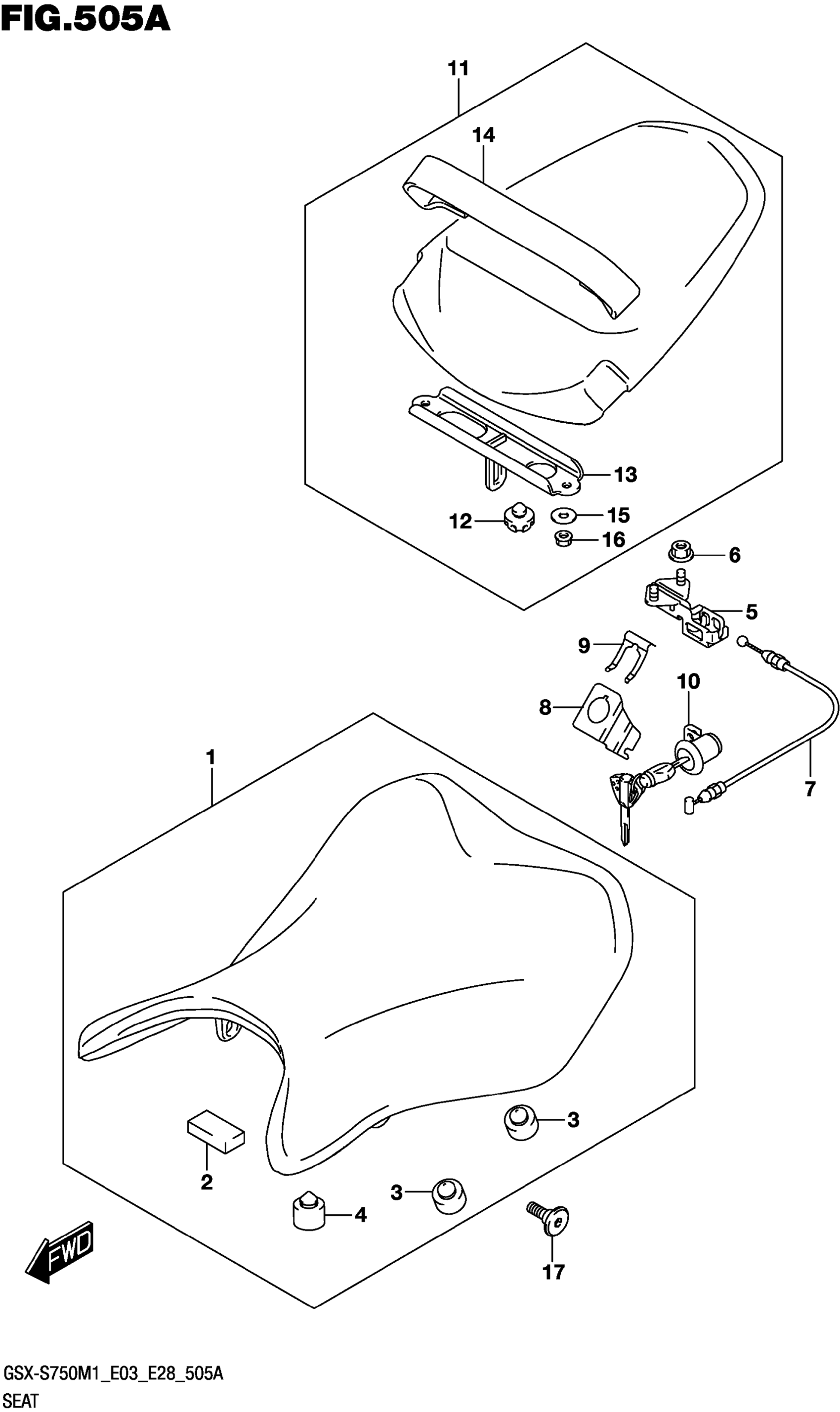

Suzuki GSX-S750AM1 (2021) SEAT Diagram

#

Description
Price

1

SEAT ASSY (BLACK)

45100-13K02-DW2

$214.73

2

.CUSHION

45149-37H00

$6.88

3

.CUSHION

09321-10033

$6.20

4

.CUSHION

09321-10039

$5.35

5

BRACKET,STRIKER SUPPORT

45220-04K20

$31.88

6

NUT (6X12)

08316-1006A

$2.19

7

CABLE, SEAT LOCK

45280-13K00

$11.17

8

GUIDE,SEAT LOCK CABLE

45288-14F00

$5.36

9

PLATE,SEAT LOCK ASSY

45289-11F00

$6.20

10

LOCK SET,SEAT

95700-14810

$107.30

11

SEAT ASSY,PILLION (BLACK)

45300-13K01-P3H

$243.82

12

.CUSHION

45148-20G90

$5.55

13

.STRIKER,SEAT LOCK

45290-17K00

$38.82

14

.BAND,PILLION SEAT GRIP (BLAC | )

45380-13K01-P3H

Unavailable

15

.WASHER (6.5X16X1)

09160-06129

$2.30

16

NUT

08316-1006B

$2.50

17

BOLT,SEAT (6X20)

45241-17K00

$3.35
